Diagnosis And Testing - Starting System

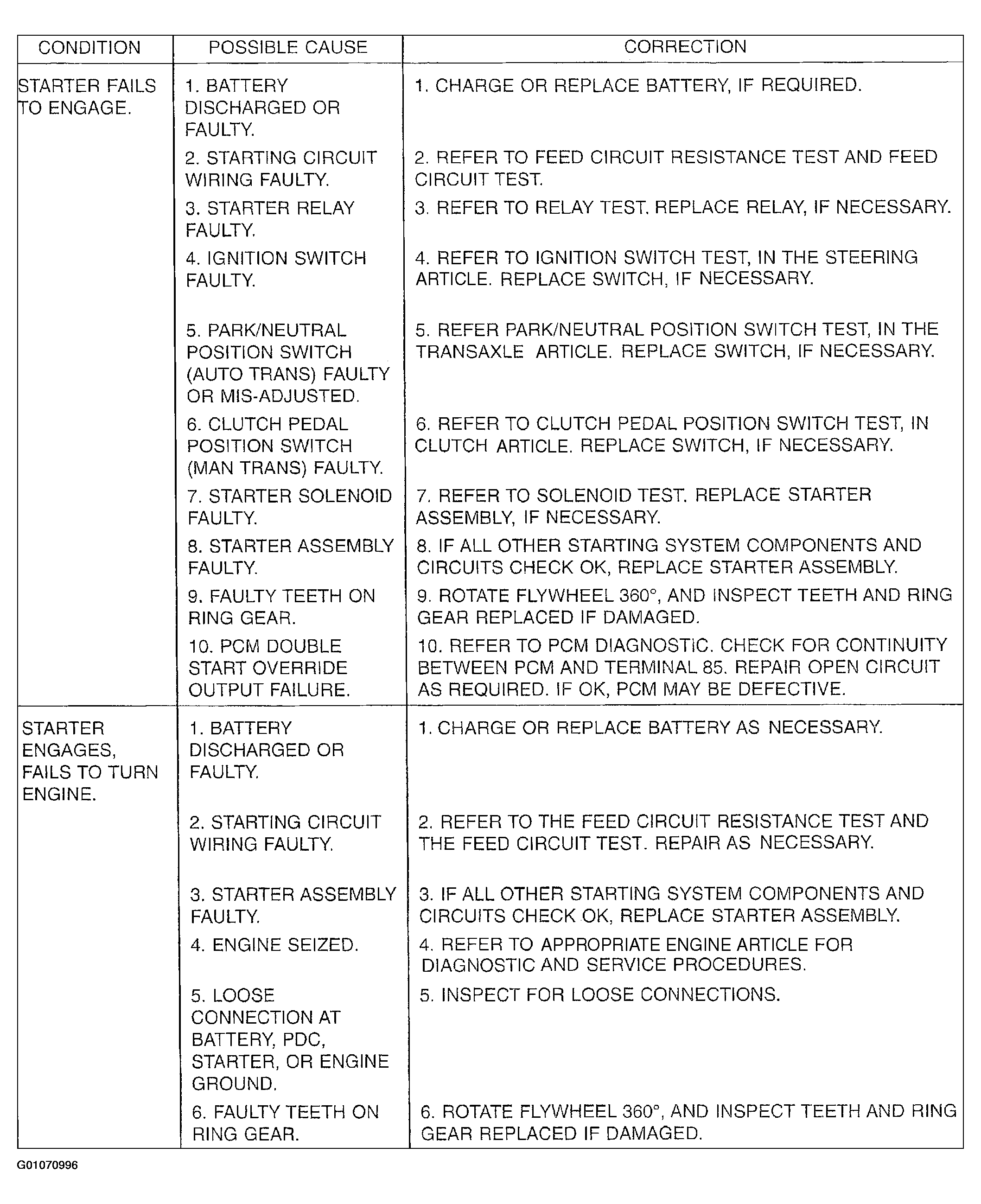

Fig 1: Diagnosing Starting System (1 Of 2)

G01070996

Courtesy of DAIMLERCHRYSLER CORP.

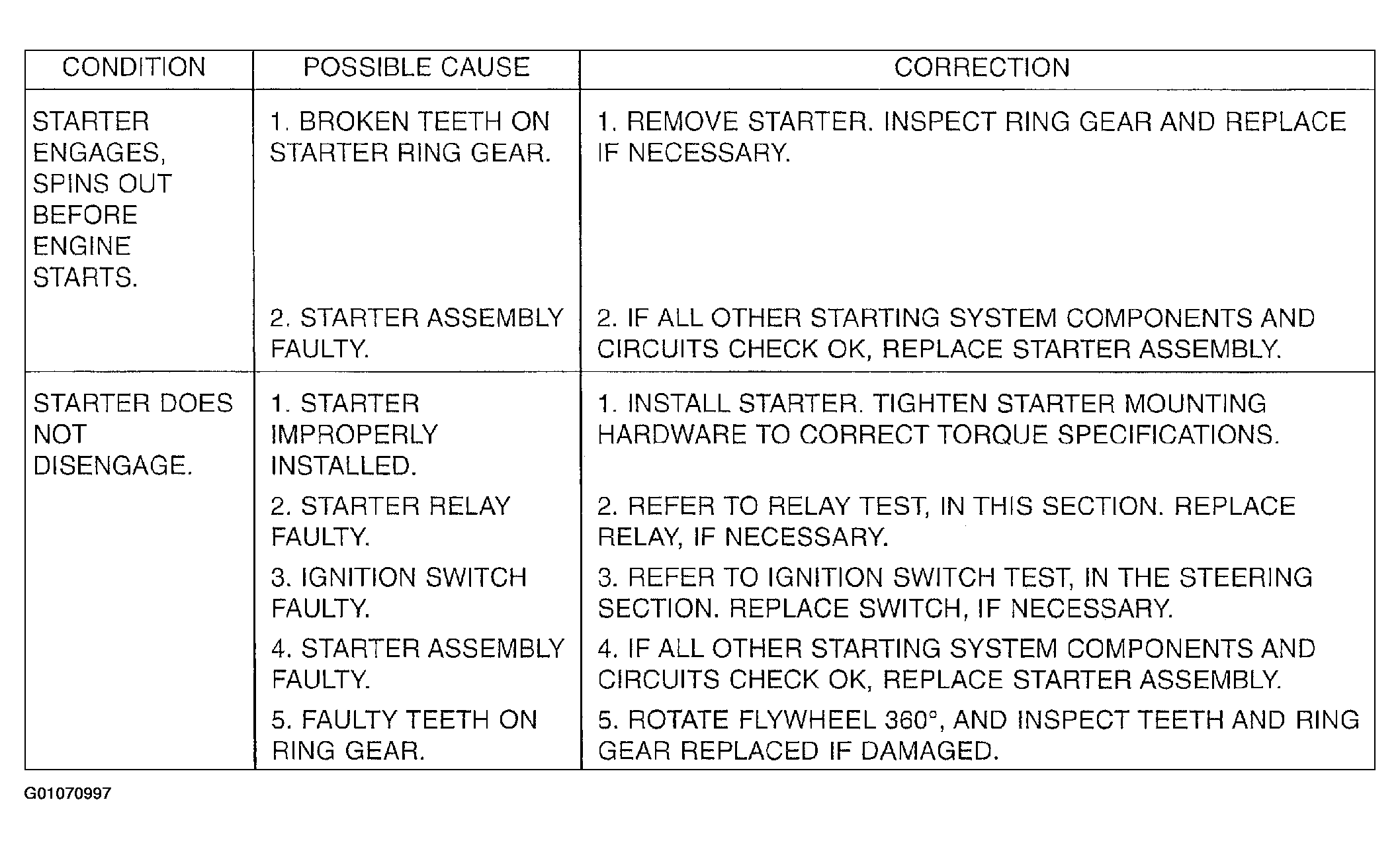

Fig 2: Diagnosing Starting System (2 Of 2)

G01070997

Courtesy of DAIMLERCHRYSLER CORP.
