Slave Cylinder: Description

The clutch slave cylinder is fastened to transaxle bellhousing (Fig 1 ), and consists of a hydraulic piston and cylinder, seal, return spring, and integral fluid damper (if equipped) and line (Figure ).

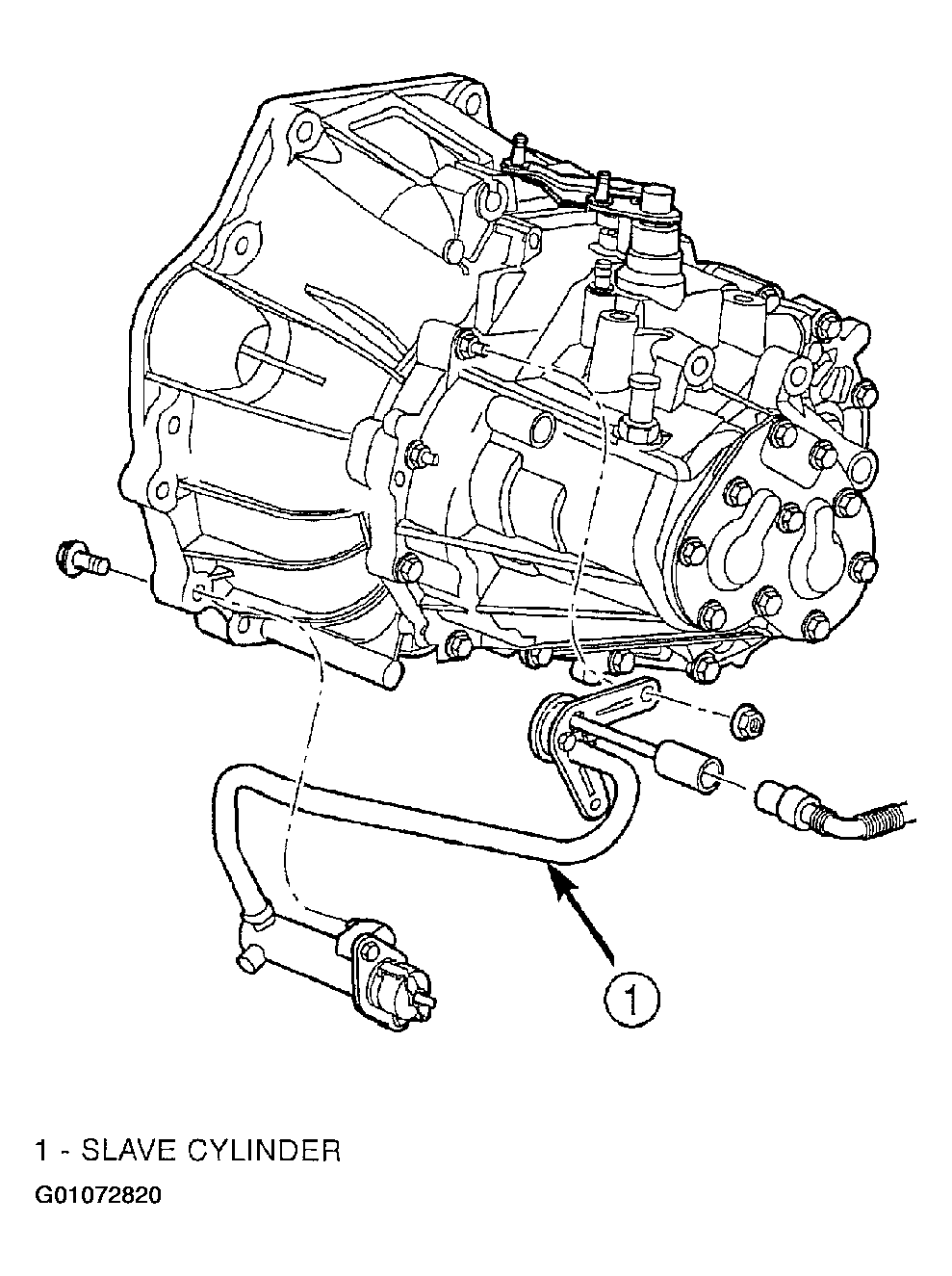

Fig 1: Identifying Slave Cylinder Mounting

Courtesy of DAIMLERCHRYSLER CORP.
