Clutch Interlock/UPSTOP Switch: Description
NOTE:
Depending on vehicle build date, some
2.4L equipped vehicles will not have the clutch pedal upstop switch included in the switch assembly. These vehicles will only utilize the starter inhibit (interlock) feature.

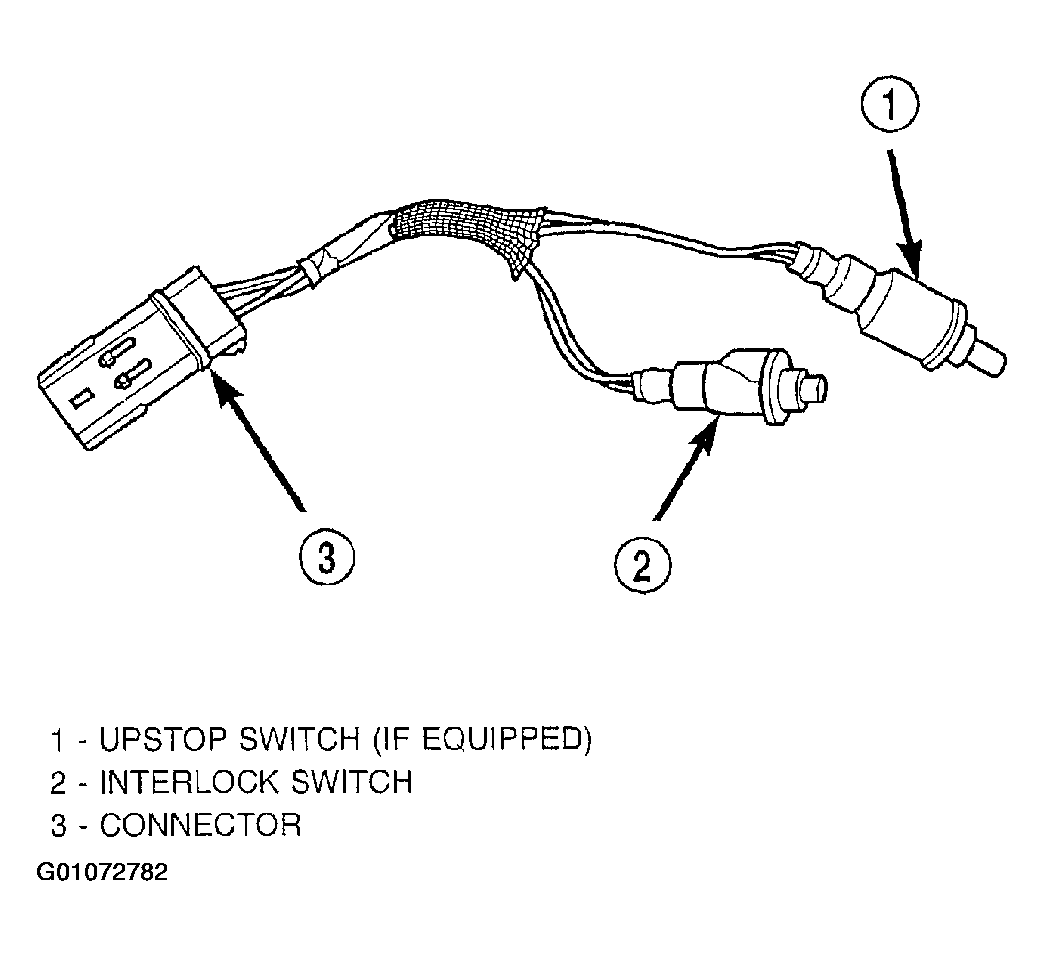

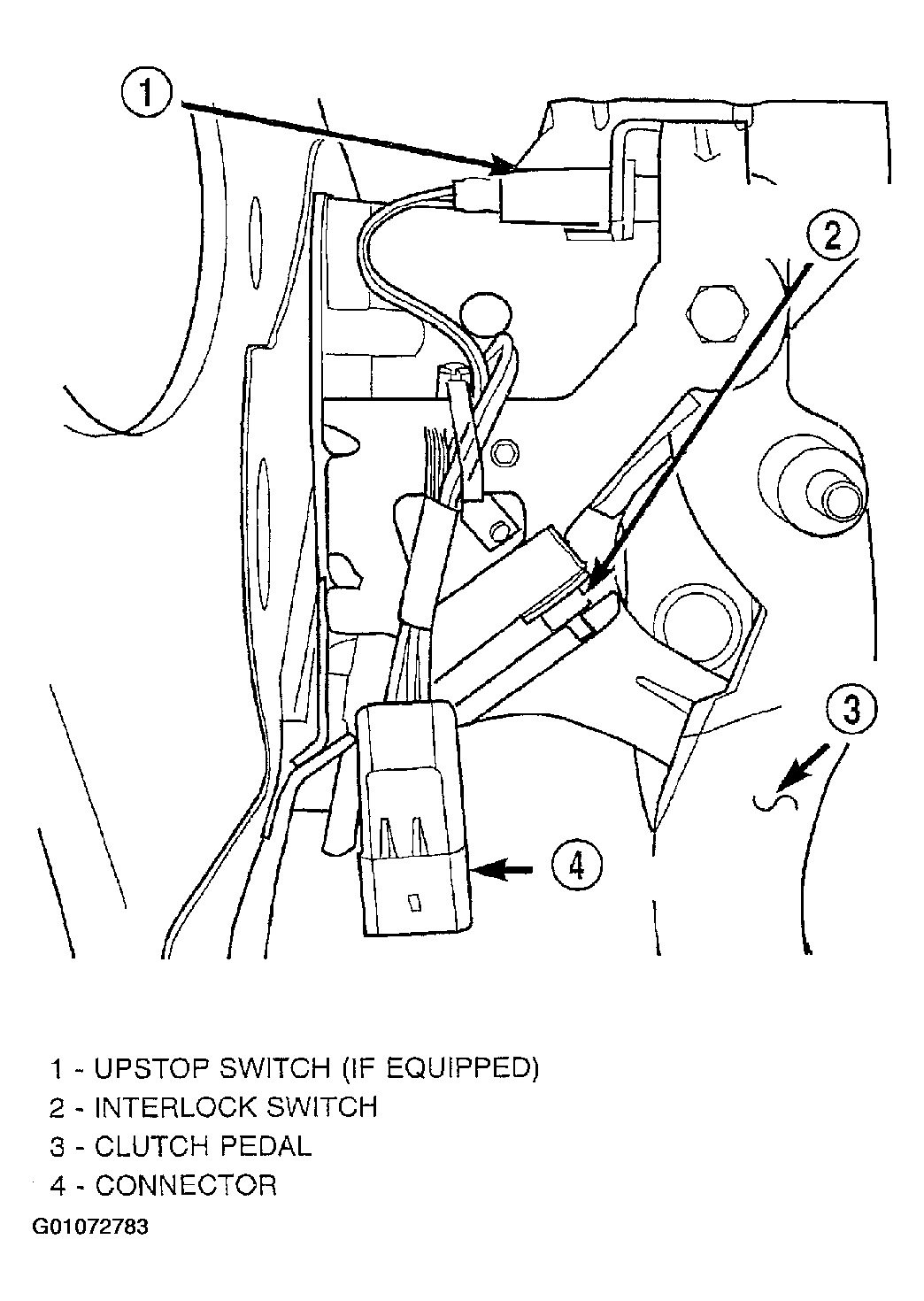

The clutch interlock/upstop switch is an assembly consisting of two switches: an engine starter inhibit switch (interlock) and a clutch pedal upstop switch (Fig 1 ). The switch assembly is located in the clutch/brake pedal bracket assembly (Fig 2 ), each switch being fastened by four plastic wing tabs.
