Ignition Switch: Installation

Ensure the ignition switch is in the RUN position and the actuator shaft in the lock housing is in the RUN position.
Carefully install the ignition switch. The switch will snap over the retaining tabs. See Fig 6 . Install mounting screw. See Fig 4 .
Install electrical connectors to ignition switch.
Install the multi-function switch and tighten the 2 screws. See Fig 3 .

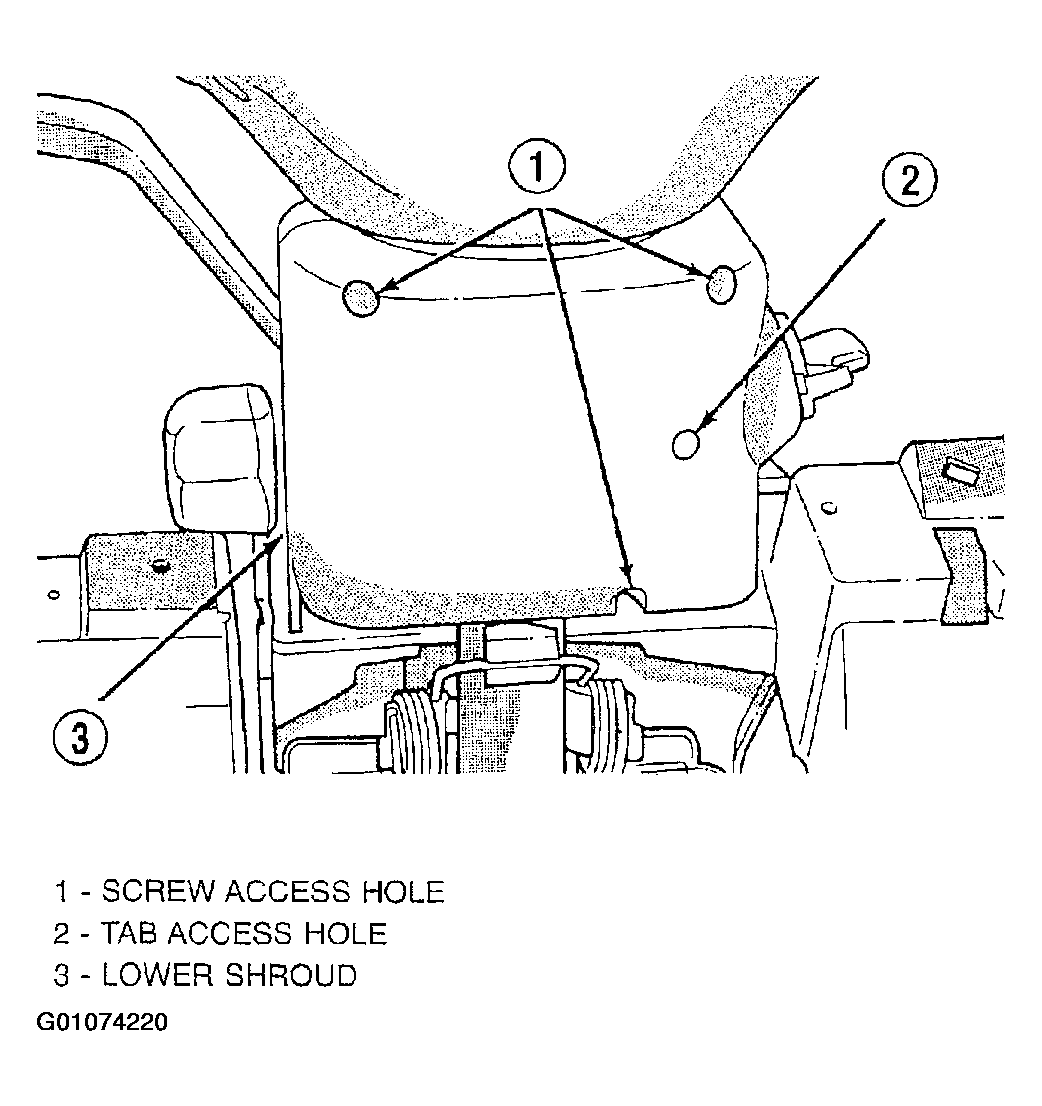

Fig 1: Removing & Installing Steering Column Shrouds
Courtesy of DAIMLERCHRYSLER CORP.

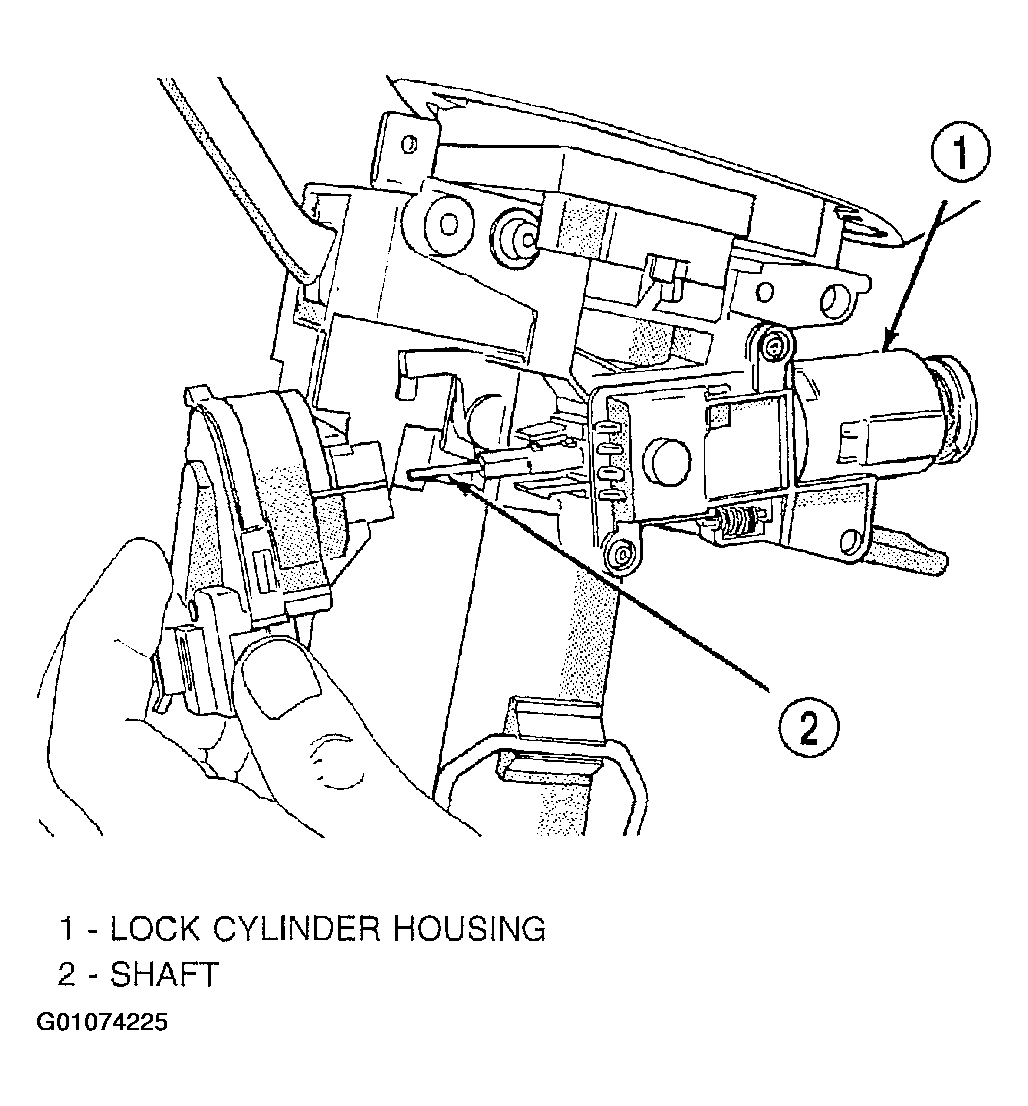

Fig 2: Removing & Installing Ignition Switch
Courtesy of DAIMLERCHRYSLER CORP.
Install upper and lower shrouds.
Install key cylinder (cylinder retaining tab will depress only in the RUN position).

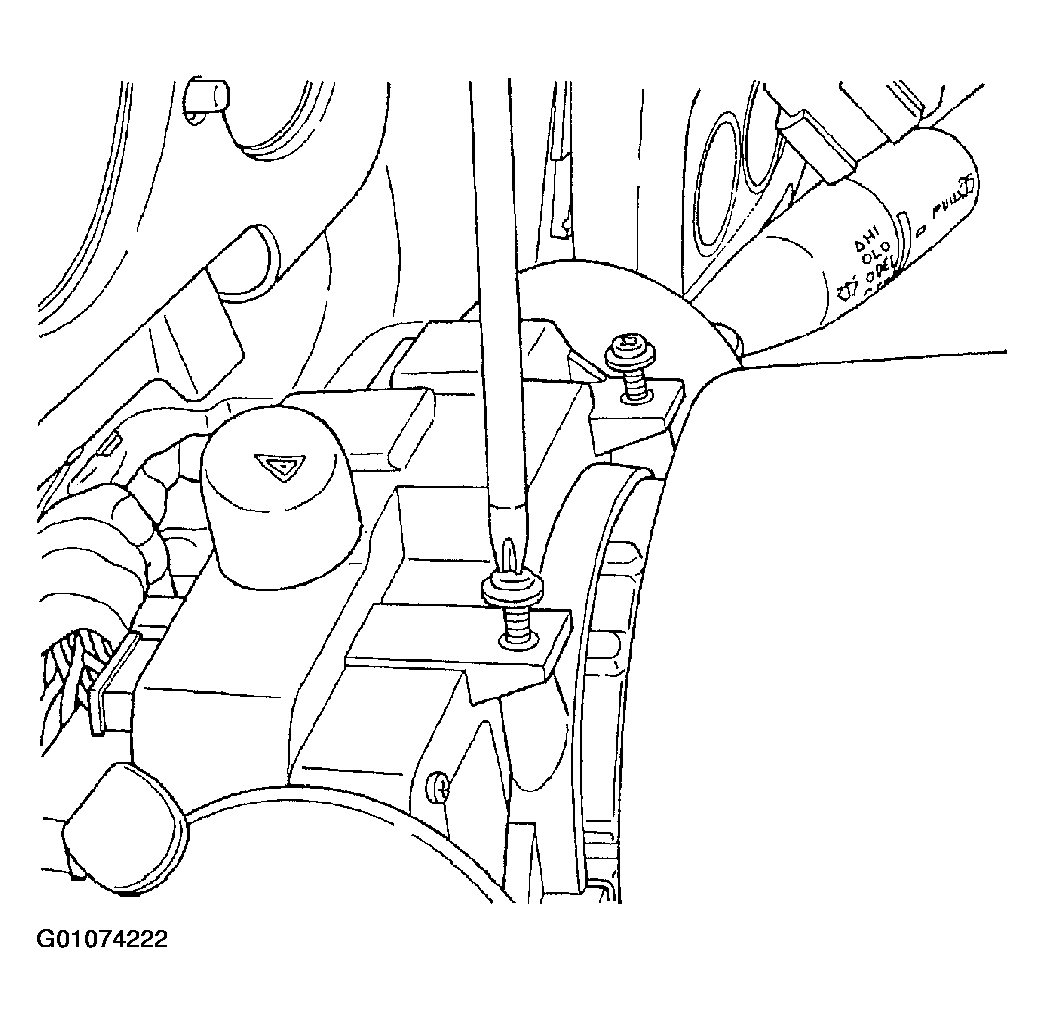

Fig 3: Removing & Installing Multi-Function Switch
Courtesy of DAIMLERCHRYSLER CORP.

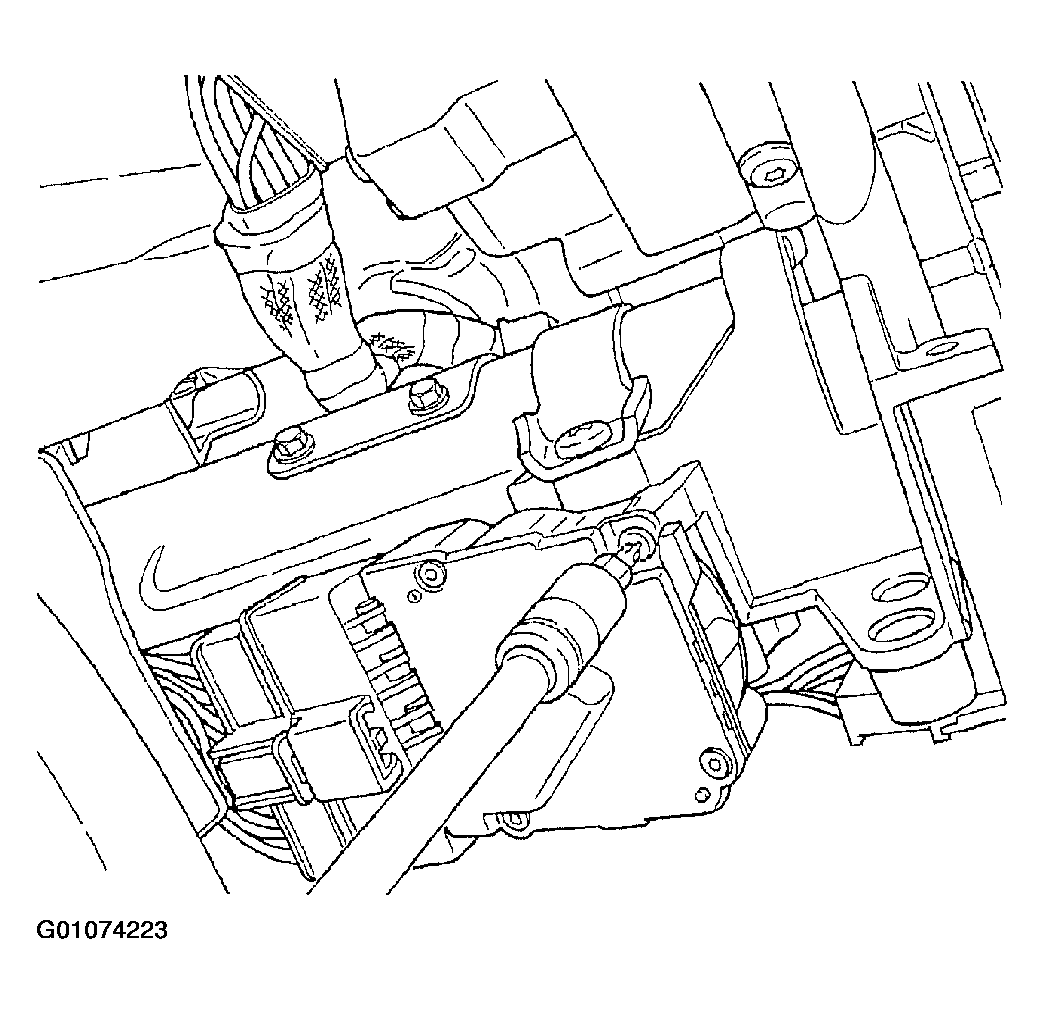

Fig 4: Removing & Installing Ignition Switch Mounting Screw
Courtesy of DAIMLERCHRYSLER CORP.
Connect negative cable to battery.
Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
Check for proper operation of ignition switch and key-in warning switch.

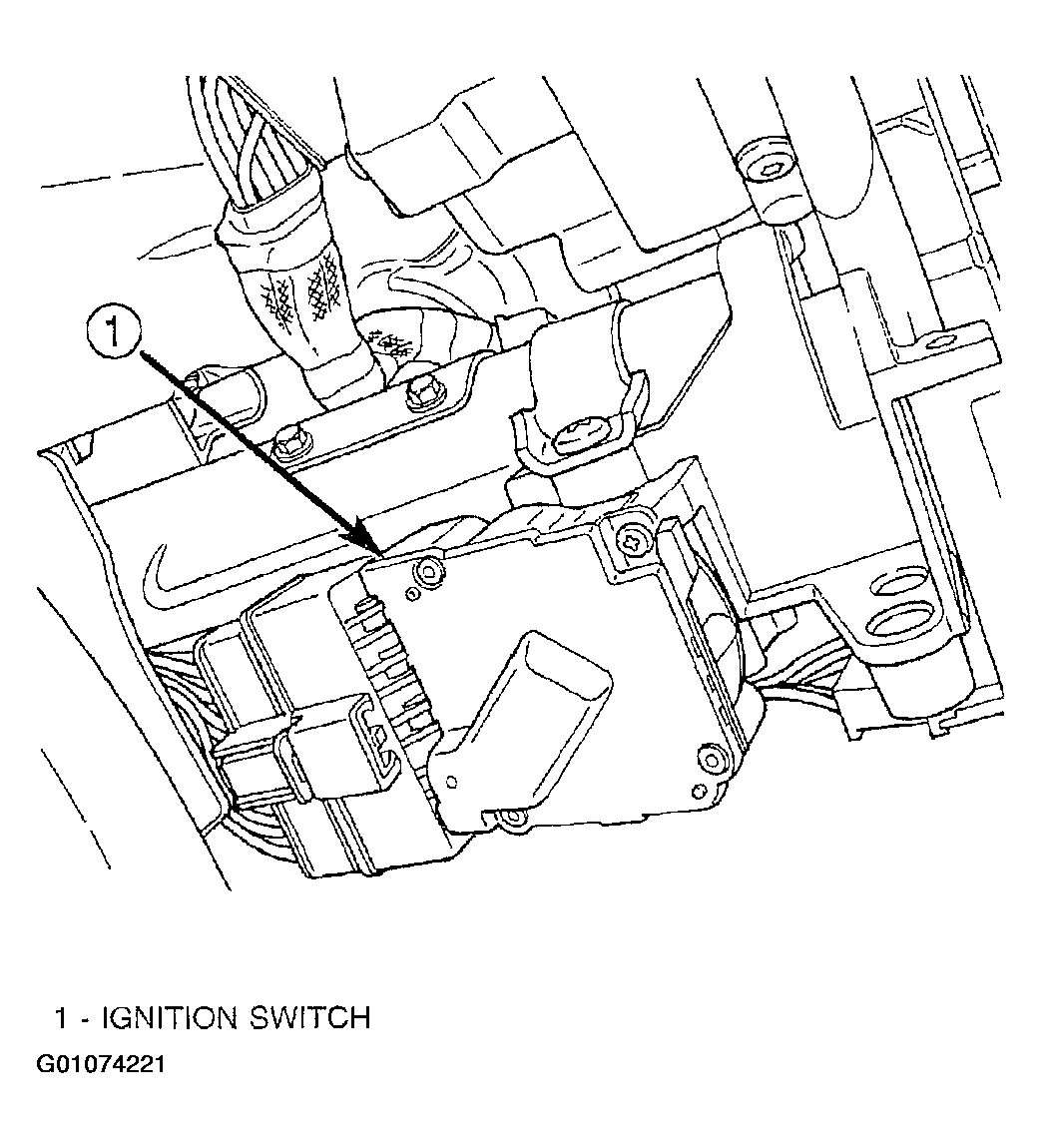

Fig 5: Removing Ignition Switch

Courtesy of DAIMLERCHRYSLER CORP.

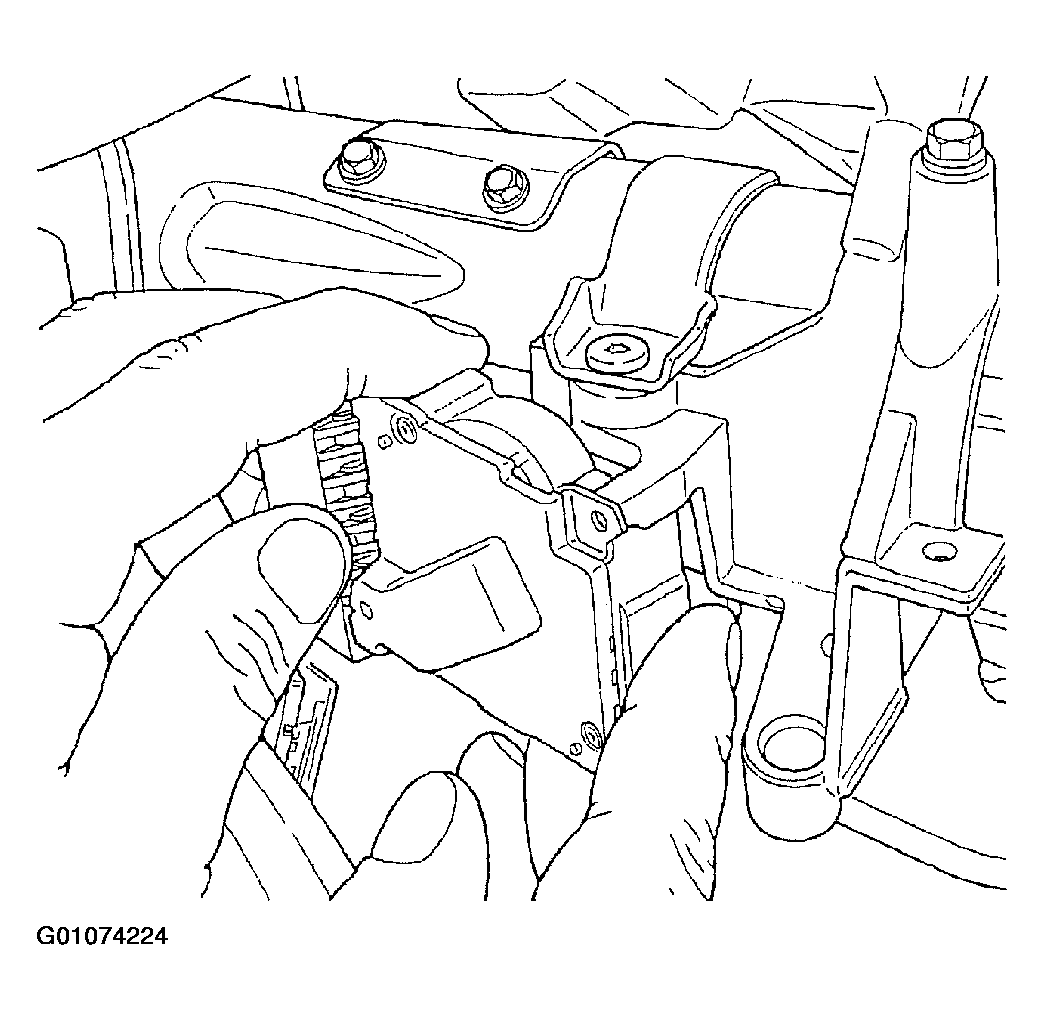

Fig 6: Installing Ignition Switch

Courtesy of DAIMLERCHRYSLER CORP.
