Right Power Mirror Connector End View
Right Power Mirror Connector End View

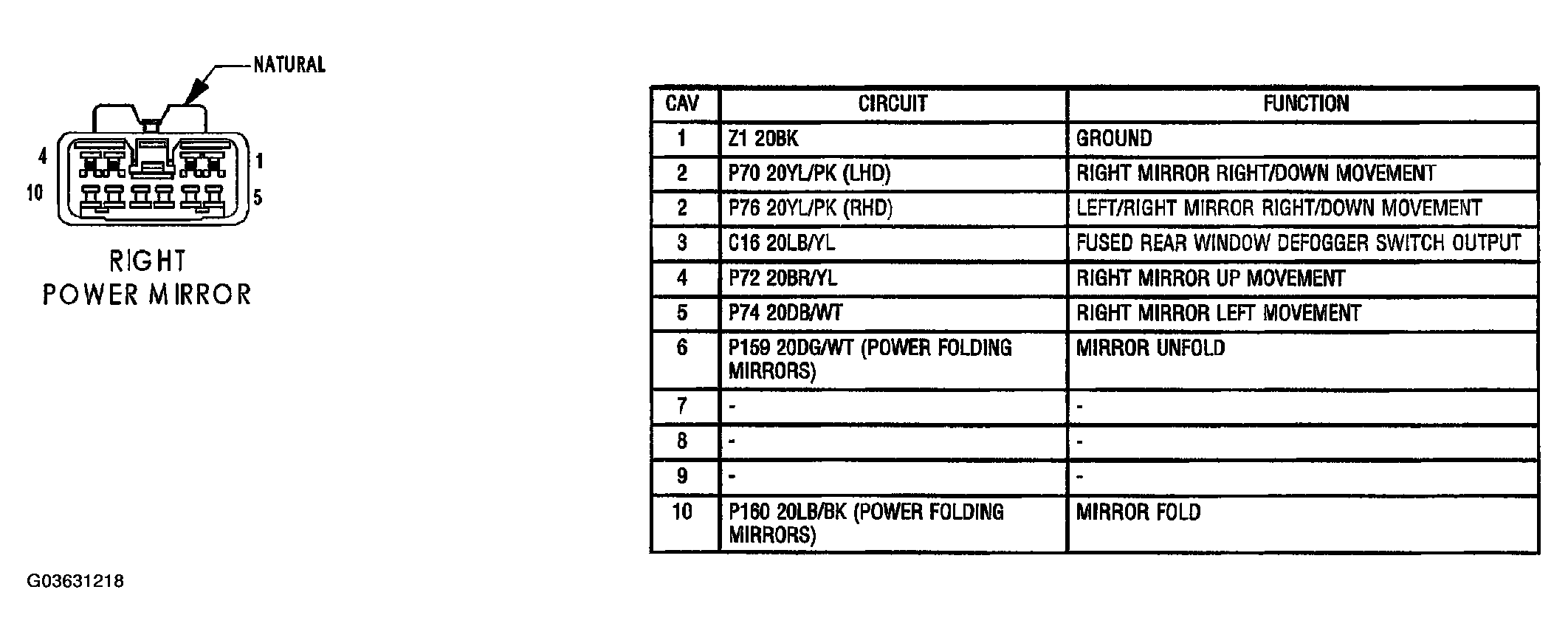

Fig 1: Right Power Mirror Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
