Passenger Window Regulator Module (PT27) Connector End View

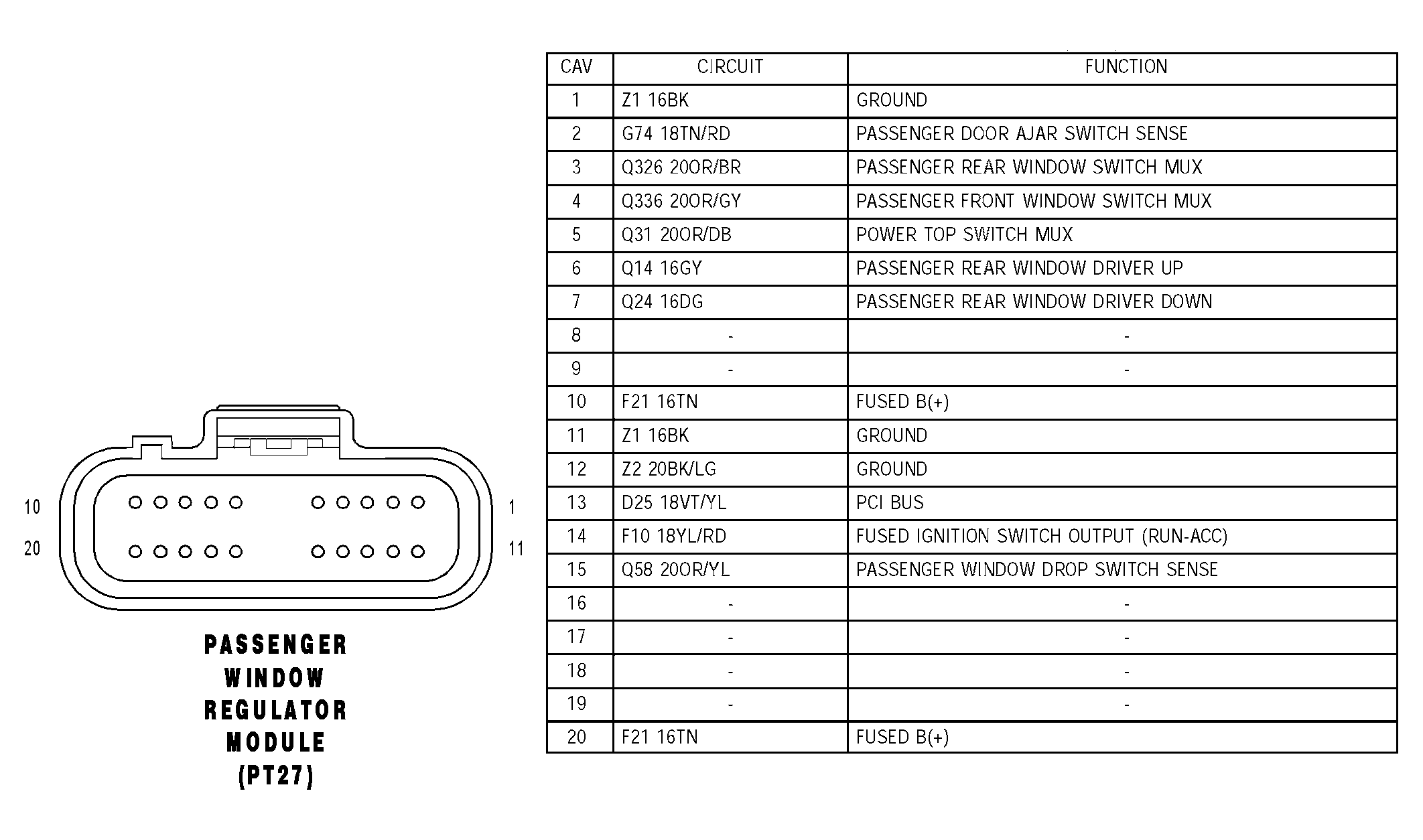

Fig 1: Passenger Window Regulator Module (PT27) Connector End View

G04549094

Courtesy of CHRYSLER GROUP, LLC
