Liftgate Cylinder Lock Switch Connector End View

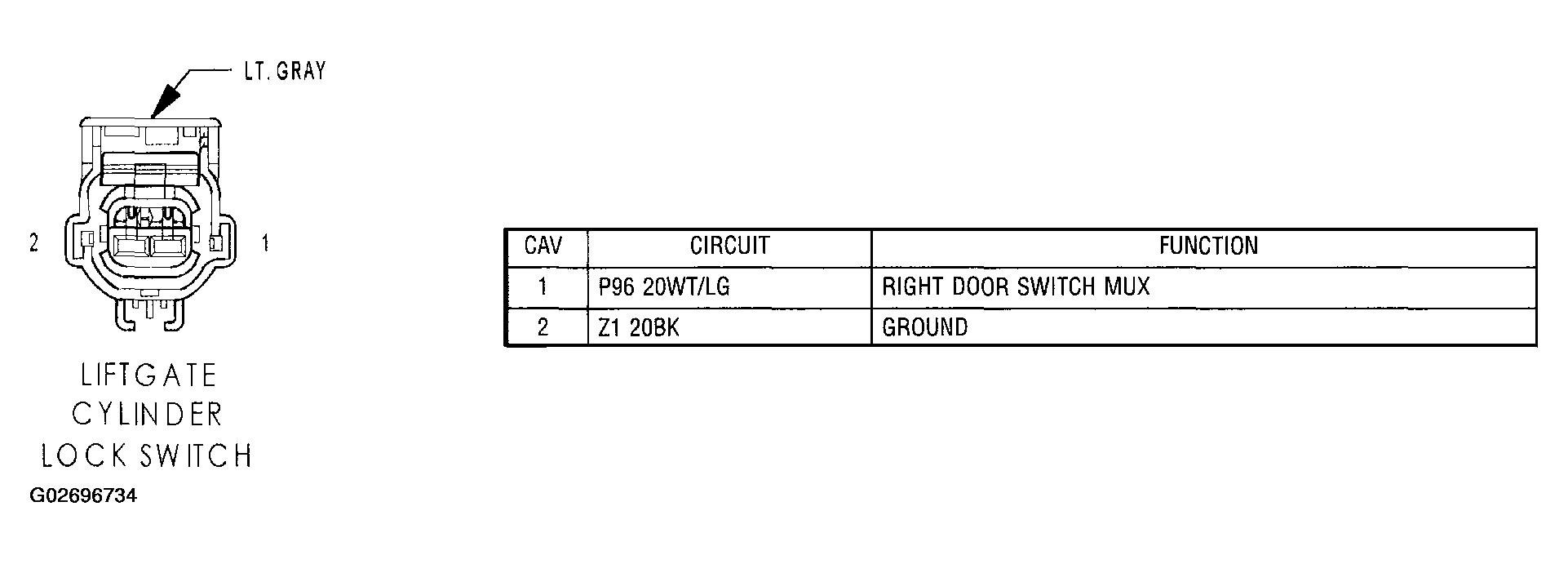

Fig 1: Liftgate Cylinder Lock Switch Connector End View

G02696734

Courtesy of CHRYSLER GROUP, LLC
