Home
>>
Chrysler
>>
2002
>>
PT Cruiser Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Left Power Mirror Connector End View
Left Power Mirror Connector End View

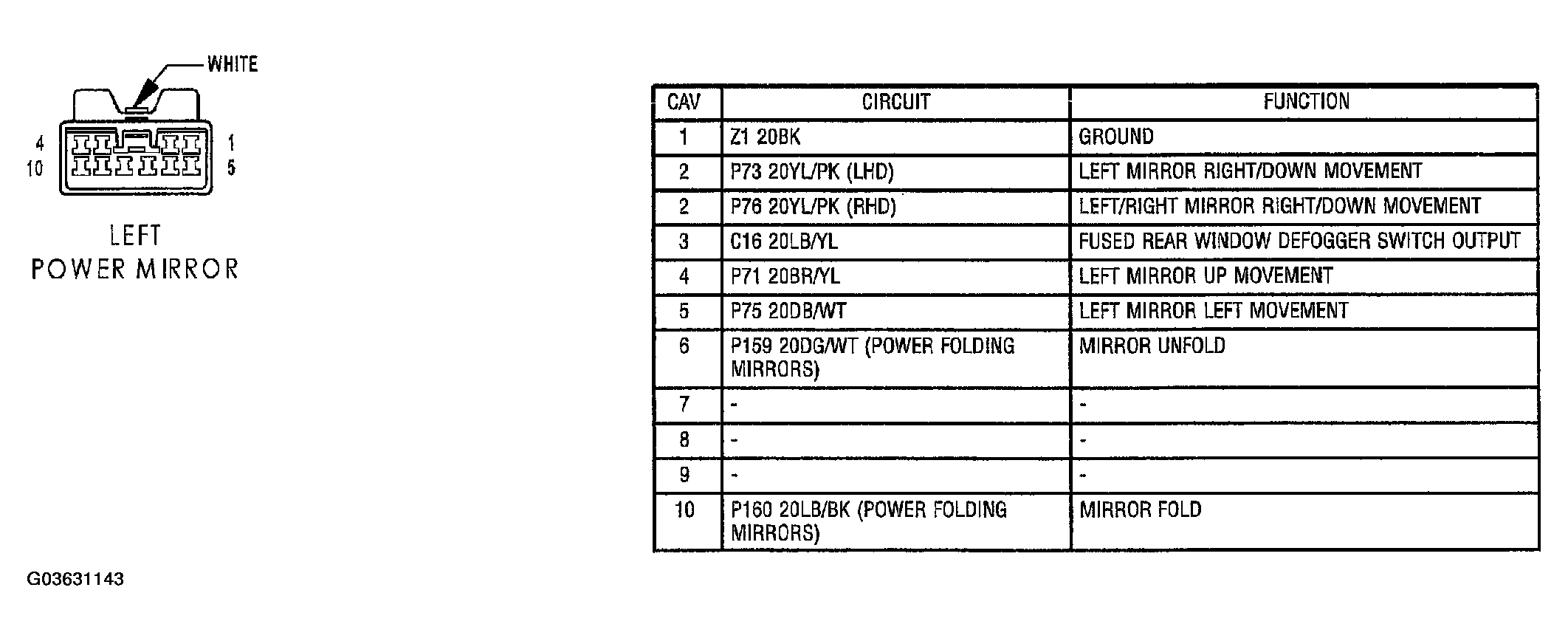

Fig 1: Left Power Mirror Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
