C304 Connector End View
C304 Connector End View

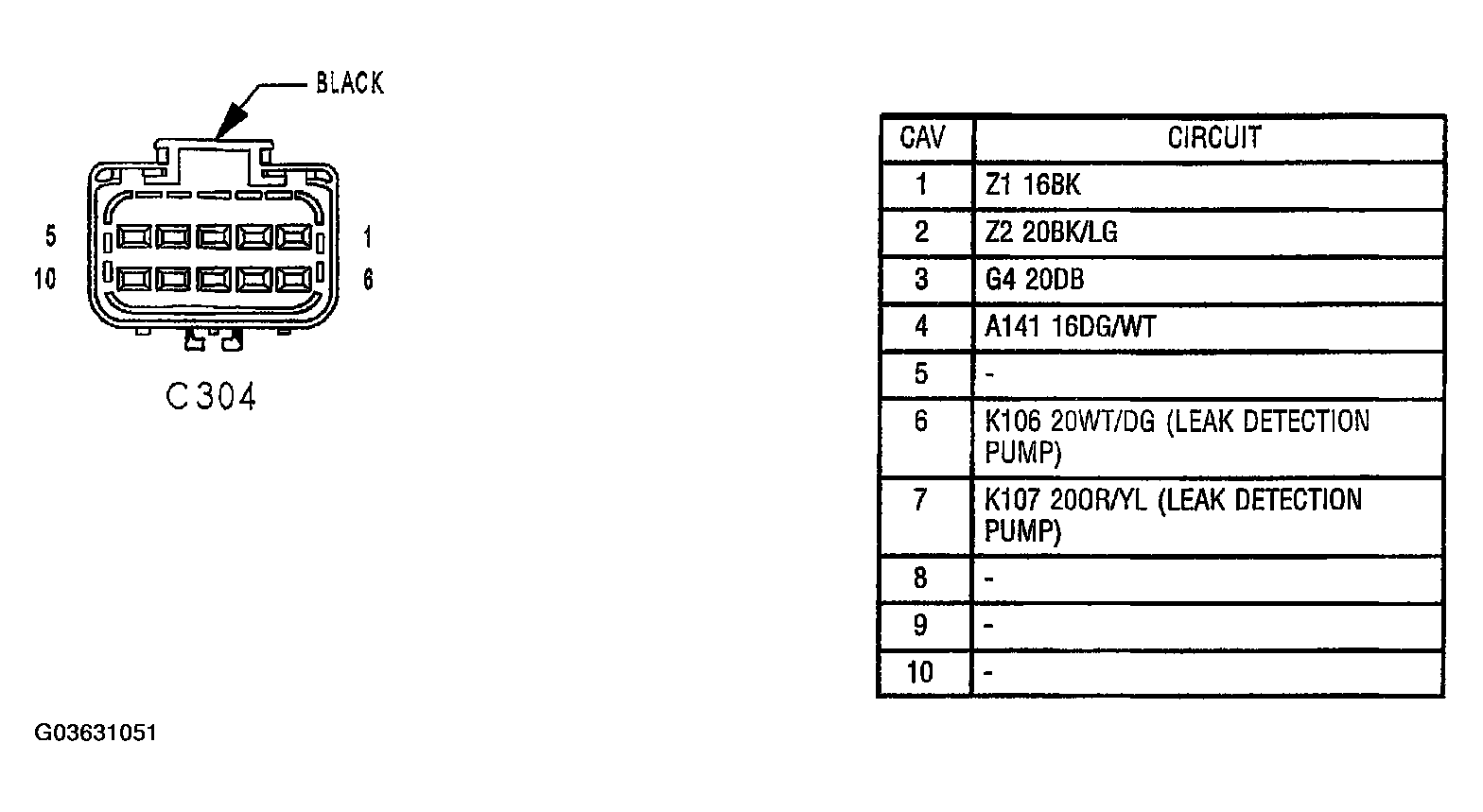

Fig 1: C304 Connector End View
Courtesy of CHRYSLER GROUP, LLC

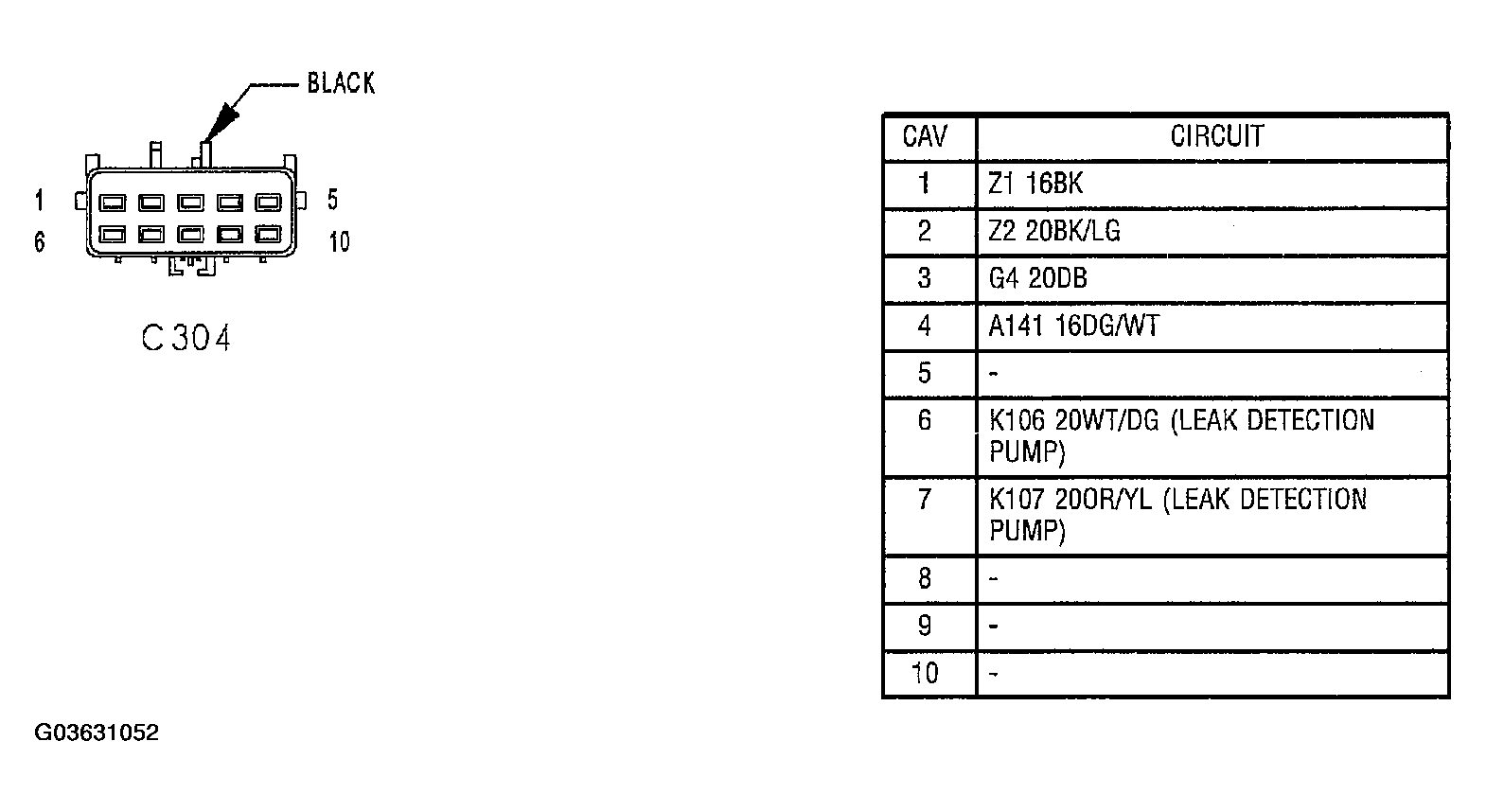

Fig 1: C304 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
