C302 Connector End View
C302 Connector End View

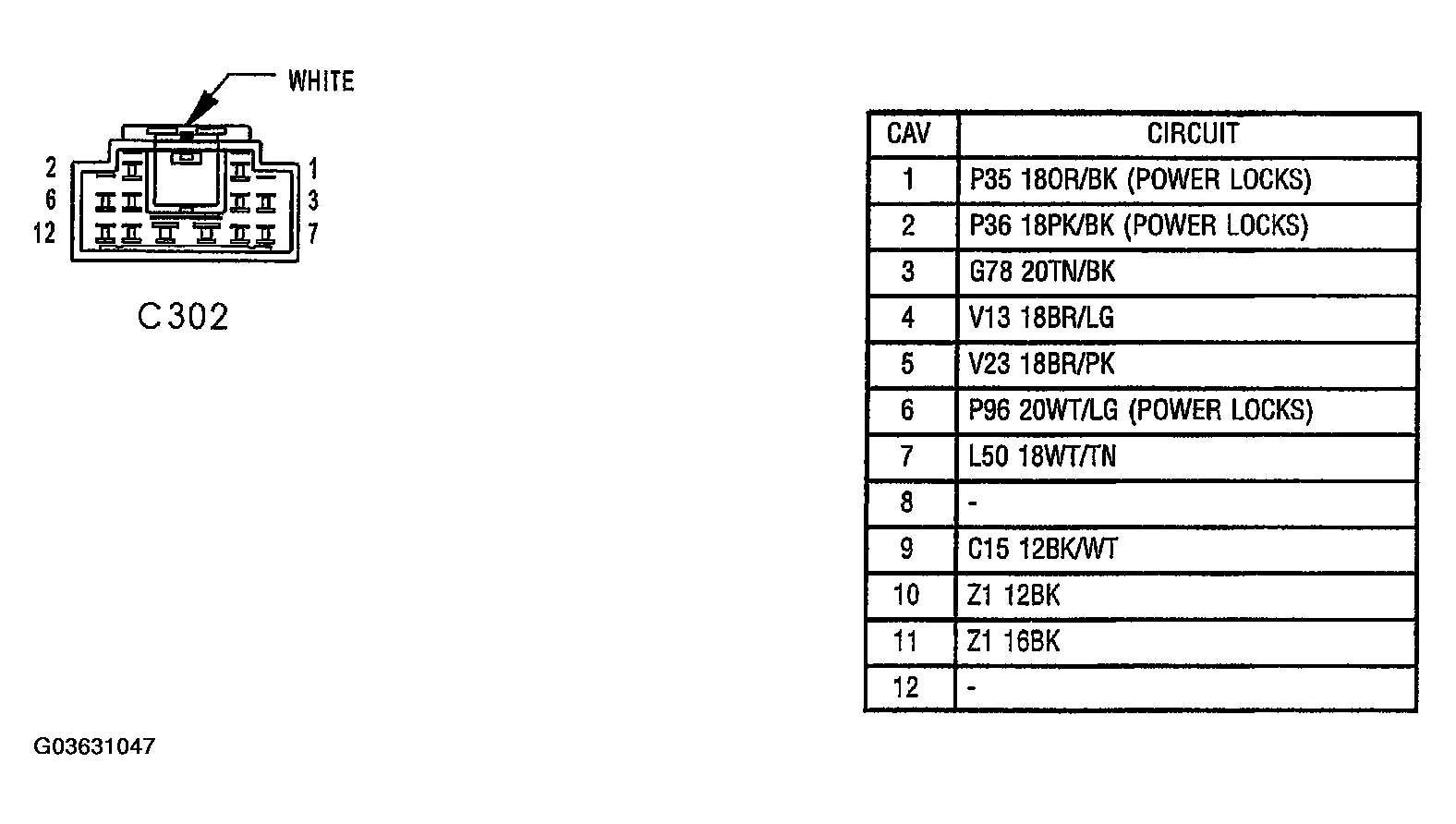

Fig 1: C302 Connector End View
Courtesy of CHRYSLER GROUP, LLC

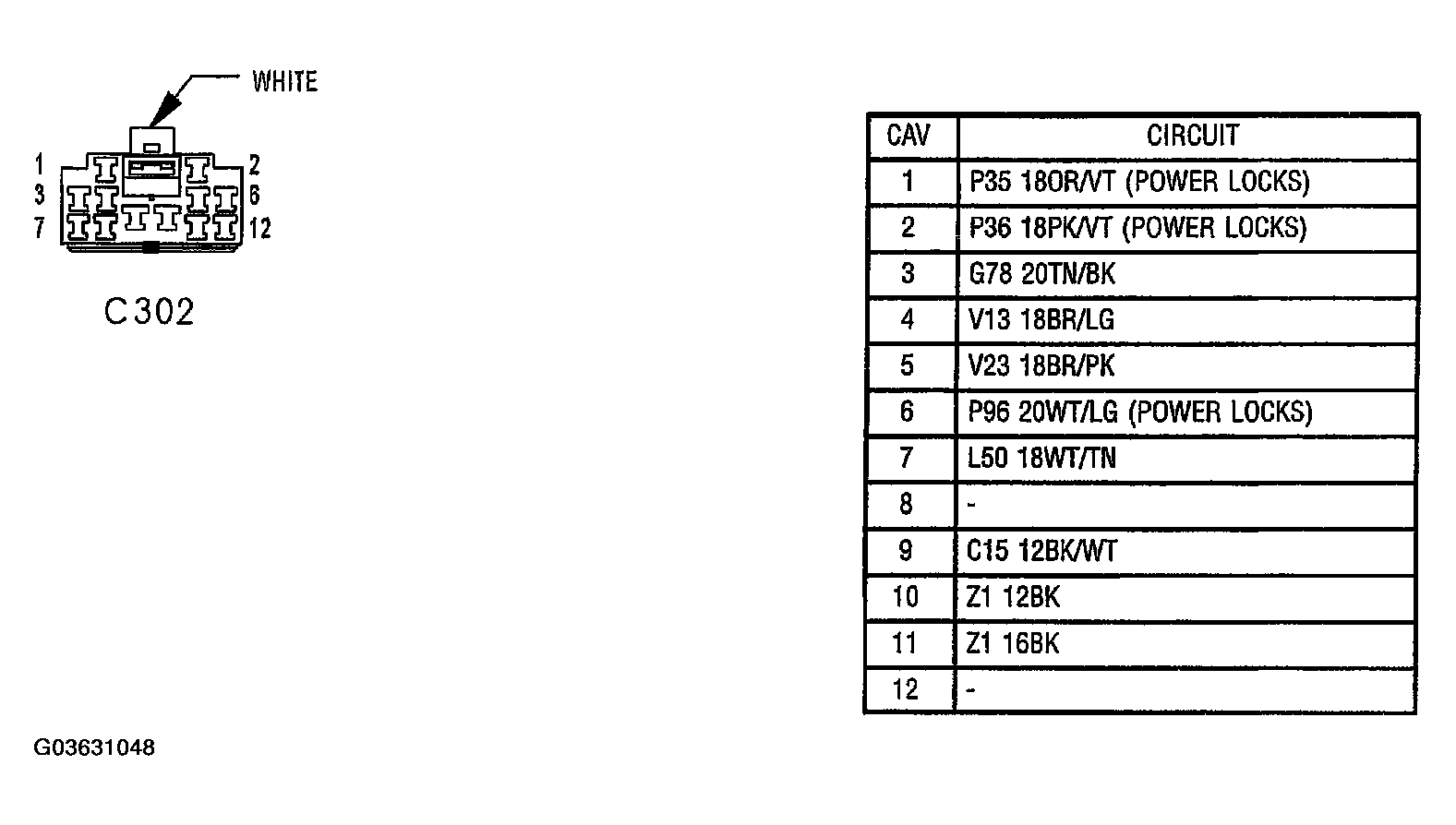

Fig 1: C302 Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
