Preliminary Inspection

Verify customer complaint by operating system. Visually inspect for obvious signs of mechanical and electrical damage. Inspect for blown fuses and damaged relays. For fuse and/or relay identification, refer to illustrations. See Fig 1 - Fig 6 . Inspect for loose or corroded connections, damaged wiring harnesses and/or switches. Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Ensure any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. If no fault is found, see SYSTEM TESTS  .

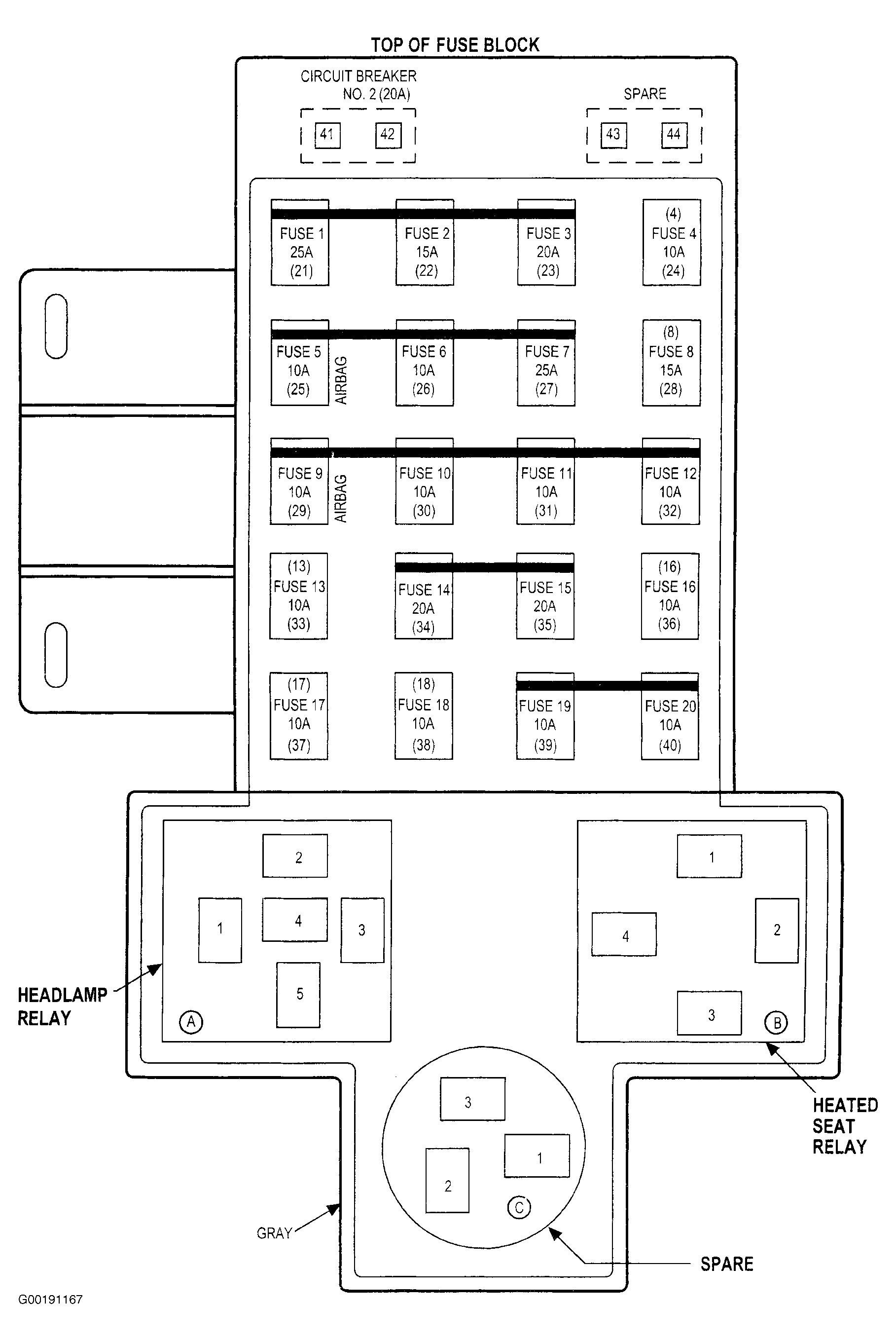

Fig 1: Identifying Fuse Block (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

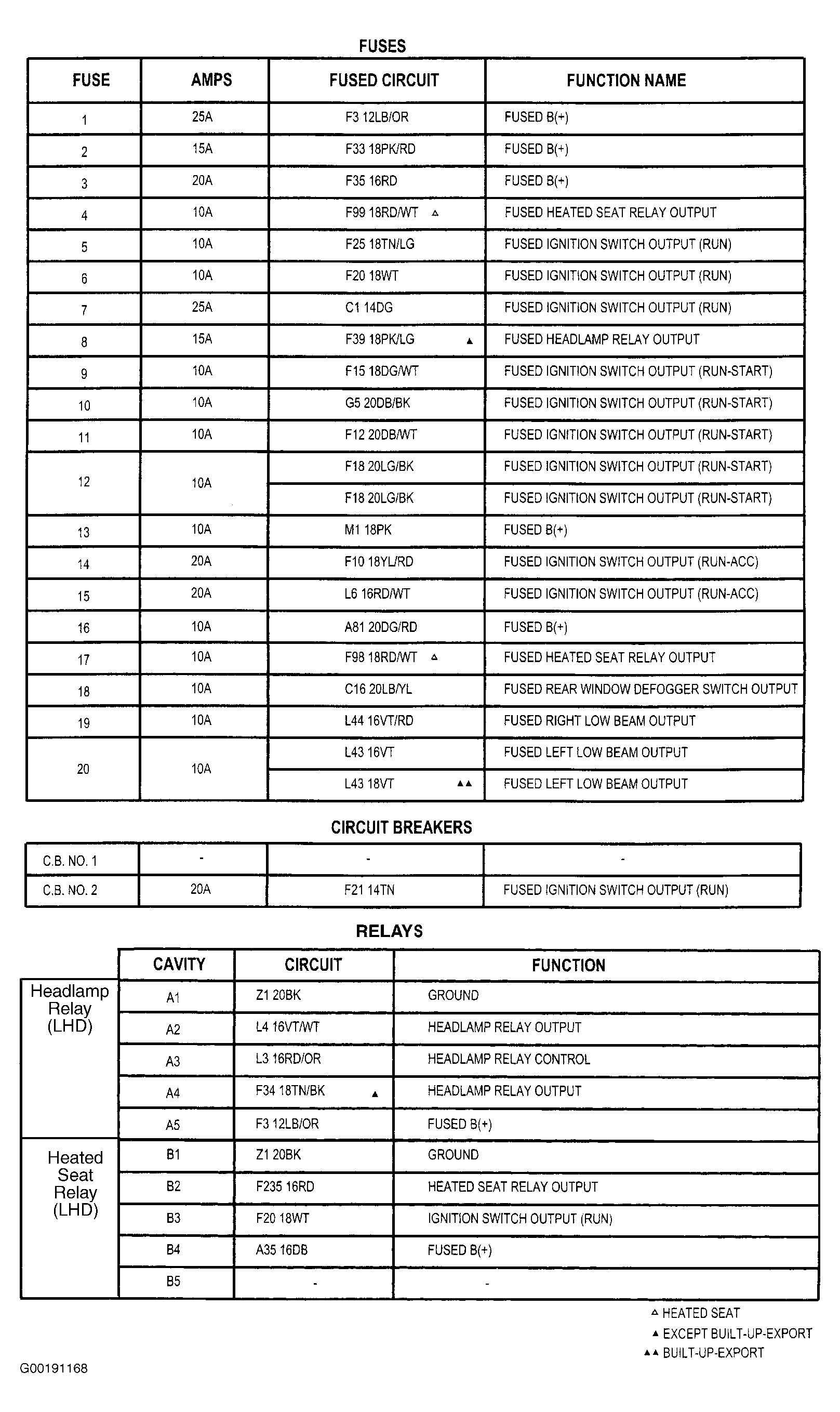

Fig 2: Identifying Fuse Block (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

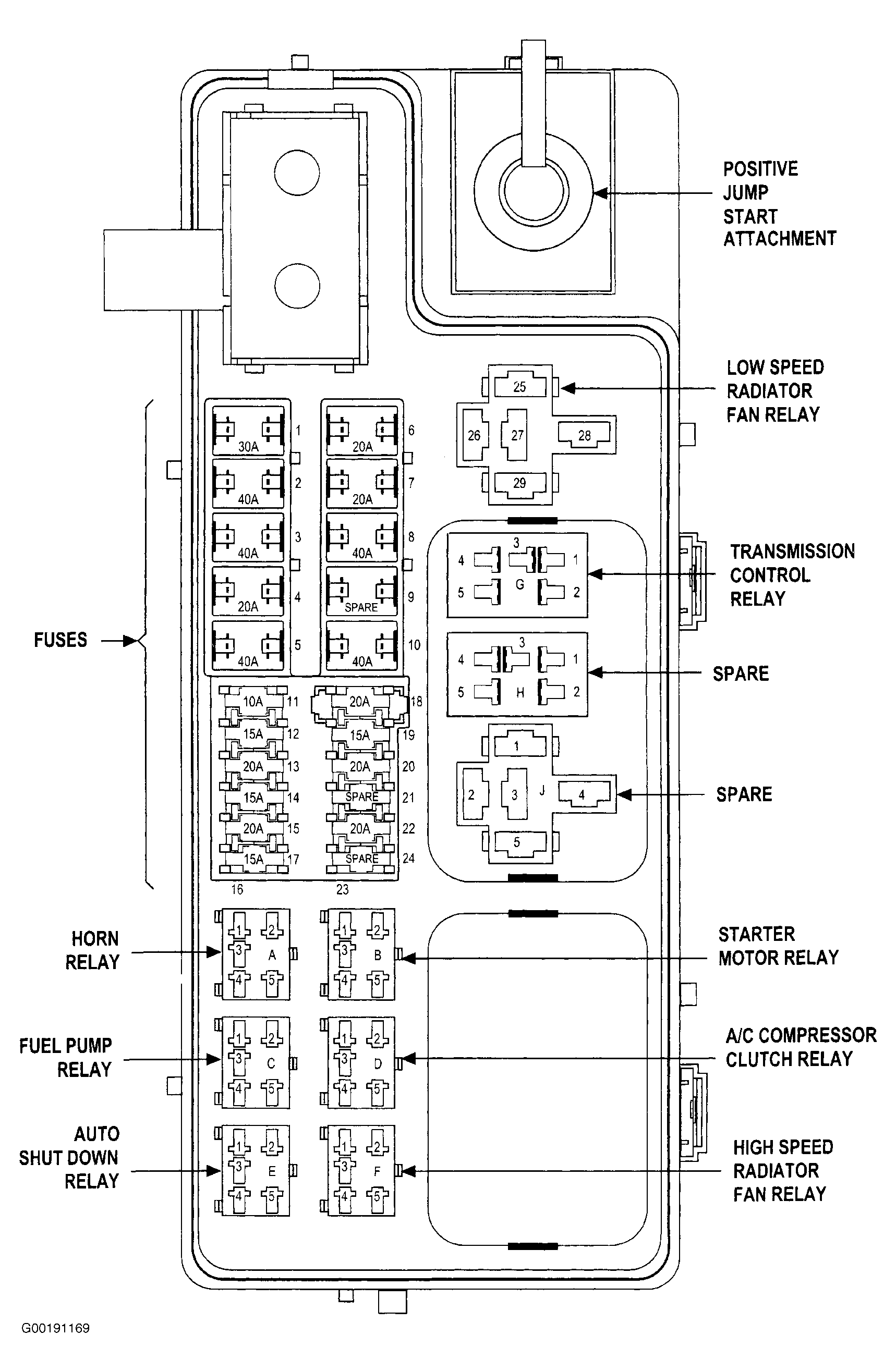

Fig 3: Identifying Power Distribution Center (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

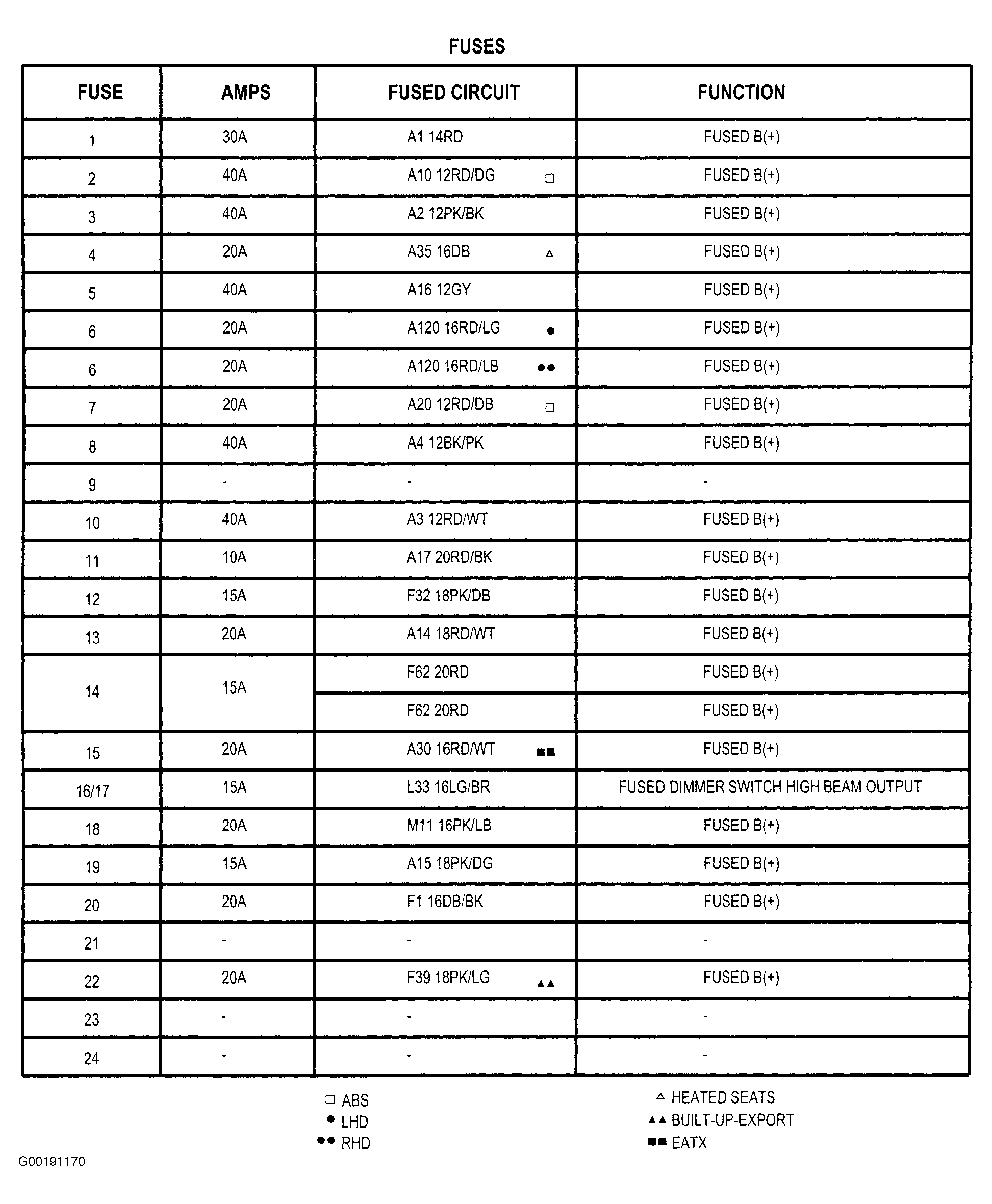

Fig 4: Identifying Power Distribution Center (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

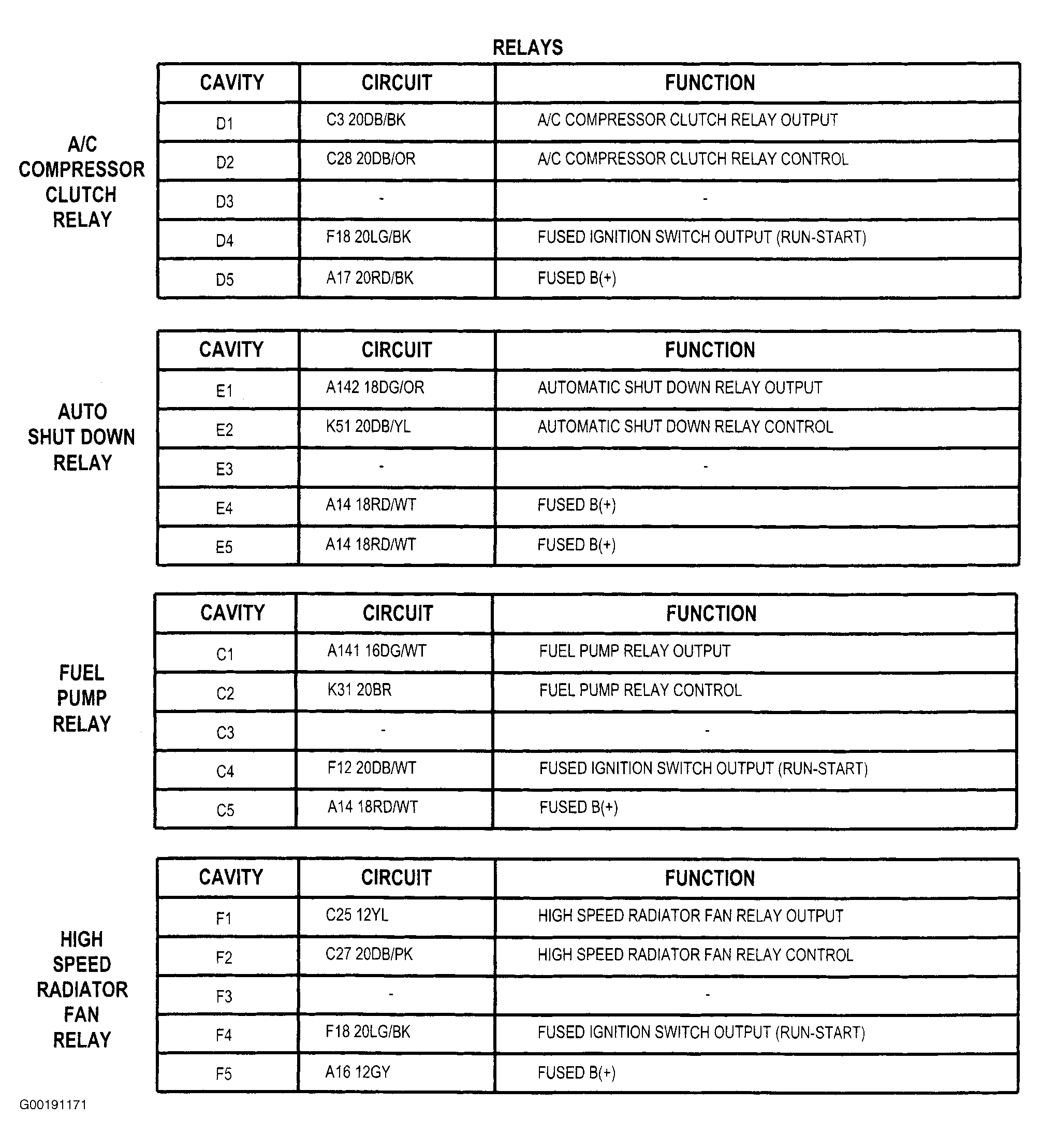

Fig 5: Identifying Power Distribution Center (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

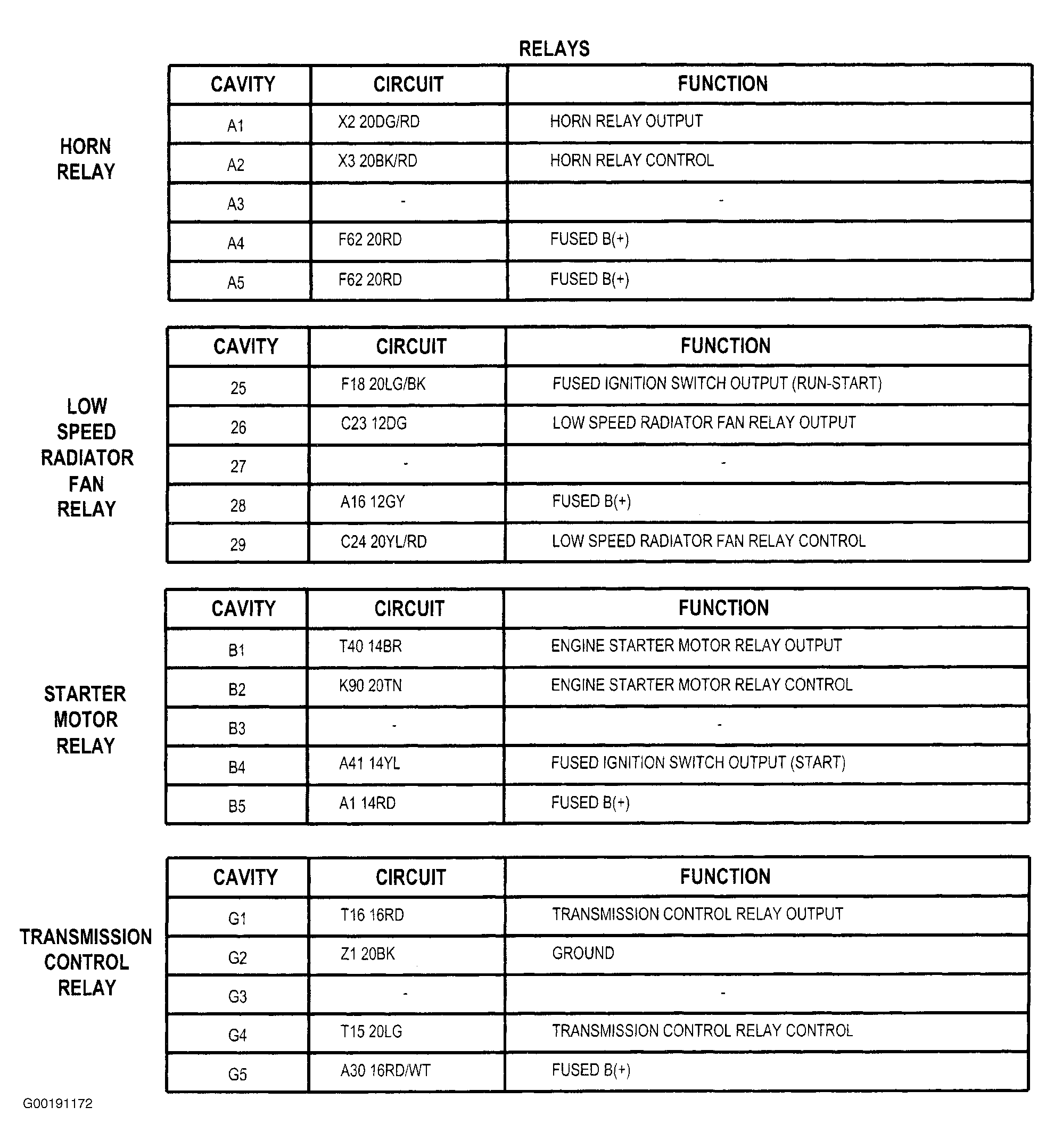

Fig 6: Identifying Power Distribution Center (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.
