Component Locations

COMPONENT LOCATIONS

Component	Location
Control Servo	Right Side Of Engine Compartment. See Fig 1 .
Data Link Connector (DLC)	Under Left Side Of Dash, Near Kick Panel.
Power Distribution Center	On Left Side Of Engine Compartment. See Fig 2 .
Powertrain Control Module (PCM)	On Firewall, Behind Power Distribution Center.
Vacuum Reservoir	Right Front Fenderwell. See Fig 3 .

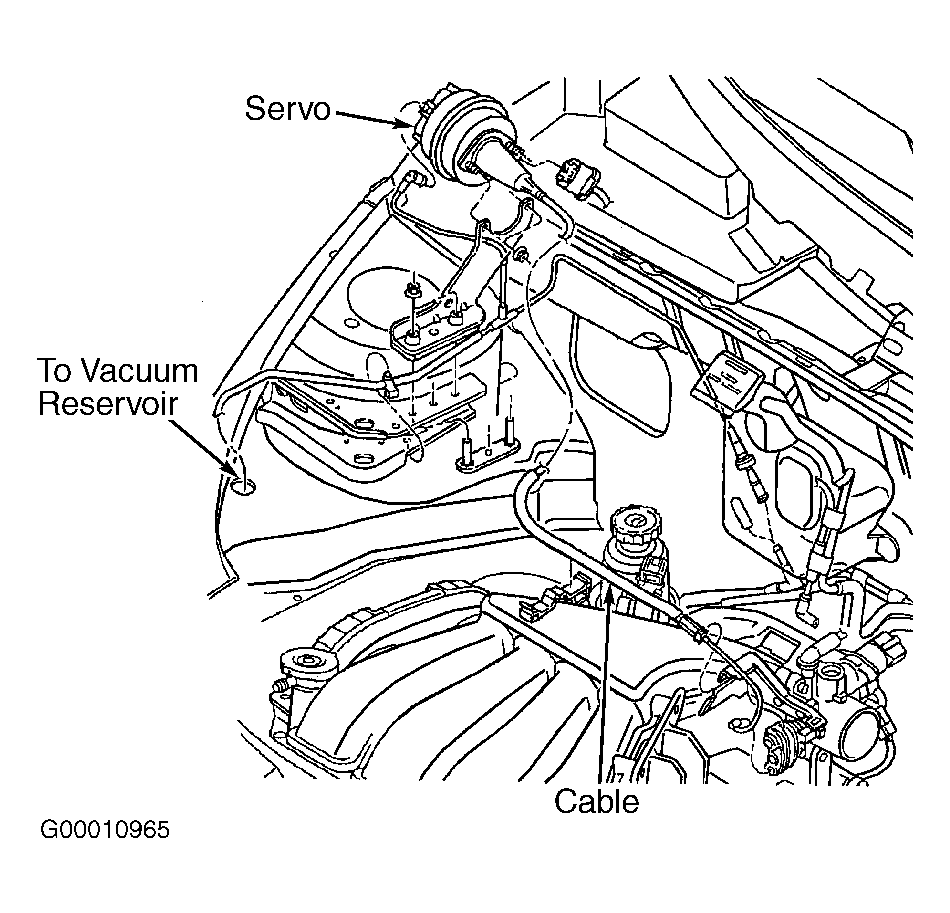

Fig 1: Identifying Cruise Control Components

G00010965

Courtesy of CHRYSLER CORP.

Fig 2: Locating Power Distribution Center

G00085451

Courtesy of DAIMLERCHRYSLER CORPORATION

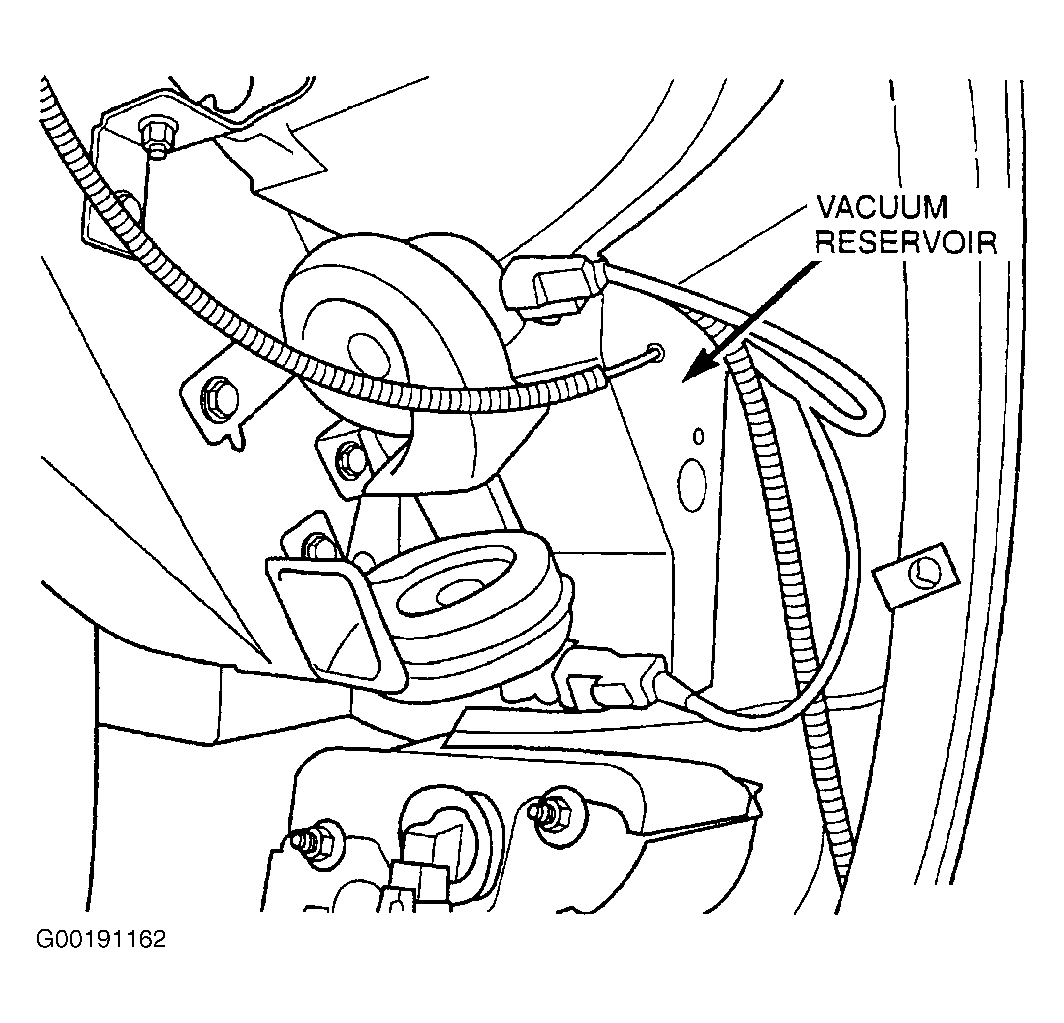

Fig 3: Locating Vacuum Reservoir

G00191162

Courtesy of DAIMLERCHRYSLER CORP.
