Solenoid/Pressure Switch Assembly: Installation

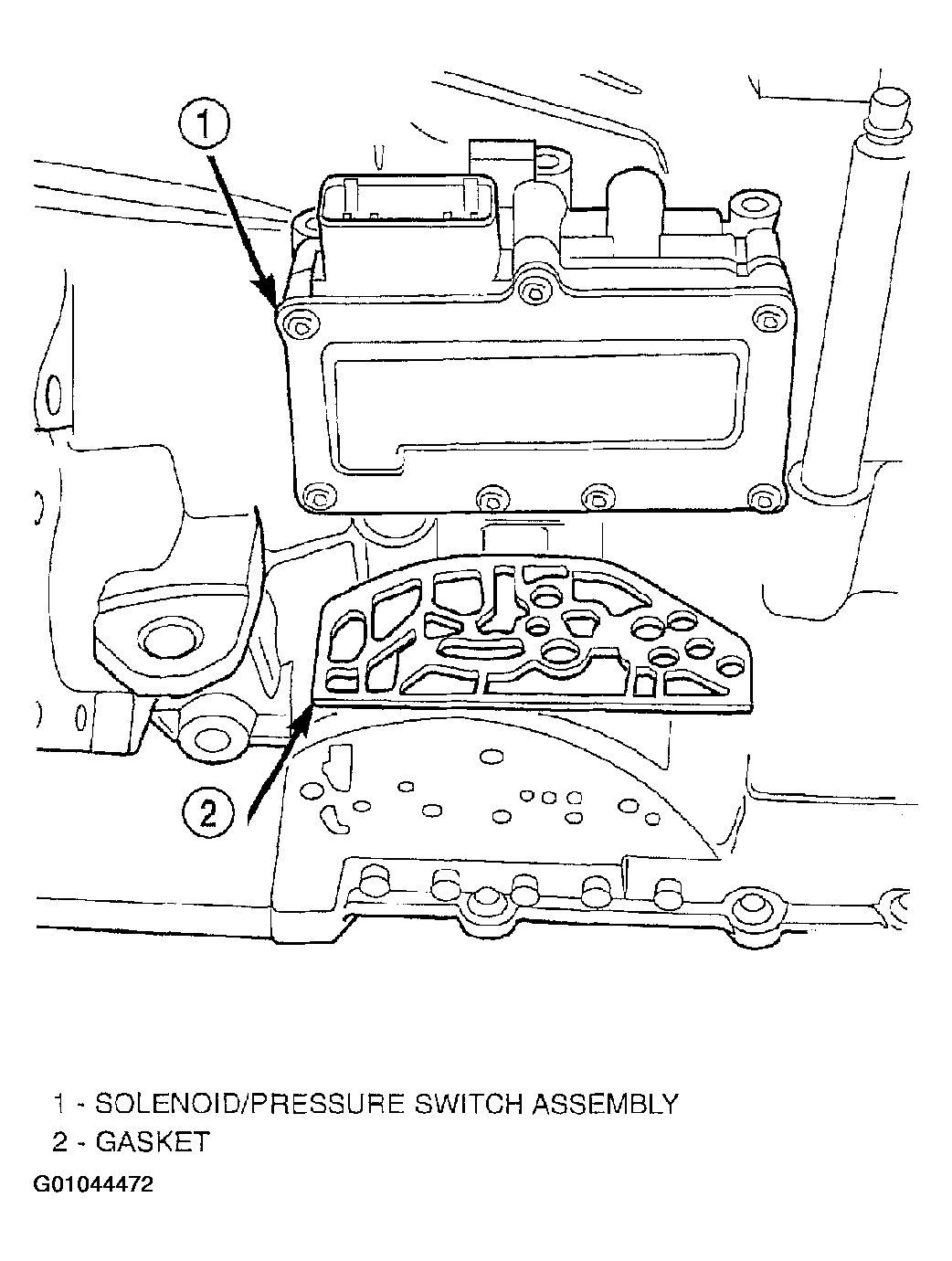

  1. Install solenoid/pressure switch assembly to case using a new gasket (Figure).

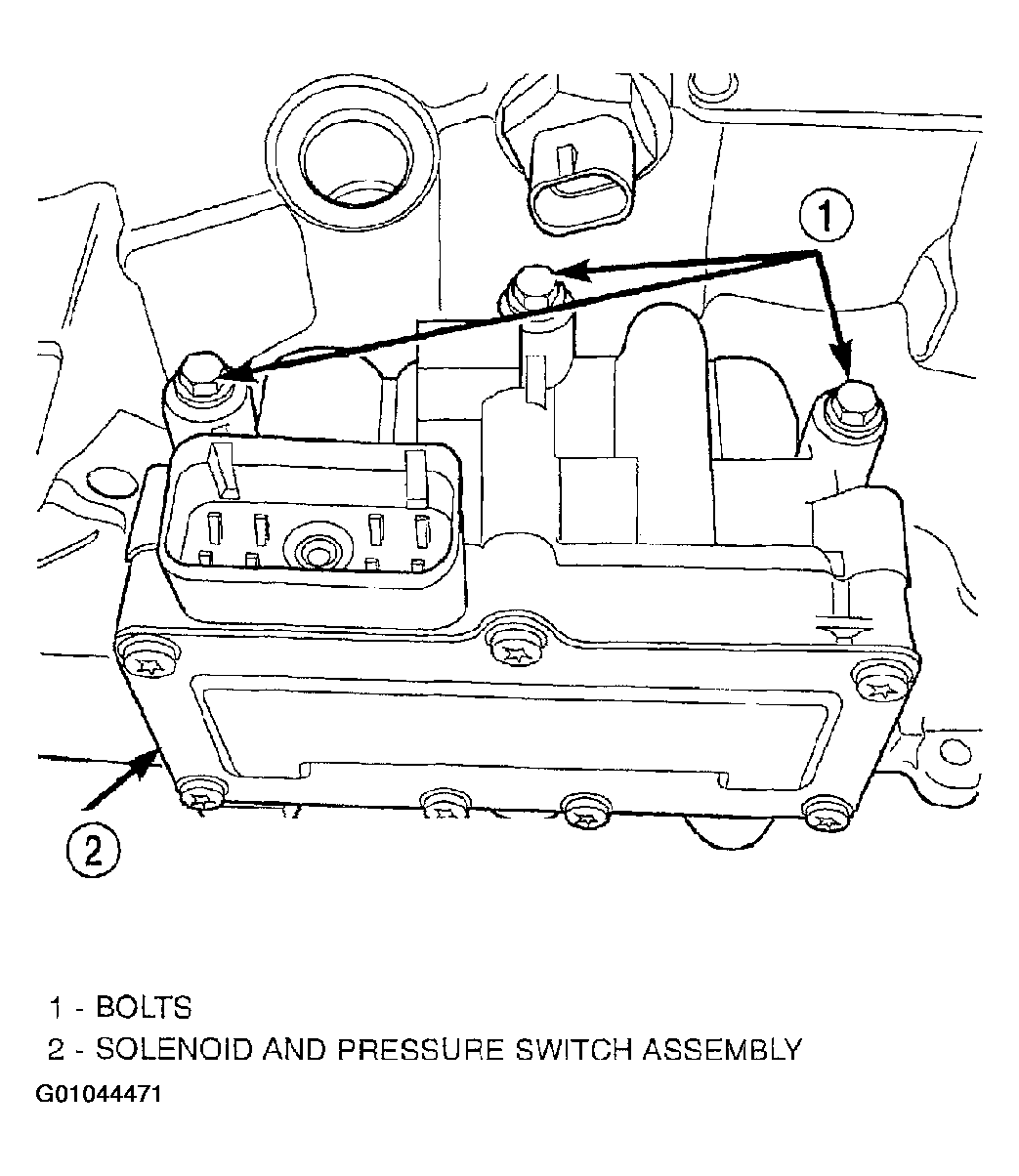

  2. Install bolts and torque to 13 N.m (110 in. lbs.) (Figure).
  3. Install 8-way connector and torque screw to 4 N.m (35 in. lbs.).
  4. Uncap and install transmission oil cooler lines.

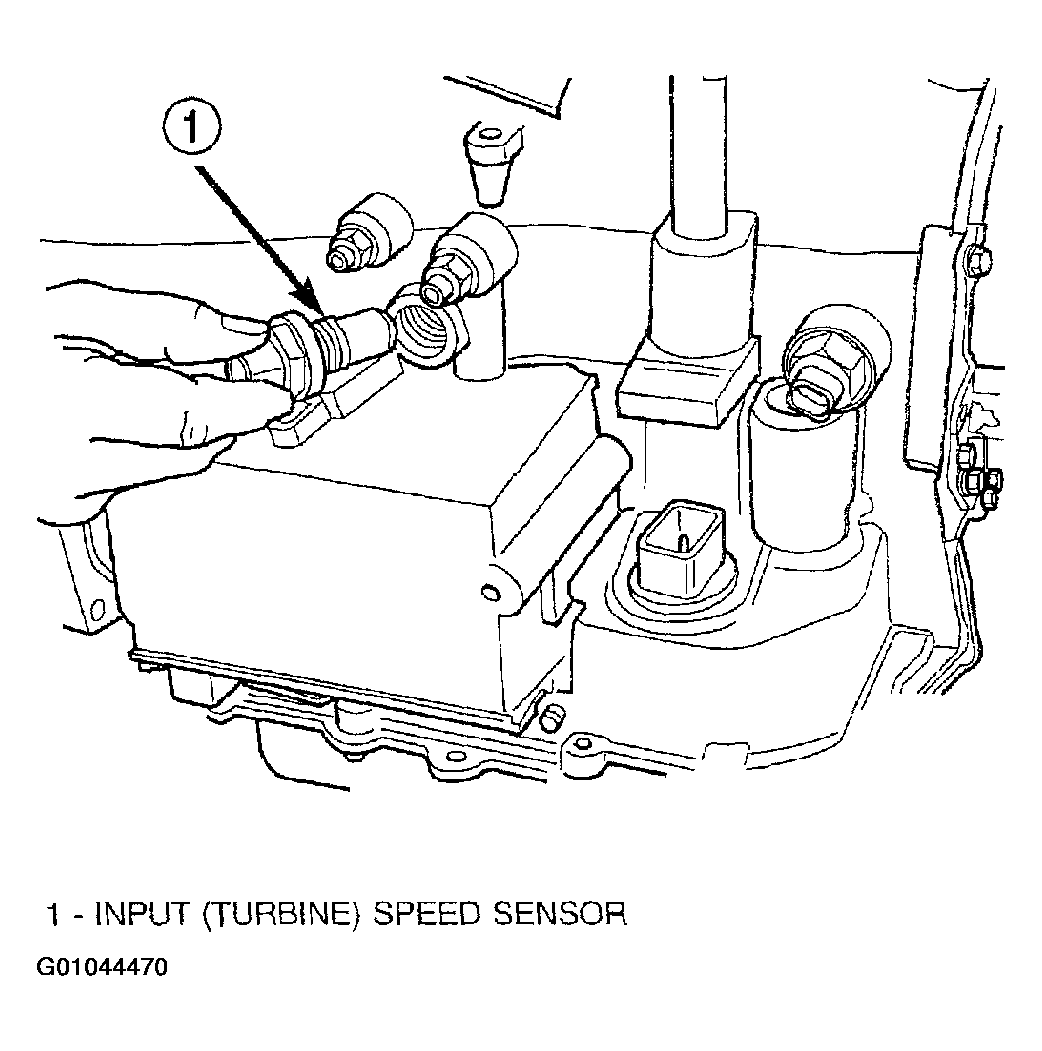

  5. Install input speed sensor (Figure) and torque to 27 N.m (20 ft. lbs.).

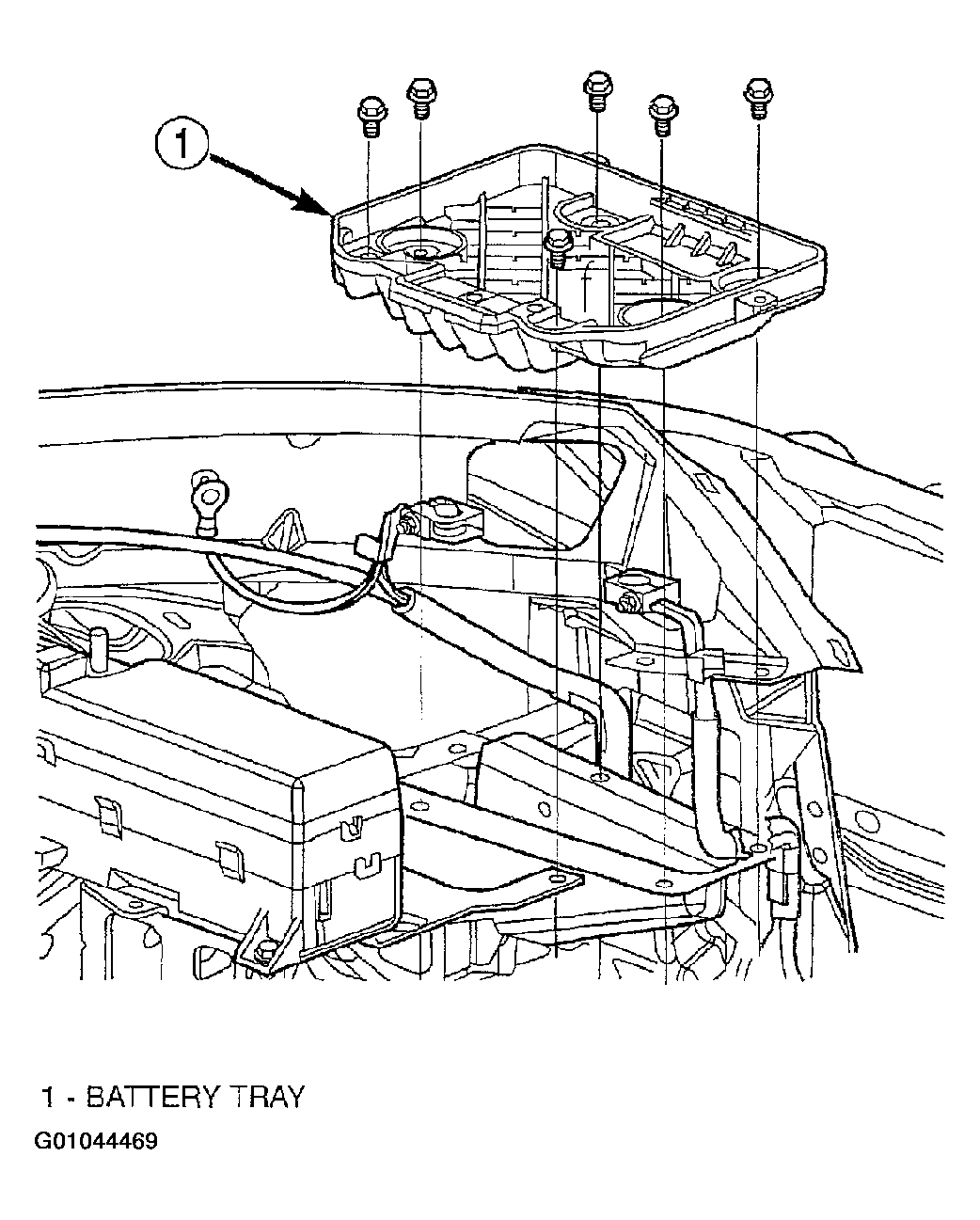

  6. Install the battery tray (Figure).

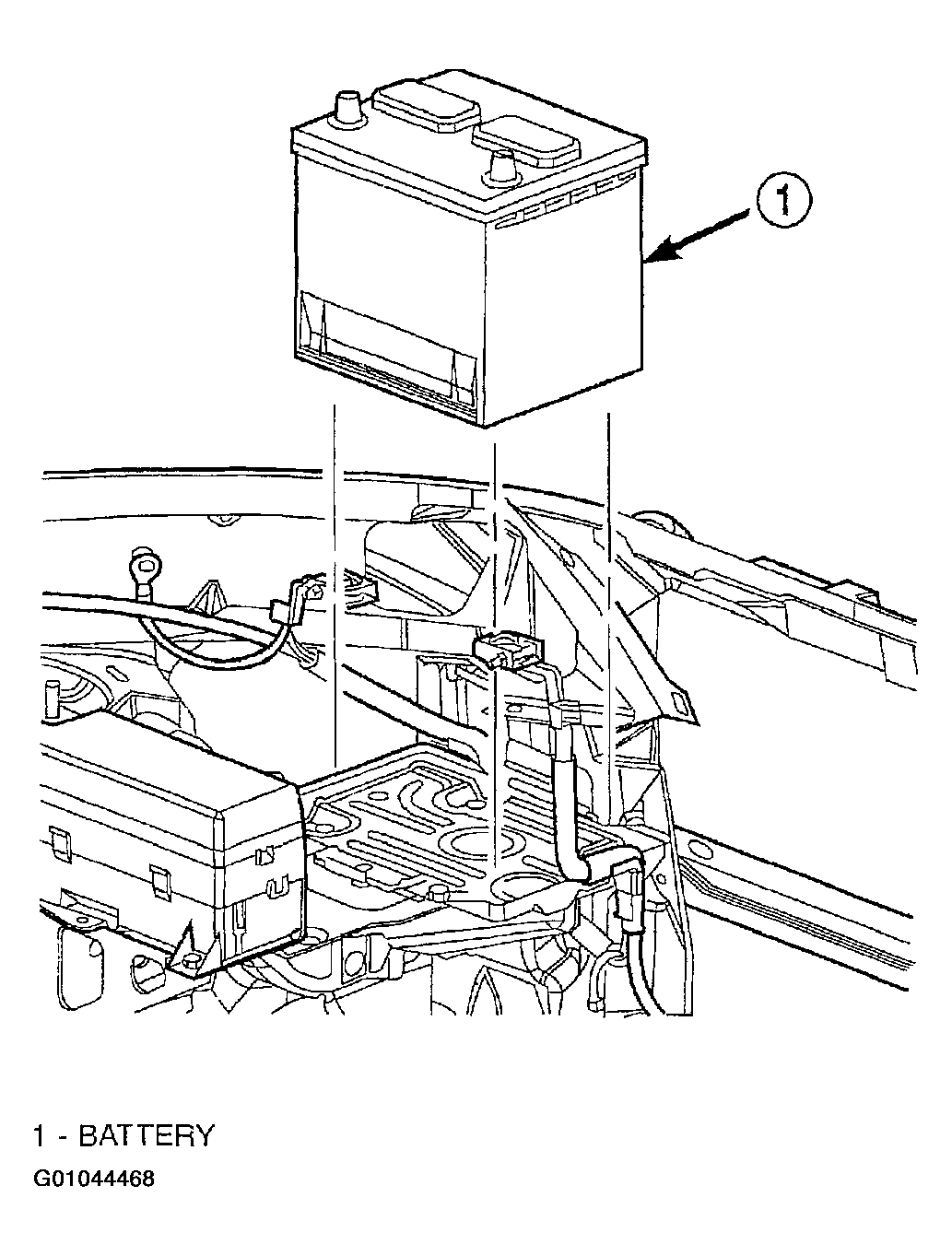

  7. Install the battery and hold down clamp (Figure).

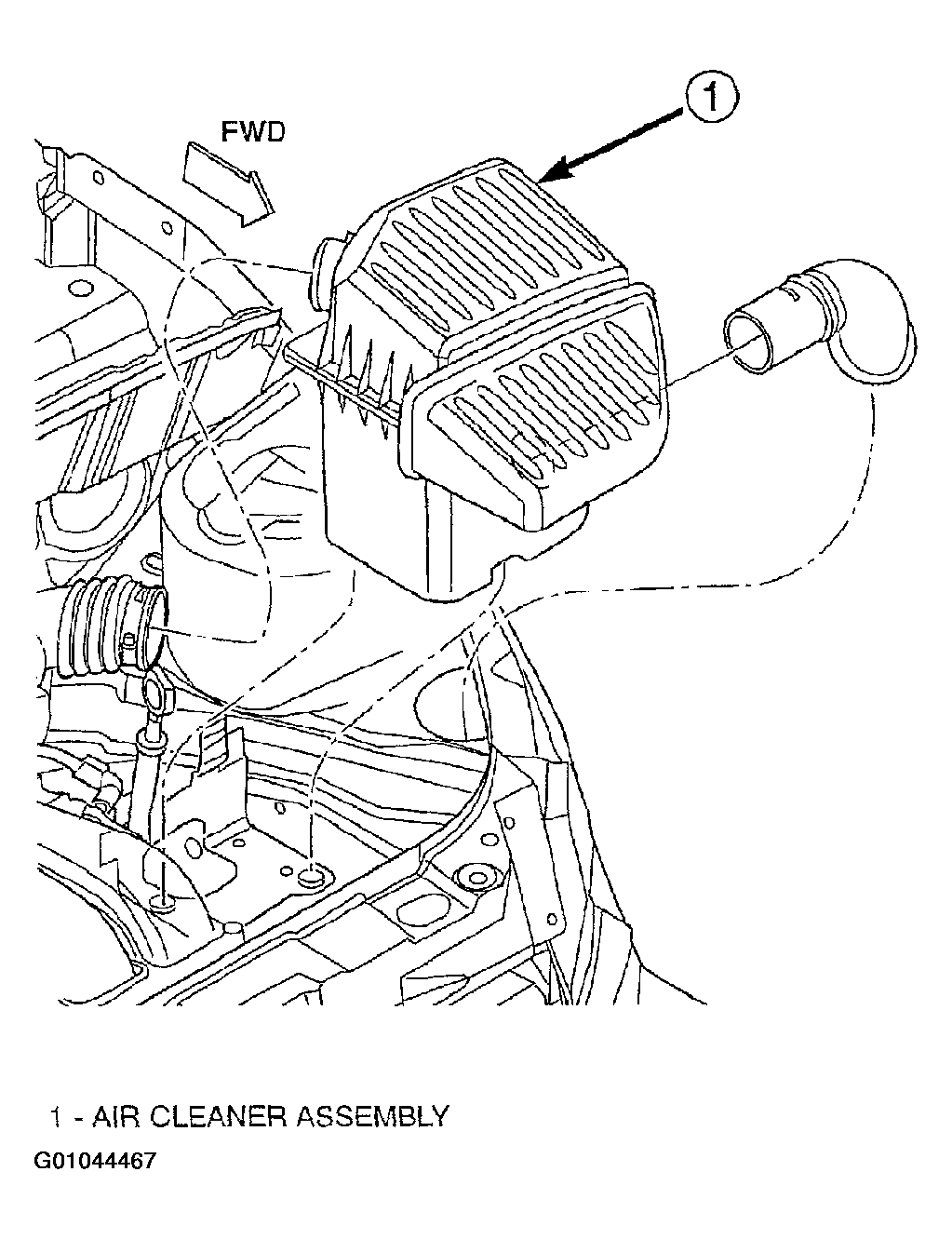

  8. Install air cleaner assembly (Figure).
  9. Connect battery cables.
  10. Perform Transaxle Quick Learn Procedure. Refer to TRANSAXLE SHIFT QUALITY QUICK LEARN PROCEDURE .
