Rocker Arms: Installation

  1. Lubricate rocker arm with clean engine oil.

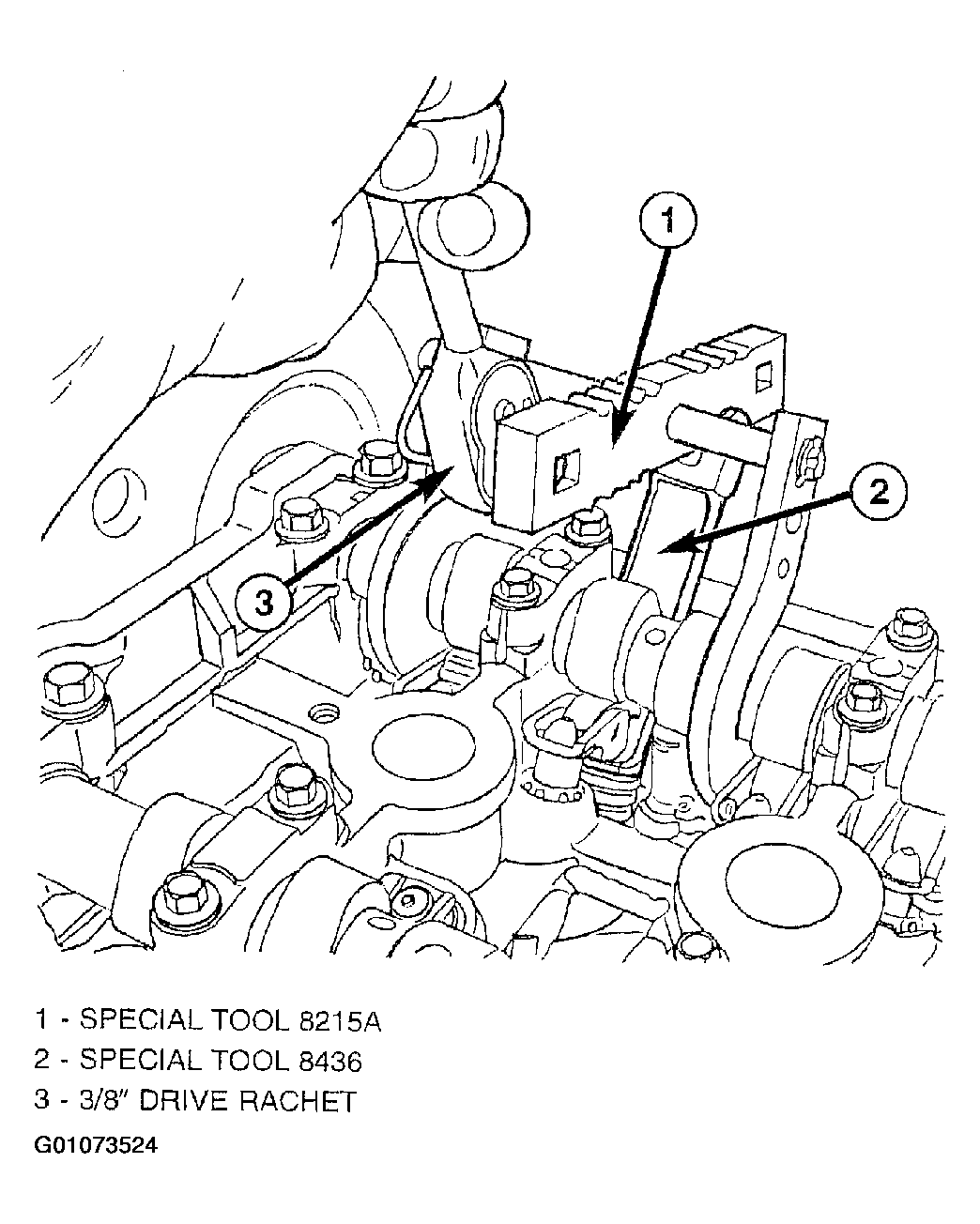

  2. Using Special Tools 8215A and 8436 slowly depress valve assembly until rocker arm can be installed on the hydraulic lifter and valve stem (Figure).
  3. Repeat installation procedure for each rocker arm.
  4. Install spark plugs.
  5. Install cylinder head cover. (Refer to CYLINDER HEAD COVER )
