Oil Pressure Sensor/Switch: Installation

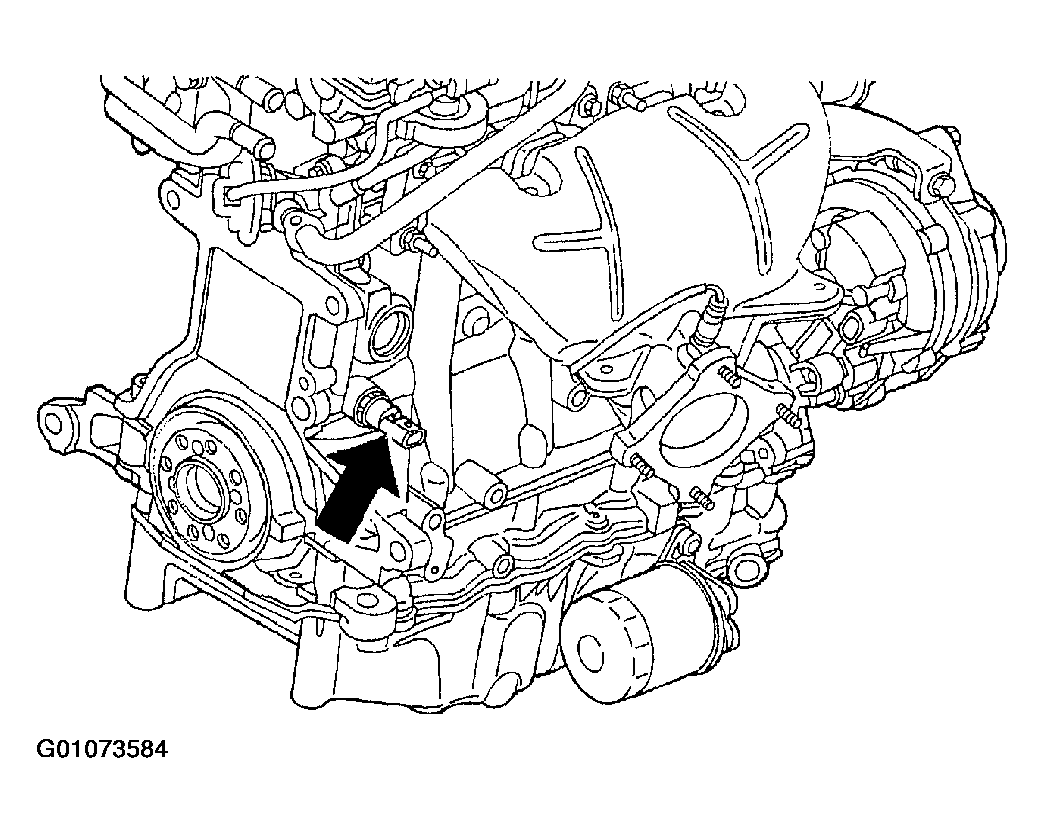

  1. Install oil pressure switch and connect electrical connector (Figure).
  2. Lower vehicle.
  3. Start engine and allow to run a minimum of 2 minutes.
  4. Shut engine off and check engine oil level. Adjust level as necessary. Refer to RIGHT MOUNT .
