Left Tail/Stop Lamp Connector End View

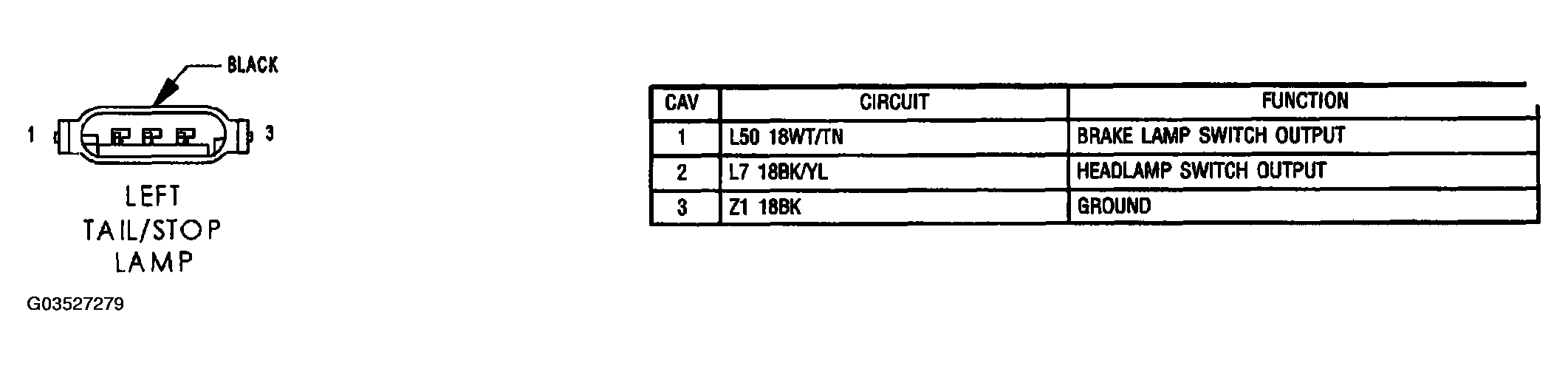

Fig 1: Left Tail/Stop Lamp Connector End View

G03527279

Courtesy of CHRYSLER GROUP, LLC
