Left Door Lock Switch Connector End View

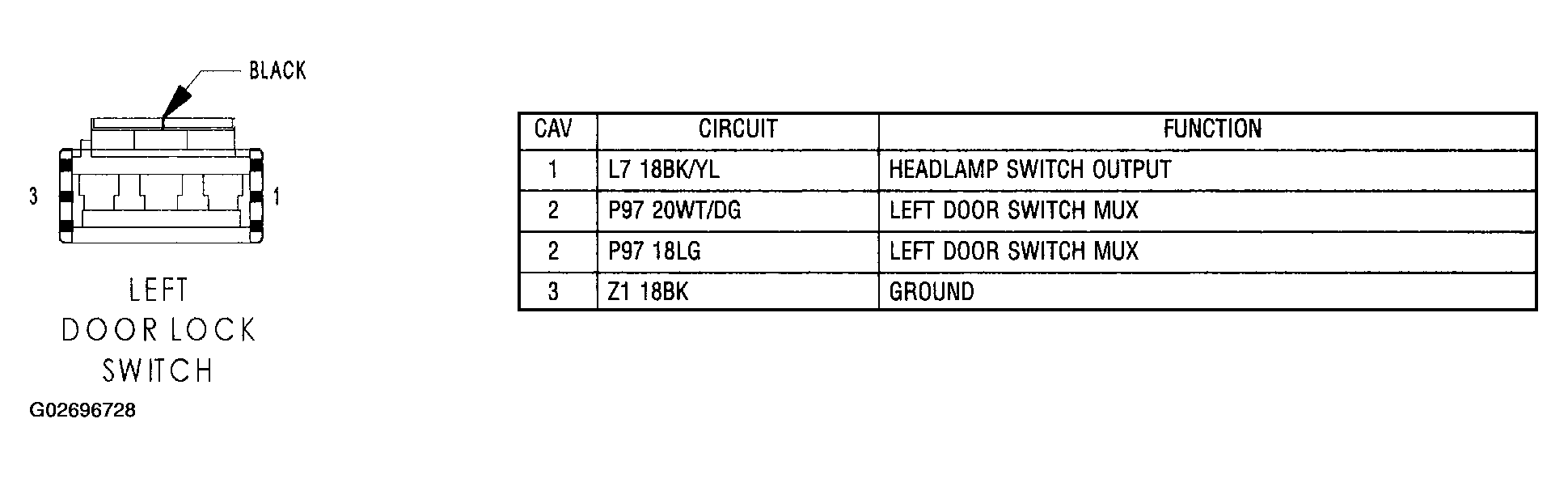

Fig 1: Left Door Lock Switch Connector End View

G02696728

Courtesy of CHRYSLER GROUP, LLC
