Front Wiper/Washer Switch Connector End View

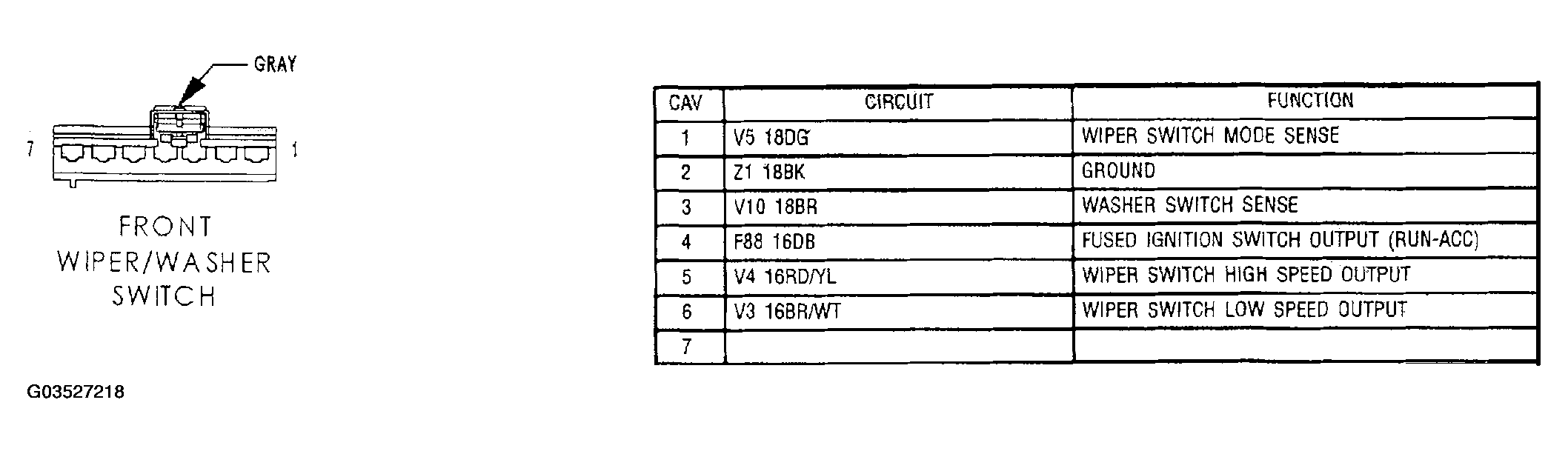

Fig 1: Front Wiper/Washer Switch Connector End View

G03527218

Courtesy of CHRYSLER GROUP, LLC
