Dome Lamp/Intrusion Sensor Connector End View
Dome Lamp/Intrusion Sensor Connector End View

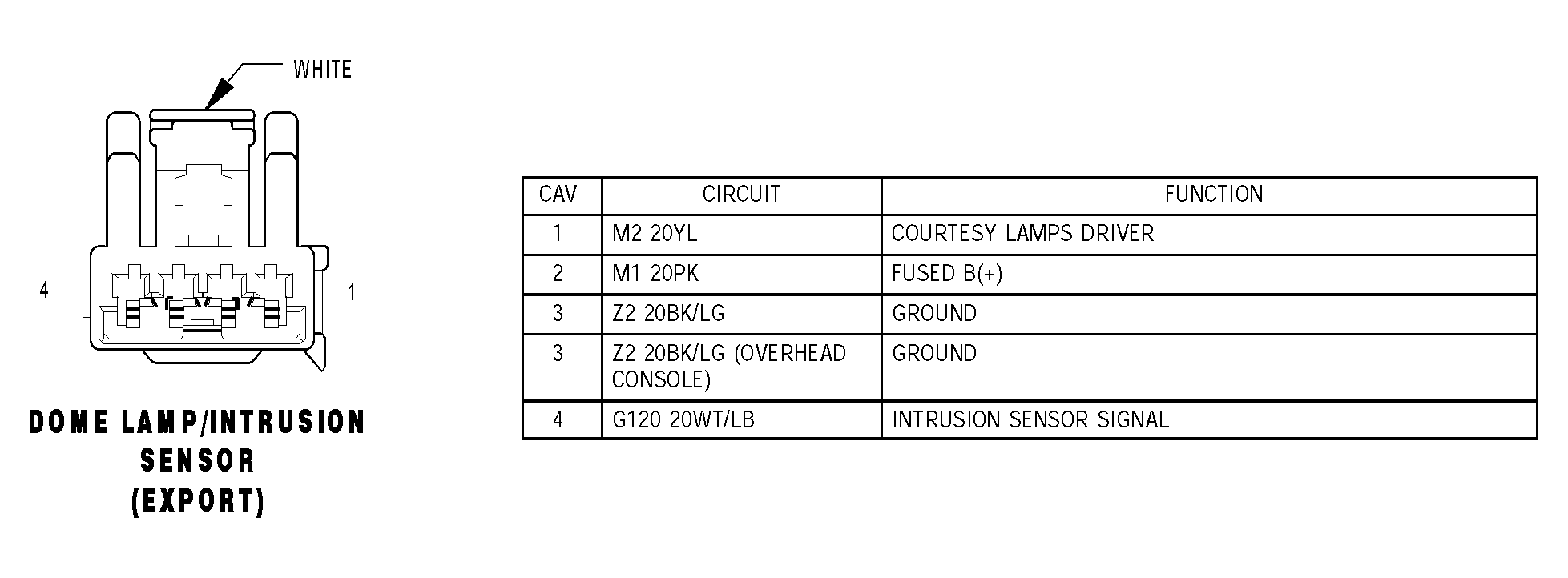

Fig 1: Dome Lamp/Intrusion Sensor Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
