A/C Heater Control Switch Connector End View

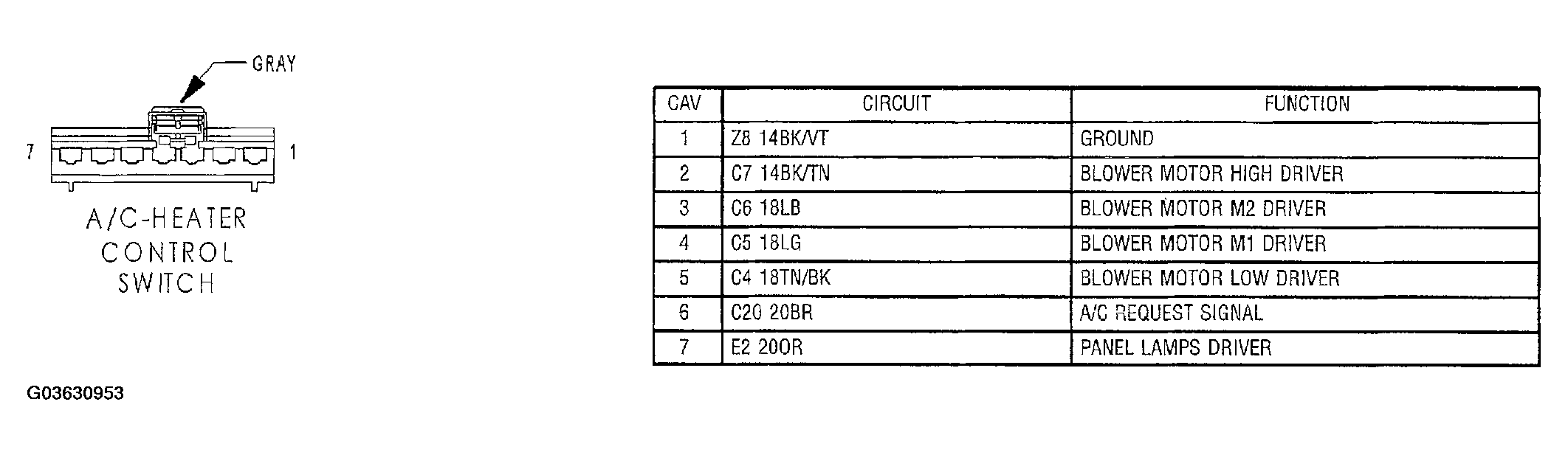

Fig 1: A/C Heater Control Switch Connector End View

G03630953

Courtesy of CHRYSLER GROUP, LLC
