Component Locations

NOTE: For component locations, see Fig 1 - Fig 5 .

COMPONENT LOCATIONS

Component	Location
Fuse Block	At Lower Left Front Of Dash. See Fig 1 .
Heated Seat Module	On Seat Track, Under Seat. See Fig 2 .
Heated Seat Relay	In Fuse Block. See Fig 4 - Fig 5 .
Power Distribution Center	On Left Side Of Engine Compartment. See Fig 3 .

Fig 1: Locating Fuse Block

Courtesy of DAIMLERCHRYSLER CORP.

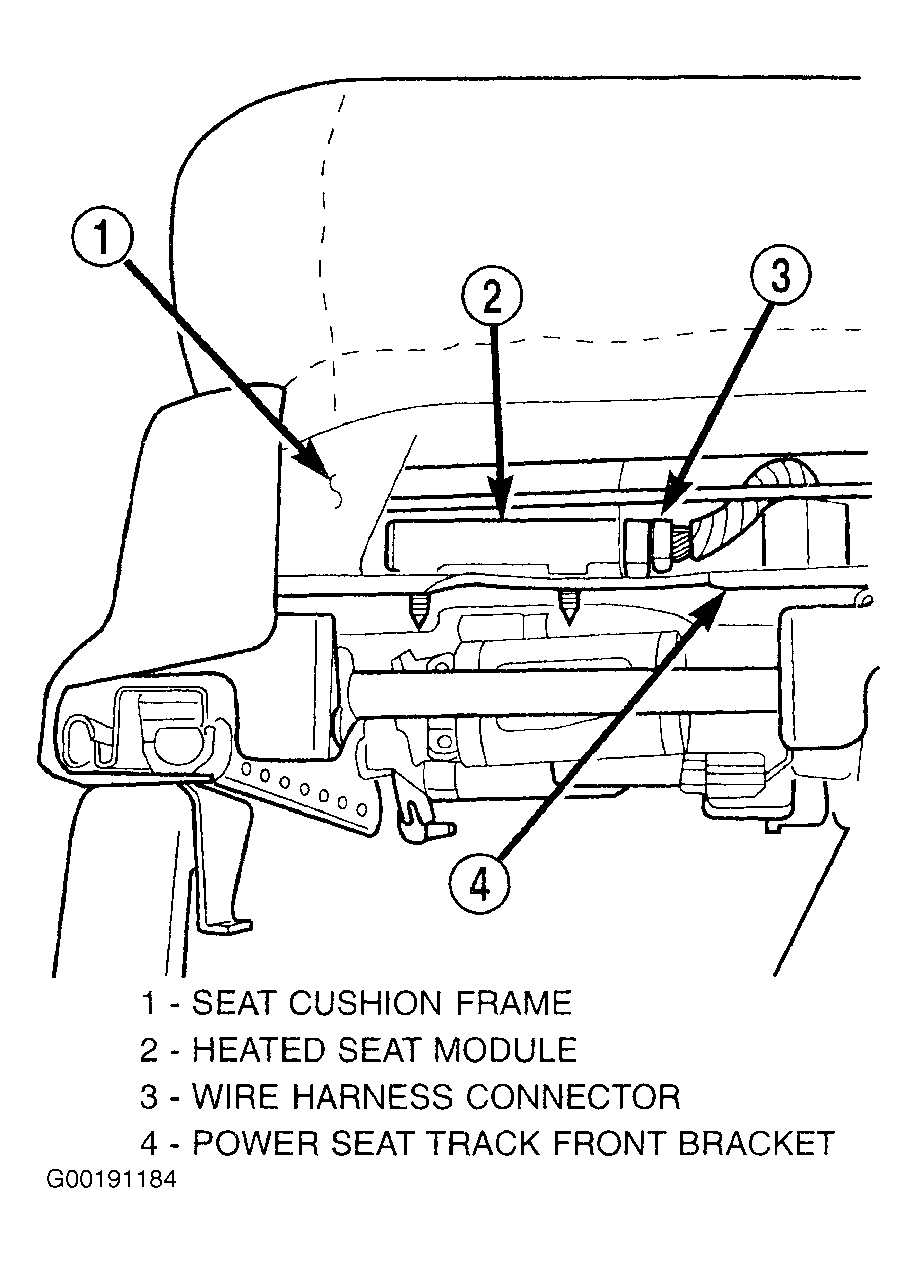

Fig 2: Locating Heated Seat Module

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Locating Power Distribution Center (PDC)

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Fuse Block (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Identifying Fuse Block (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
