Vehicle Speed Sensor: Removal

Raise vehicle on hoist.
Disconnect the speed sensor connector. (Fig 1).
CAUTION: Clean area around speed sensor before removing to prevent dirt from entering the transaxle during speed sensor removal.

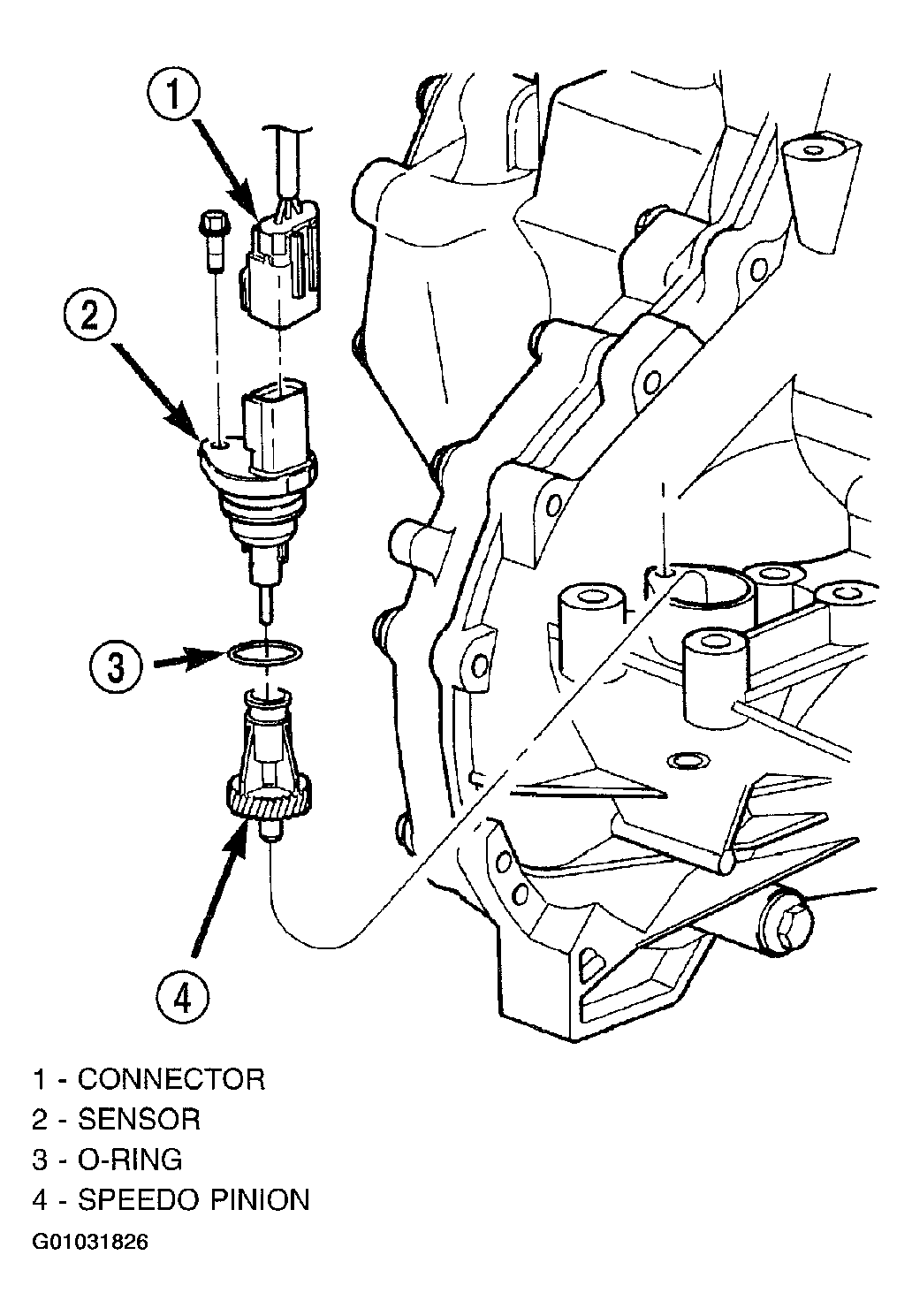

Fig 1: Removing/Installing Speed Sensor & Pinion
Courtesy of DAIMLERCHRYSLER CORP.
Remove speed sensor retaining bolt. (Fig 1).
Remove speed sensor from transaxle.
CAUTION: Carefully remove vehicle speed sensor so that sensor drive gear does not fall into transaxle. Should sensor drive gear fall into the transaxle during sensor removal, drive gear must be reattached to sensor.
Remove speed sensor drive gear from speed sensor.
