Shift Selector Shaft Bushing: Installation

  1. Position replacement bushing over selector shaft bore.
  2. Using an appropriate size deep-well socket, install bushing in selector shaft bore. (Fig 1).

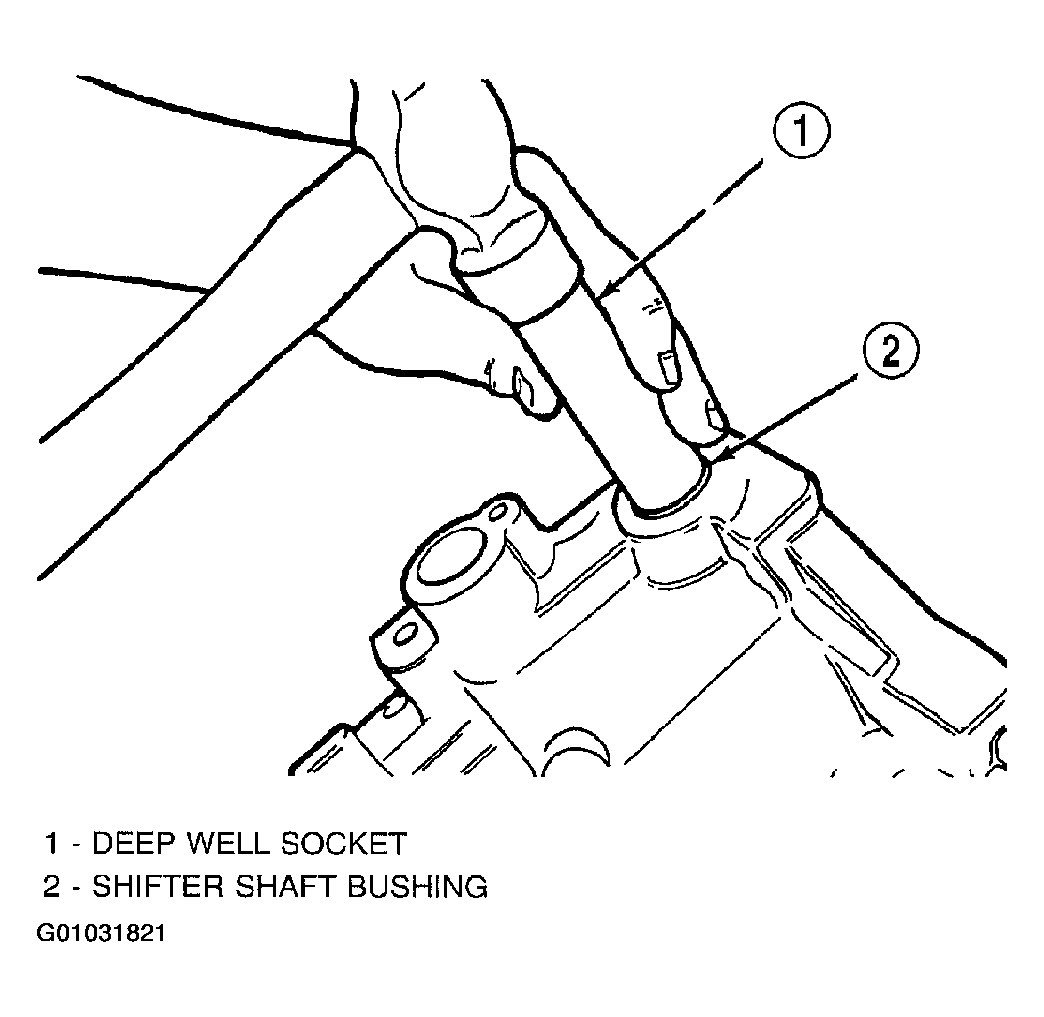

    Fig 1: Installing Selector Shaft Bushing
    G01031821Courtesy of DAIMLERCHRYSLER CORP.
