Shift Rail Bushing: Removal

  1. Thread tool #6786 into shift rail bushing.
  2. Install slide hammer #3752 onto tool.
  3. Remove bushing using slide hammer and tool assembly. (Fig 1).

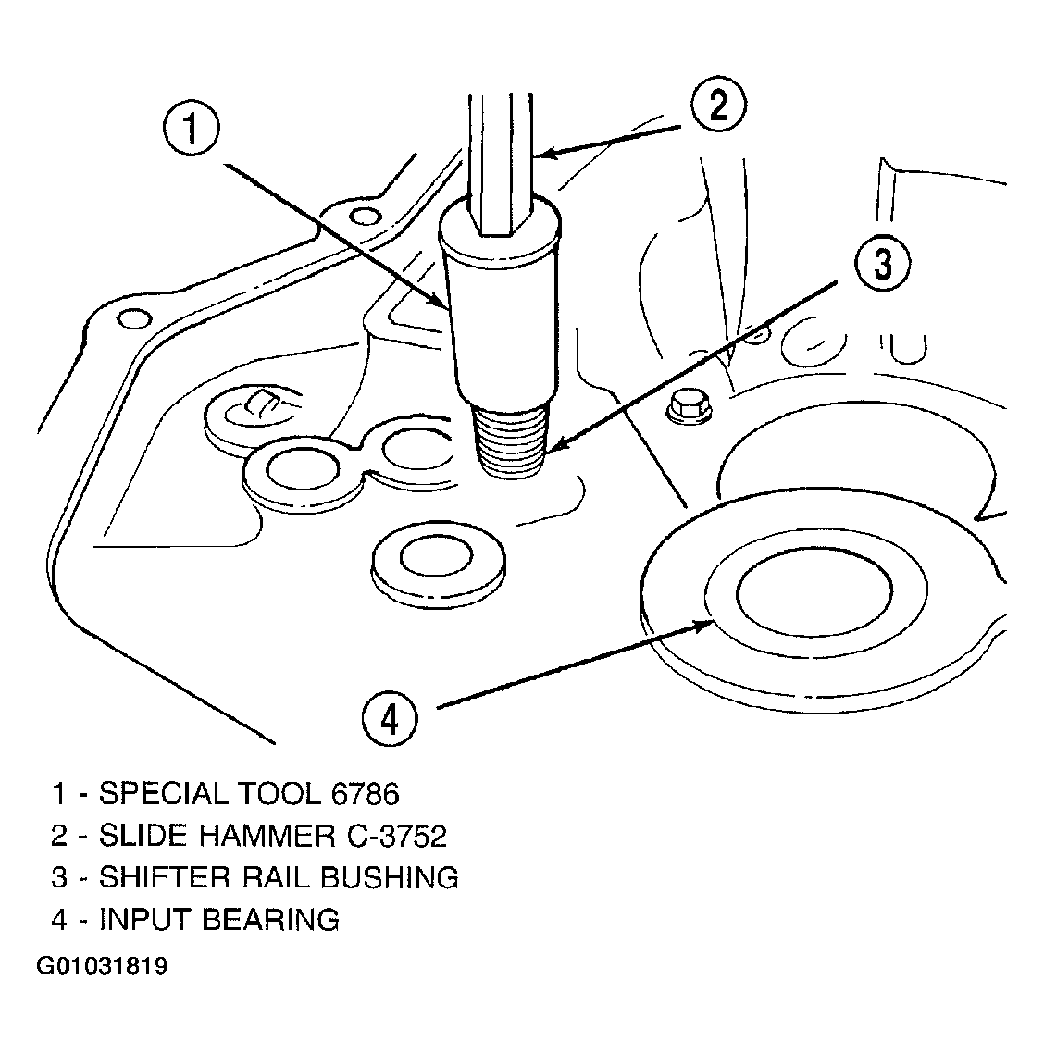

    Fig 1: Removing/Installing Shift Rail Bushing
    G01031819Courtesy of DAIMLERCHRYSLER CORP.
