Input Bearing And Sleeve: Installation

Apply coating of Loctite® sealant on bearing outer diameter. Position sleeve and bearing assembly at input bearing bore.
Install tool #C-4680-1 over input bearing. (Fig 1).

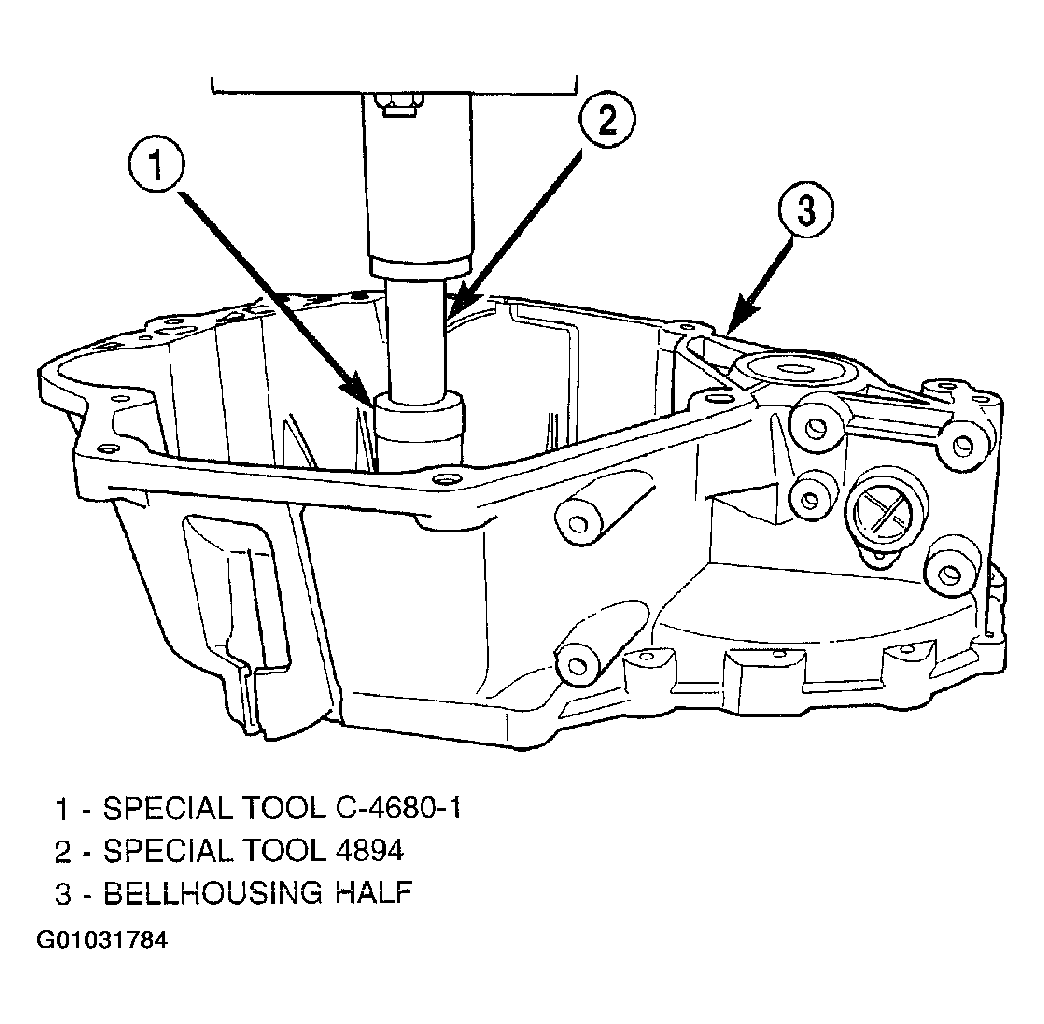

Fig 1: Installing Input Bearing Tool
Courtesy of DAIMLERCHRYSLER CORP.
Using the spacer tool #4894 and shop press, install input bearing into bore until it is fully seated. (Fig 2).

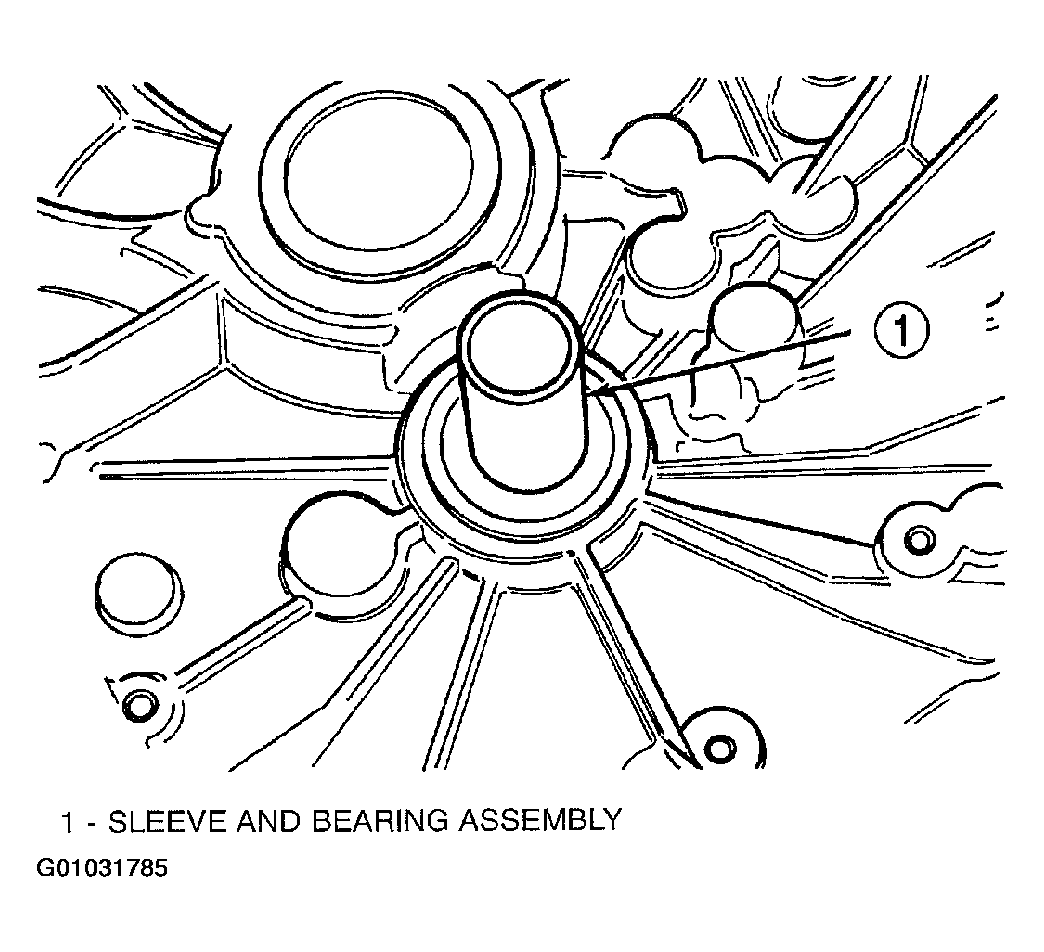

Fig 2: Installing Input Bearing
Courtesy of DAIMLERCHRYSLER CORP.
