Back-Up Lamp Switch: Installation

  1. Install back-up lamp switch. Teflon tape or equivalent must be used on switch threads. Tighten switch to 24 N.m (18 ft. lbs.).
    CAUTION: Do not overtighten switch.

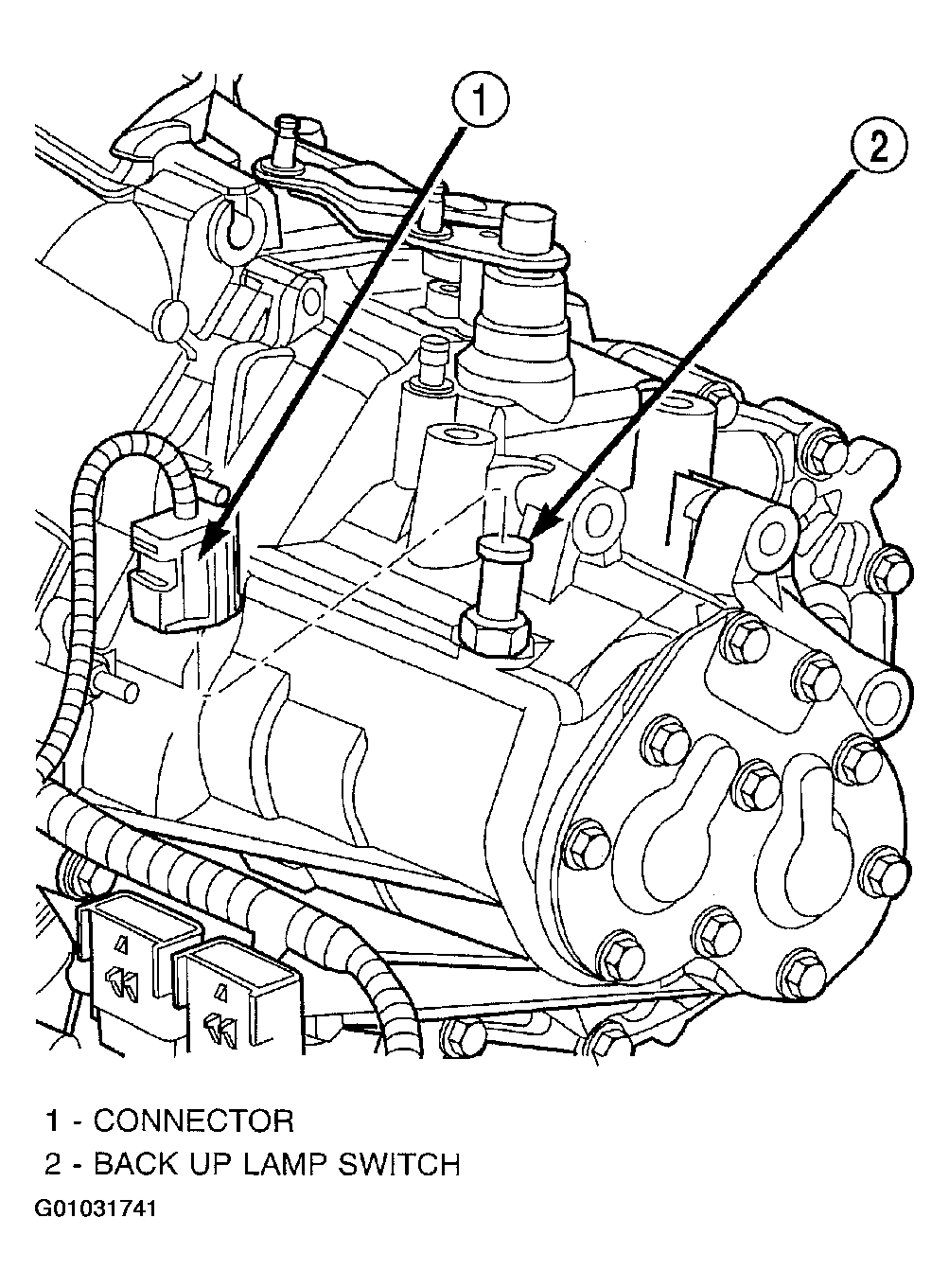

  2. Connect back-up lamp switch connector. (Figure).
  3. Lower vehicle.
  4. Verify back-up lamp operation.
