Clutch Interlock/UPSTOP Switch: Description: RHD

The RHD clutch interlock/upstop switch consists of a single, multifunction switch that is activated by hydraulic clutch master cylinder push rod travel. (Fig 1).

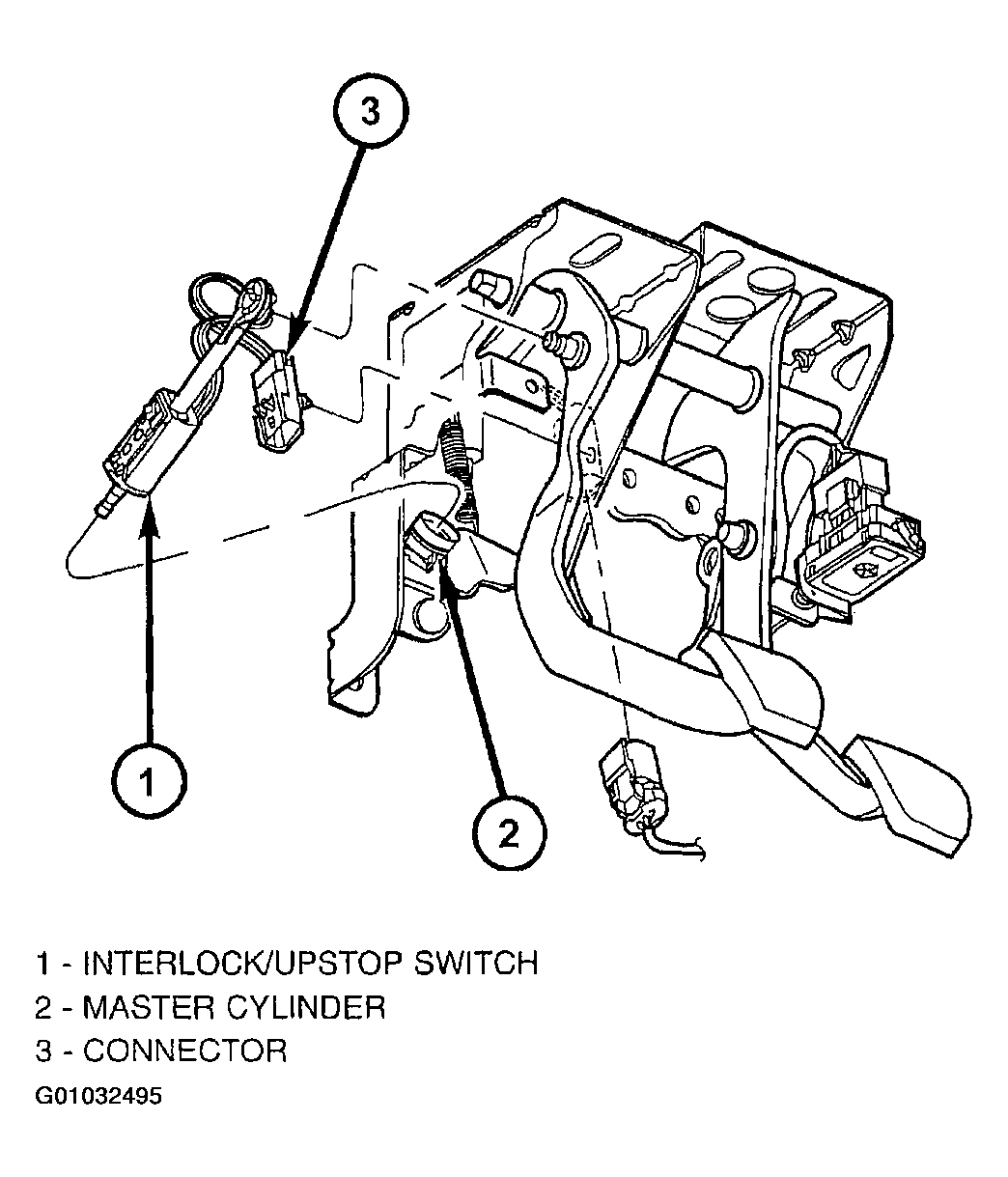

Fig 1: Identifying Clutch Interlock/Upstop Switch (RHD)

Courtesy of DAIMLERCHRYSLER CORP.
