Power Fold-Away Mirror Switch
- Remove power mirror switch from mounting position. See POWER MIRROR SWITCH
under REMOVAL & INSTALLATION.

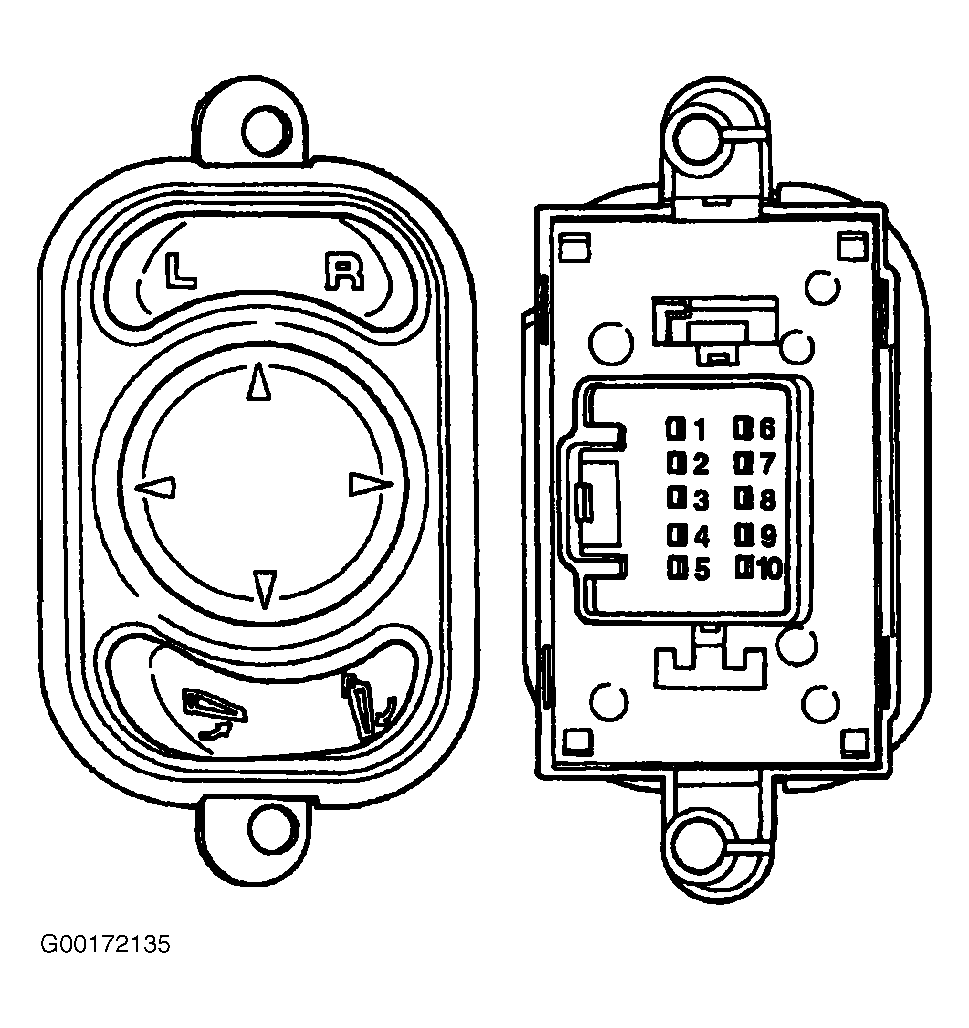

- Using an ohmmeter, test for continuity between the terminals of the switch. See Fig 1
and Fig 2
.
NOTE:

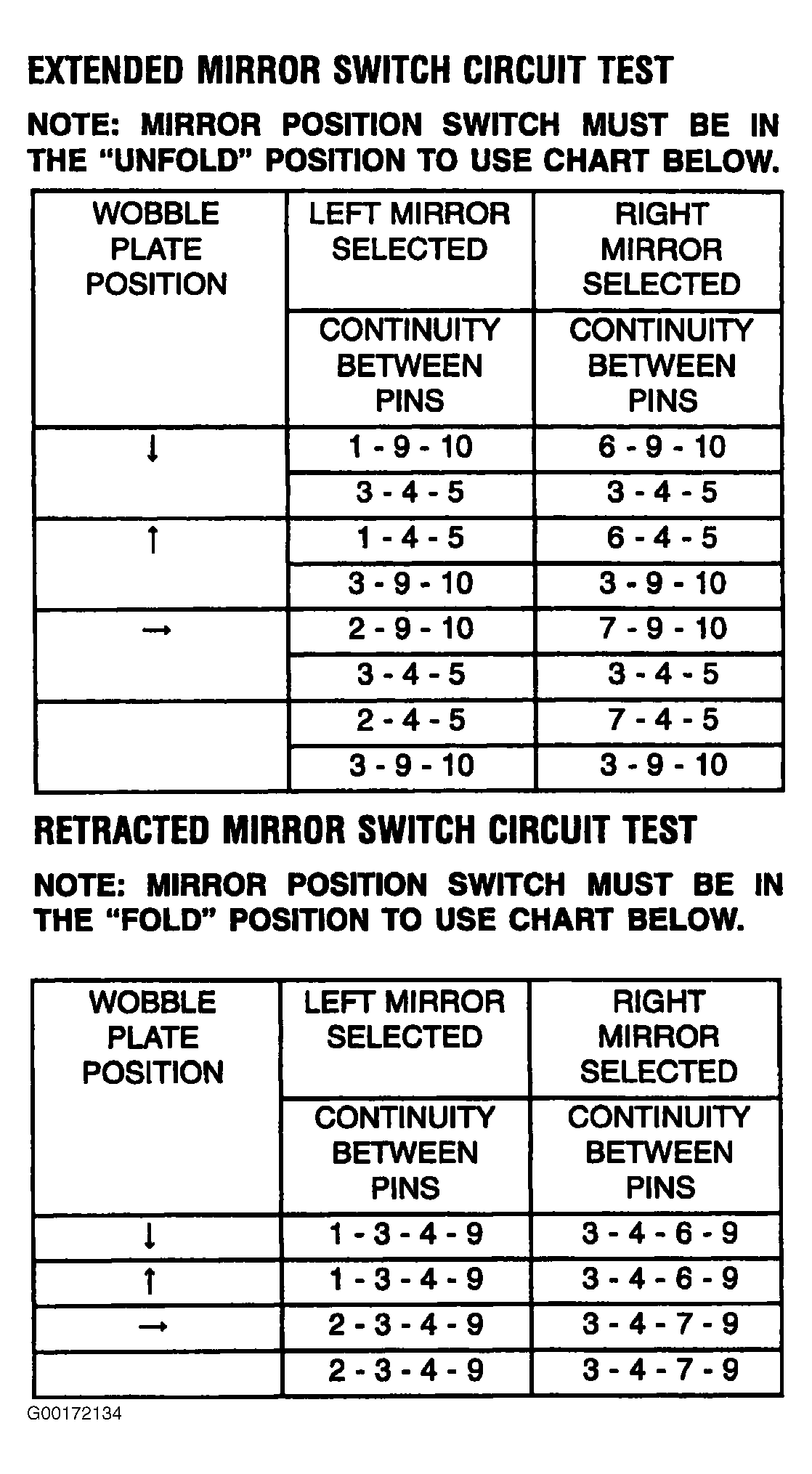

When testing using the chart in Fig 1
and Fig 2
, be certain to read the chart correctly. Example: When testing left mirror "DOWN", terminals No. 1, 9, 10 will show continuity to each other, and terminals No. 3, 4, 5 will show continuity to each other.
- If test results are not as specified, replace the switch.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
