Airbag Control Module Connector End View

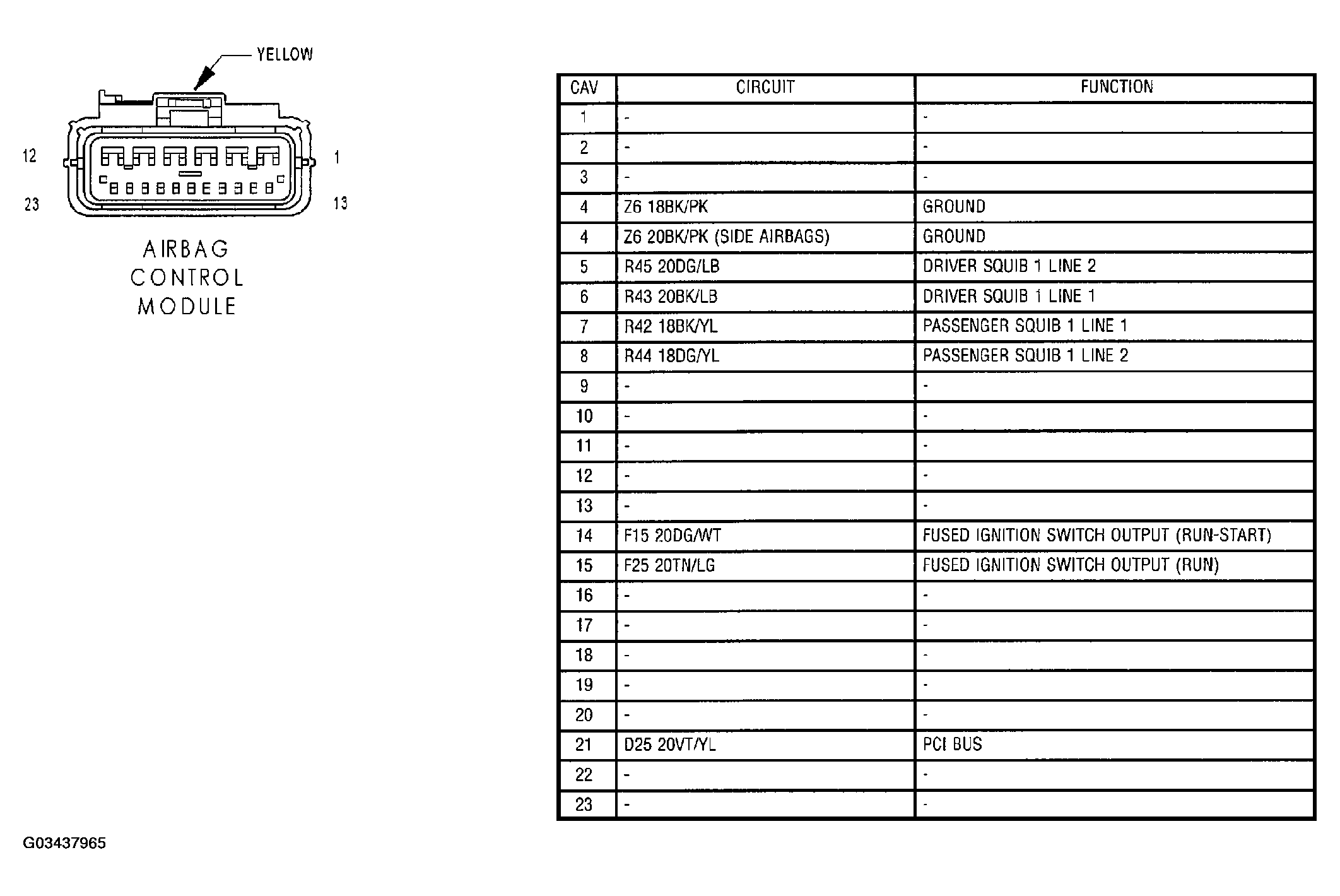

Fig 1: Airbag Control Module Connector End View

G03437965

Courtesy of CHRYSLER GROUP, LLC
