Driver Door Lock Motor/Ajar Switch Connector End View

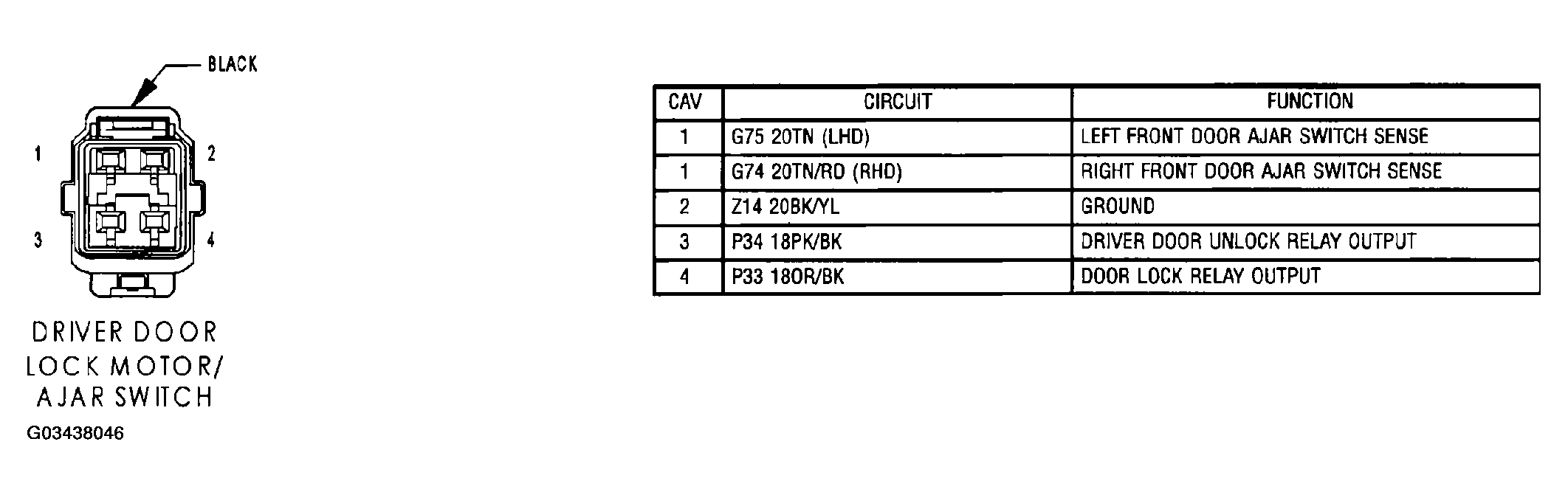

Fig 1: Driver Door Lock Motor/Ajar Switch Connector End View

G03438046

Courtesy of CHRYSLER GROUP, LLC
