Compact Disc Changer Radio Connector End View (C2)

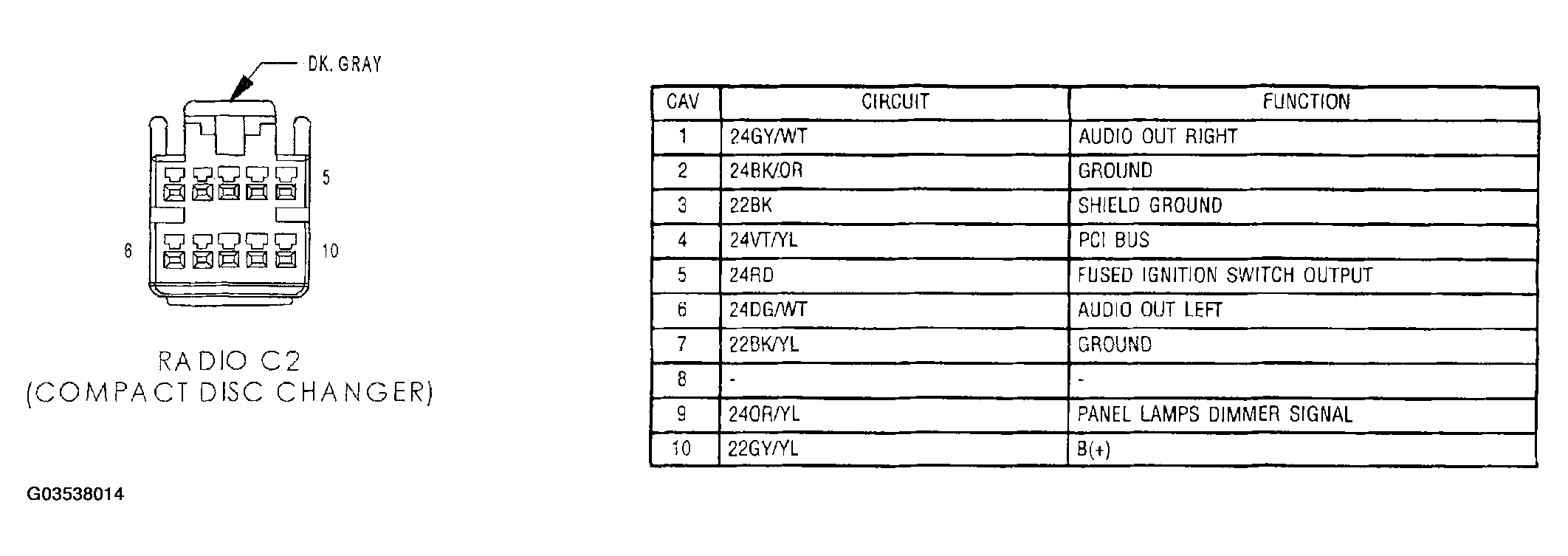

Fig 1: Compact Disc Changer Radio Connector End View (C2)

G03538014

Courtesy of CHRYSLER GROUP, LLC
