Transaxle Identification

The transaxle model, assembly number, and build date are on a metal I.D. tag that is attached to the end cover of the transaxle. (Fig 1). This information is also shown on a bar code label that is attached to the front of the transaxle. (Fig 2).

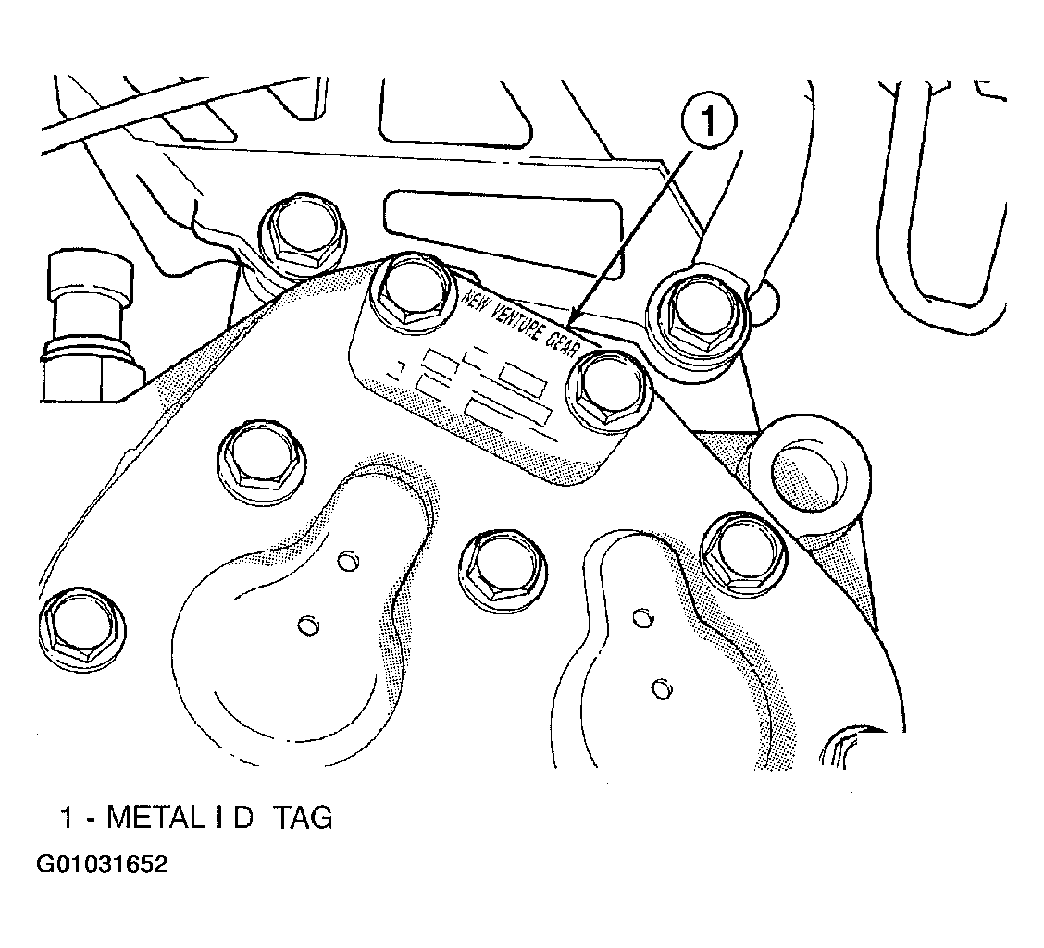

Fig 1: Identifying Metal I.D. Tag Location

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying Bar Code Label Location

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Transaxles use various final drive gear ratios in different vehicle applications. Therefore, it is necessary that the correct transaxle assembly number is used when ordering service parts.
