Master Cylinder: Description: LHD

The LHD clutch master cylinder mounts to the dash panel. (Fig 1). The master cylinder consists of an adjustable push rod, a piston and cylinder housing, a remote fluid reservoir, and an interconnecting hydraulic tube. (Fig 2).

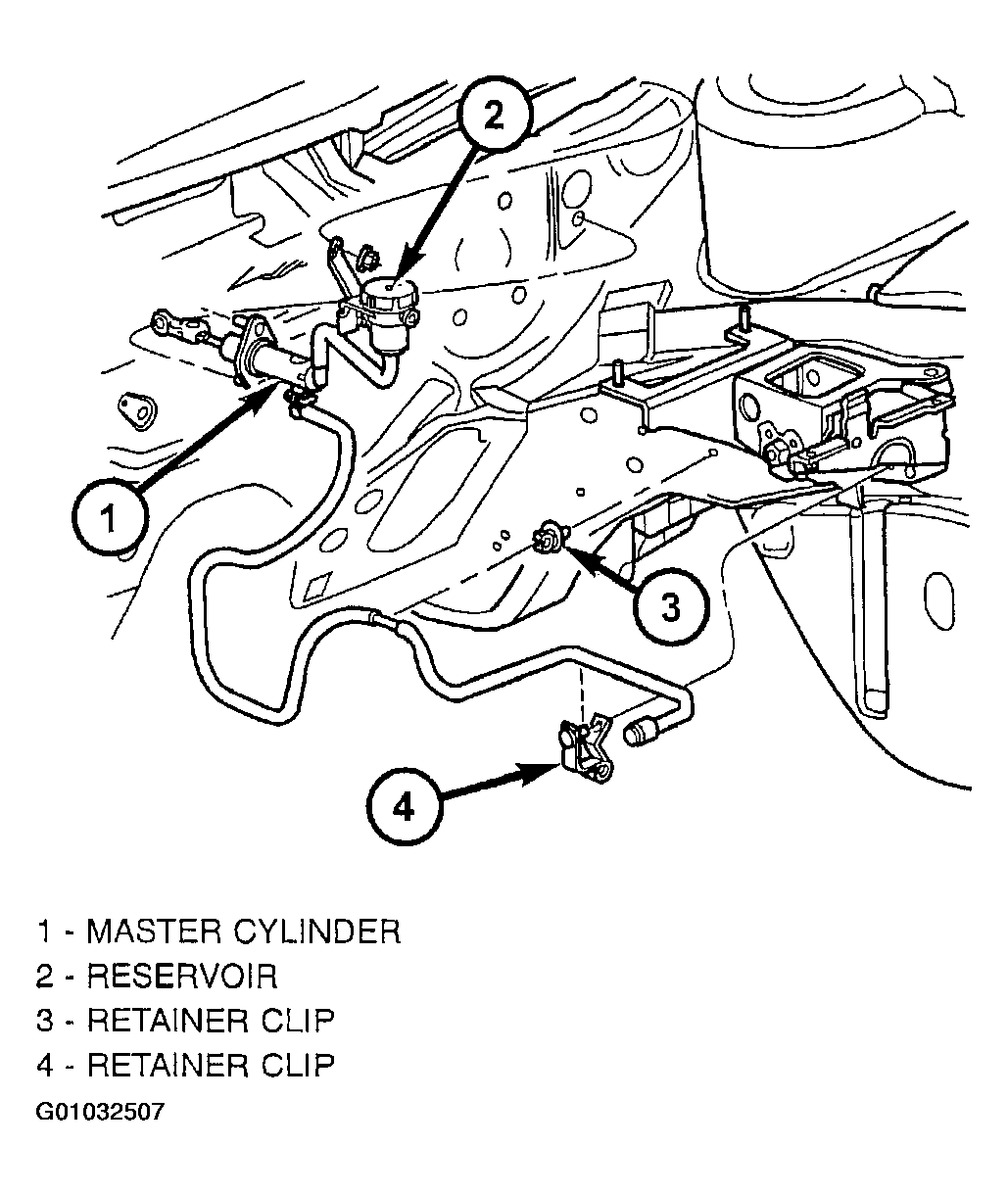

Fig 1: Identifying Clutch Master Cylinder - LHD

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying Clutch Hydraulic System - LHD

Courtesy of DAIMLERCHRYSLER CORP.
