Repair and Diagnosis: Transmission: Clutches: Clutch: Description: Hydraulic: Notes

The clutch hydraulic system consists of a clutch master cylinder assembly, and a clutch slave cylinder assembly, which may or may not incorporate an integral damper. (Fig 1 and Fig 2 ).

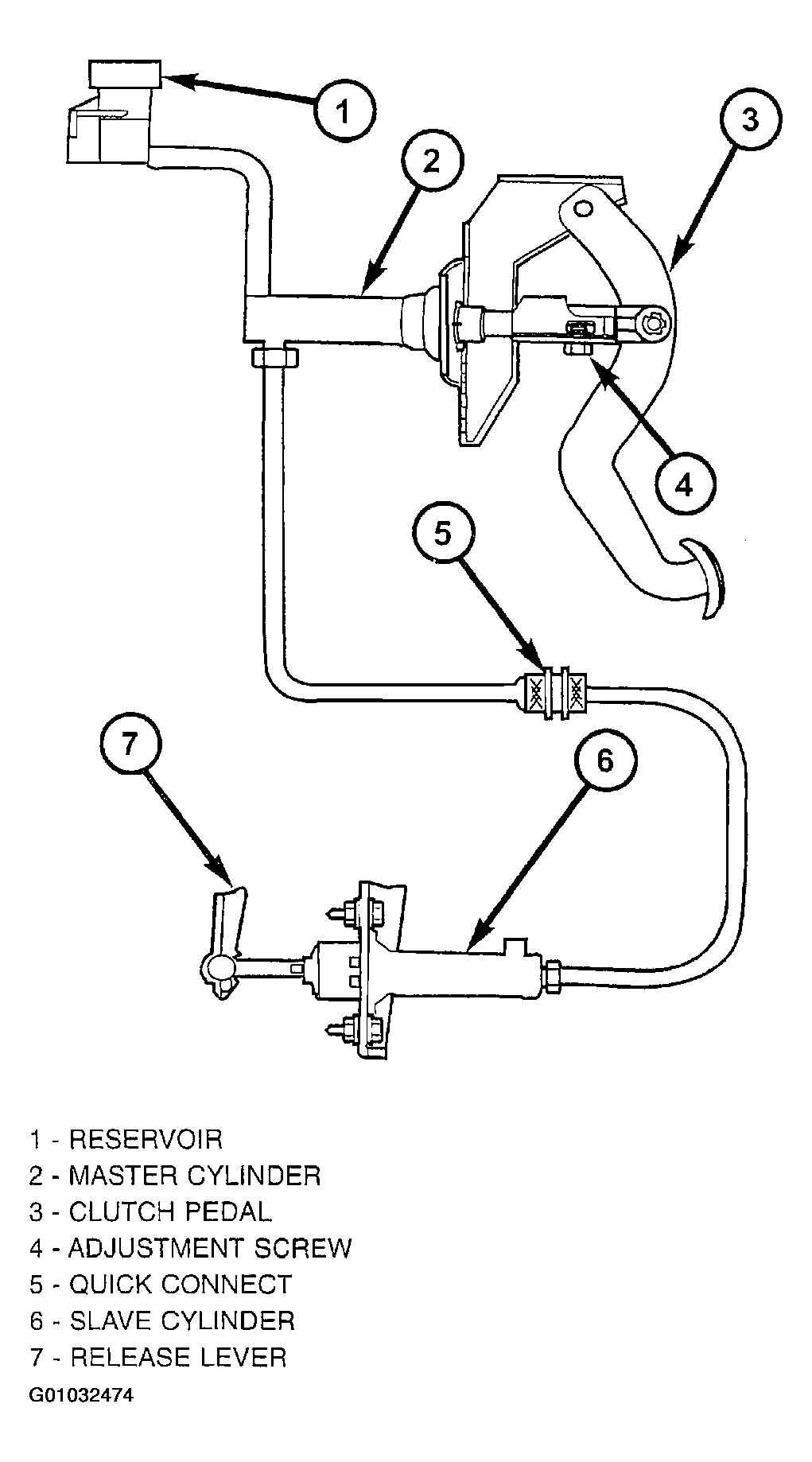

Fig 1: Identifying Clutch Hydraulic System - LHD

Courtesy of DAIMLERCHRYSLER CORP.

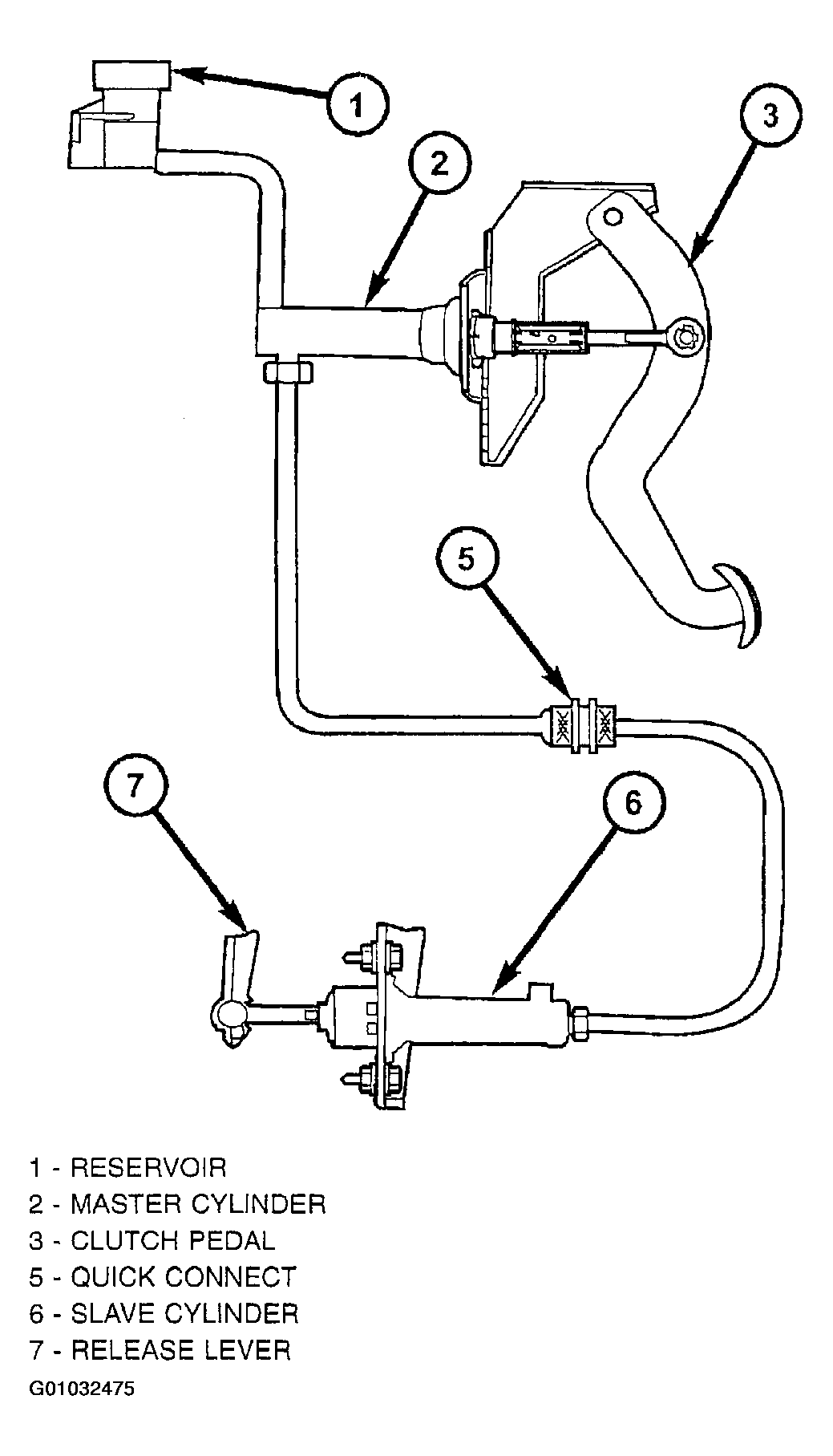

Fig 2: Identifying Clutch Hydraulic System - RHD

Courtesy of DAIMLERCHRYSLER CORP.
