Clutch Interlock/UPSTOP Switch: Removal: RHD

  1. Disconnect the master cylinder push rod from the pedal pin. (Fig 1). Inspect push rod retainer for damage. If it is damaged (broken/cracked), it must be replaced.

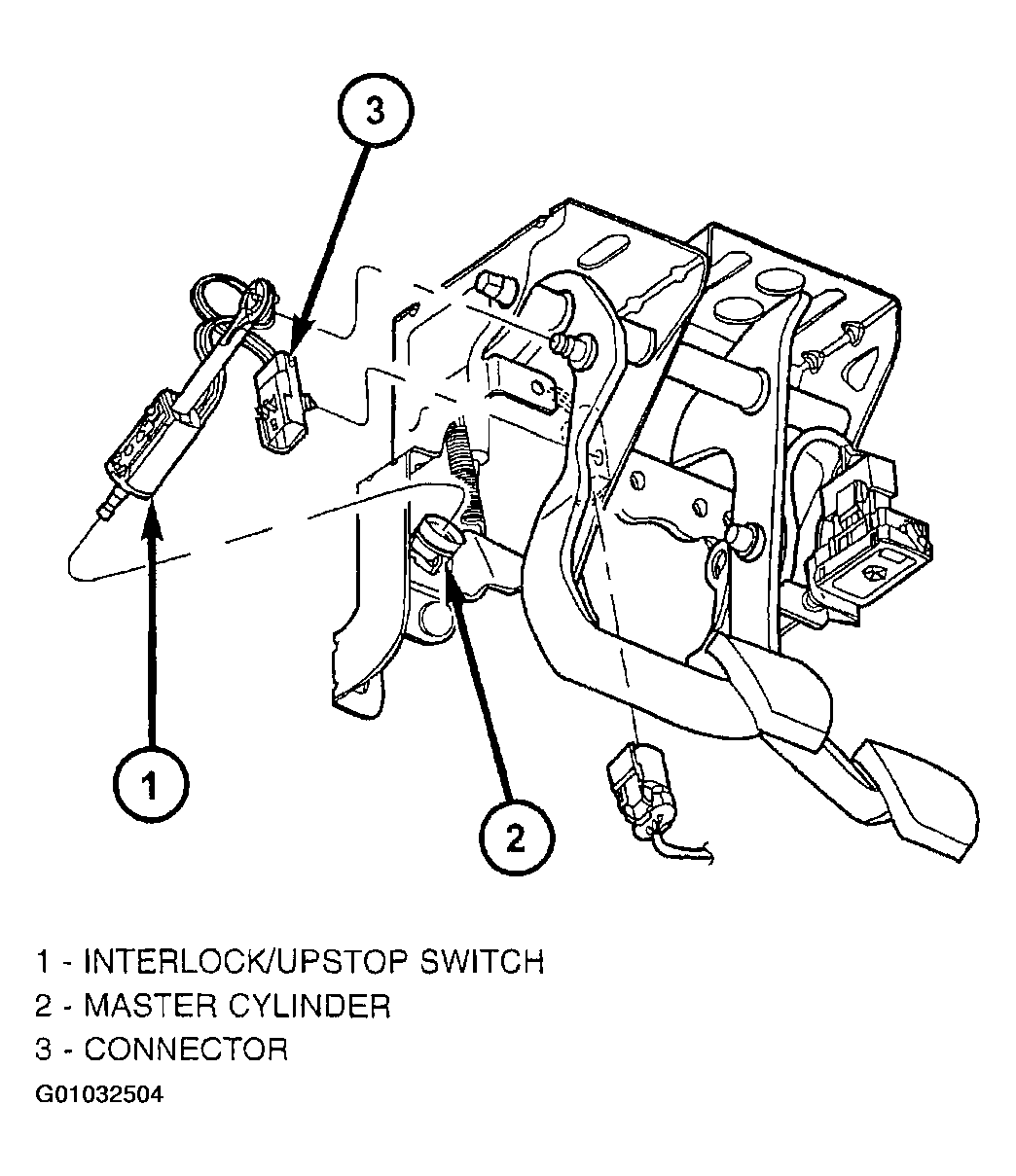

    Fig 1: Disconnecting/Reconnecting Clutch Interlock/Upstop Switch
    G01032504Courtesy of DAIMLERCHRYSLER CORP.
  2. Squeeze together the tangs on the switch cover plate and slide the plate off the switch housing.
  3. Disconnect the clutch interlock/upstop switch connector from the instrument panel wiring harness.
  4. Remove the switch from the vehicle.
