Water Pump: Removal

  1. Raise vehicle on a hoist. Remove right inner splash shield.
  2. Remove accessory drive belts. Refer to DRIVE BELTS .
  3. Drain the cooling system. Refer to STANDARD PROCEDURE .
  4. Remove power steering pump attaching bolts and set pump and assembly aside. Power steering lines DO NOT need to be disconnected.
  5. Remove upper and lower torque isolator struts. Refer to 2.0L SOHC 4-CYLINDER .
  6. Support the engine from bottom and remove right engine mount attaching bolt.
  7. Remove right engine mount bracket. Refer to 2.0L SOHC 4-CYLINDER .
  8. Remove the timing belt. Refer to 2.0L SOHC 4-CYLINDER .
  9. Remove the timing belt tensioner. Refer to 2.0L SOHC 4-CYLINDER .
  10. Remove camshaft sprocket and rear timing belt cover. (Refer to 2.0L SOHC 4-CYLINDER ).

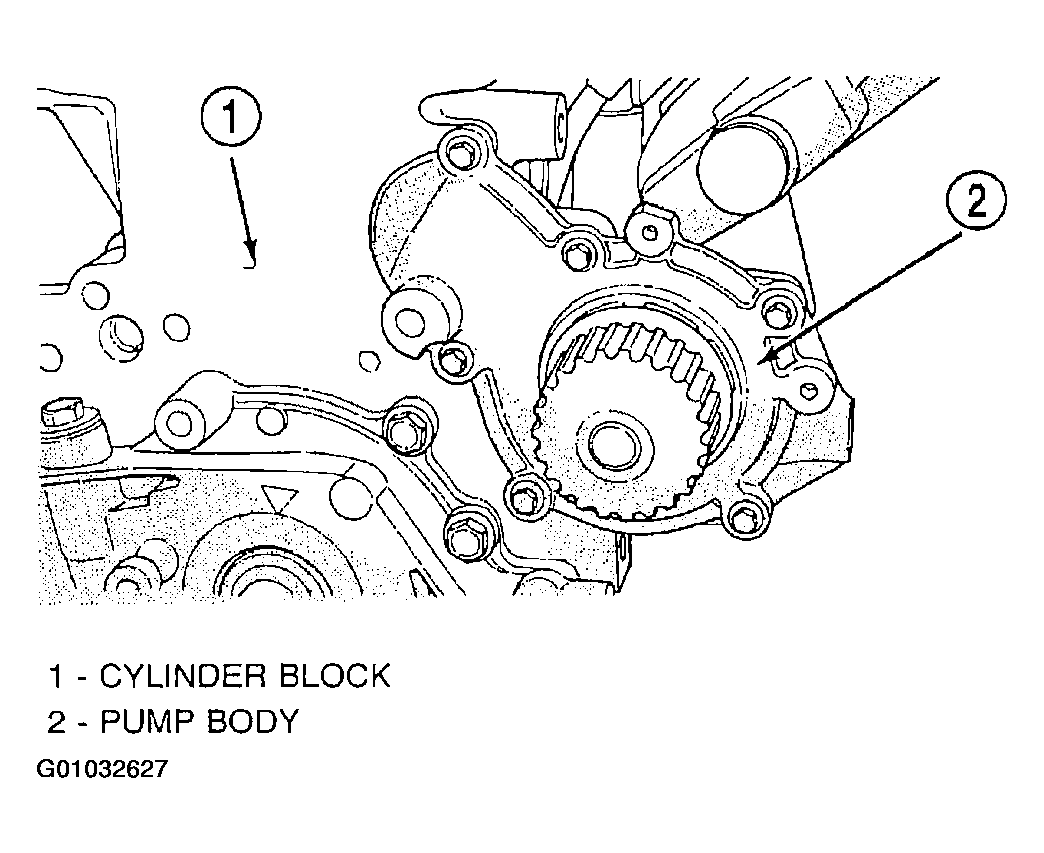

  11. Remove water pump attaching screws to engine and remove pump. (Figure).
