Powertrain Control Module C1 Connector End View - Black 38 Way

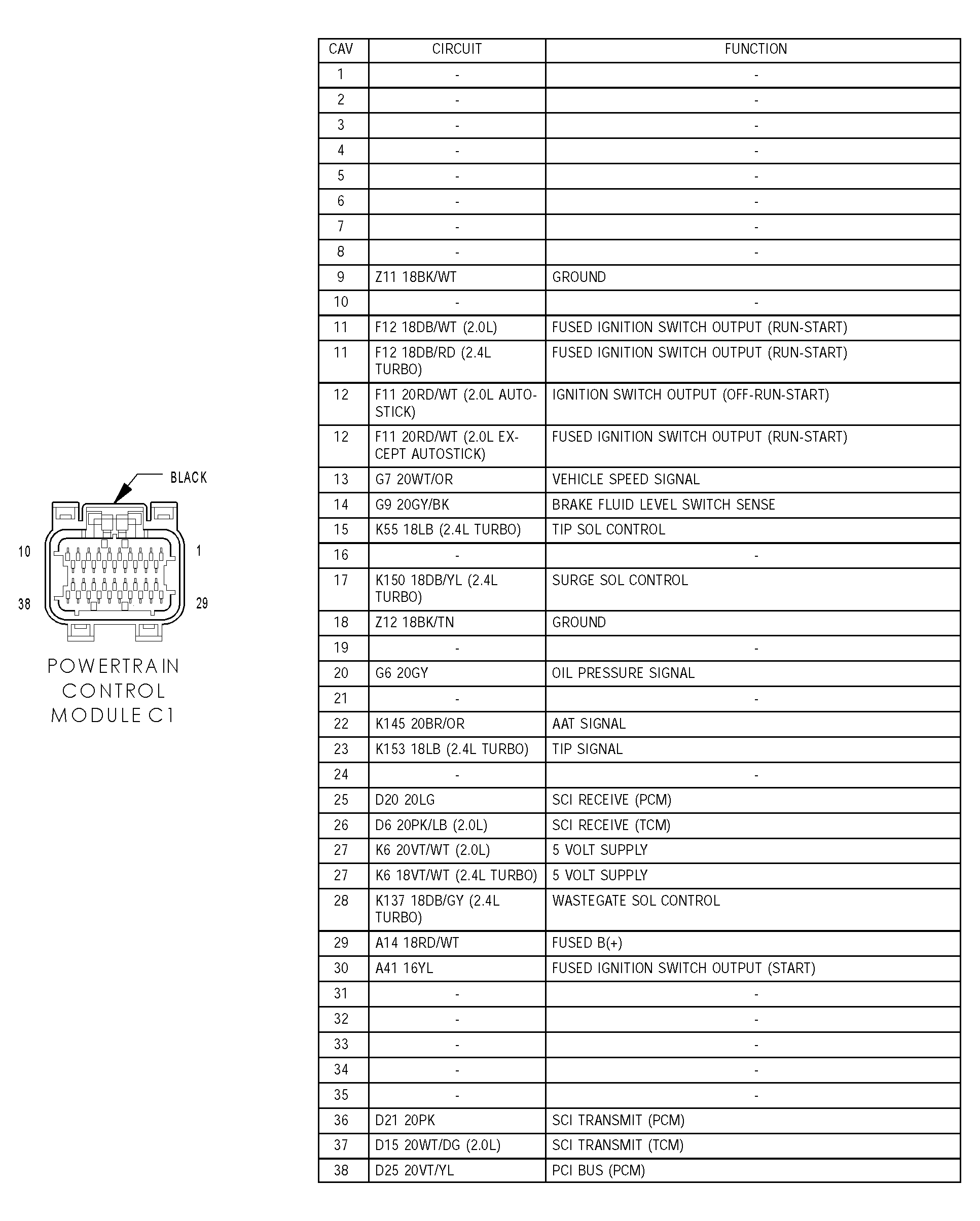

Fig 1: Powertrain Control Module C1 Connector End View - Black 38 Way

G04549826

Courtesy of CHRYSLER GROUP, LLC
