Low Note Horn Connector End View
Low Note Horn Connector End View

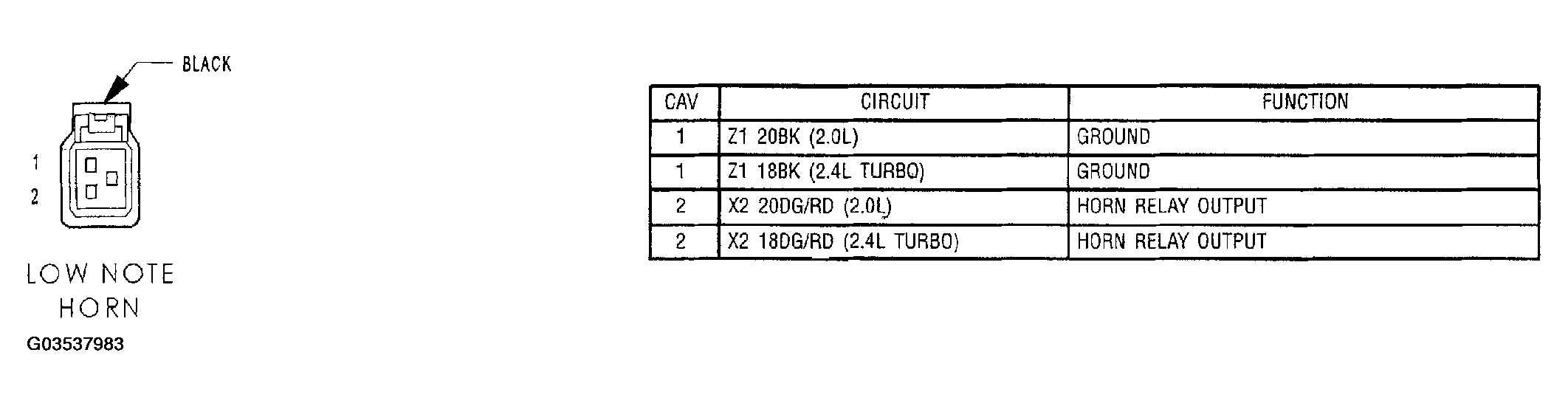

Fig 1: Low Note Horn Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
