Compass/Temperature Mirror Connector End View

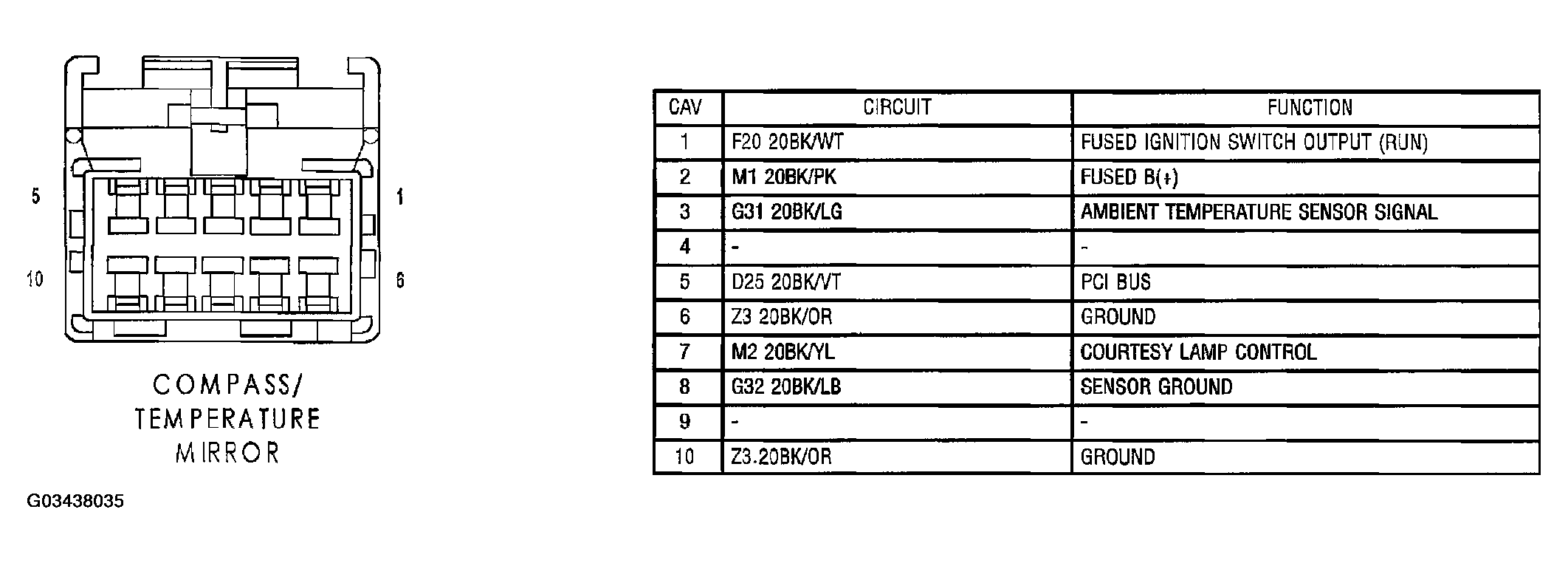

Fig 1: Compass/Temperature Mirror Connector End View

G03438035

Courtesy of CHRYSLER GROUP, LLC
