Accelerator Pedal Position Sensor Connector End View

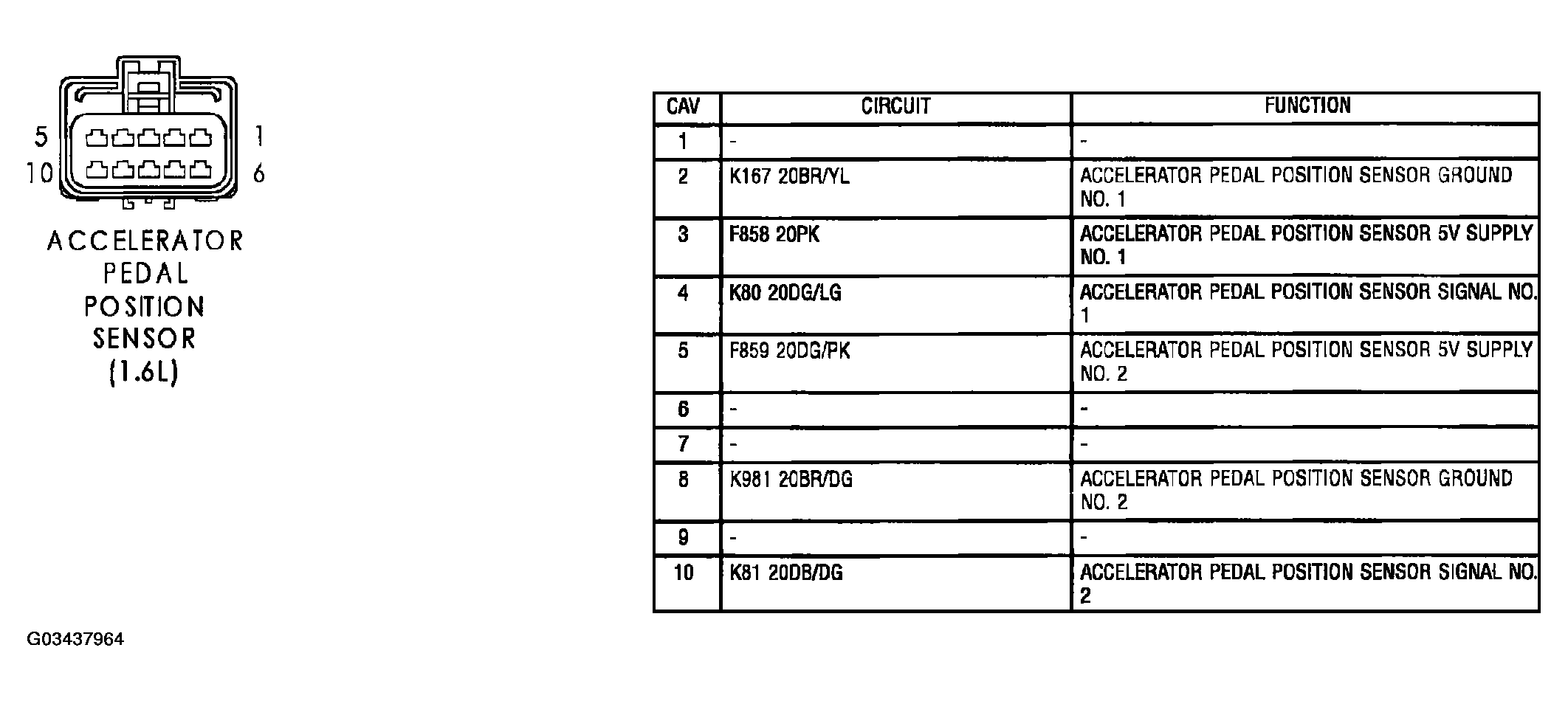

Fig 1: Accelerator Pedal Position Sensor Connector End View

G03437964

Courtesy of CHRYSLER GROUP, LLC
