A/C Cycling Switch Connector End View

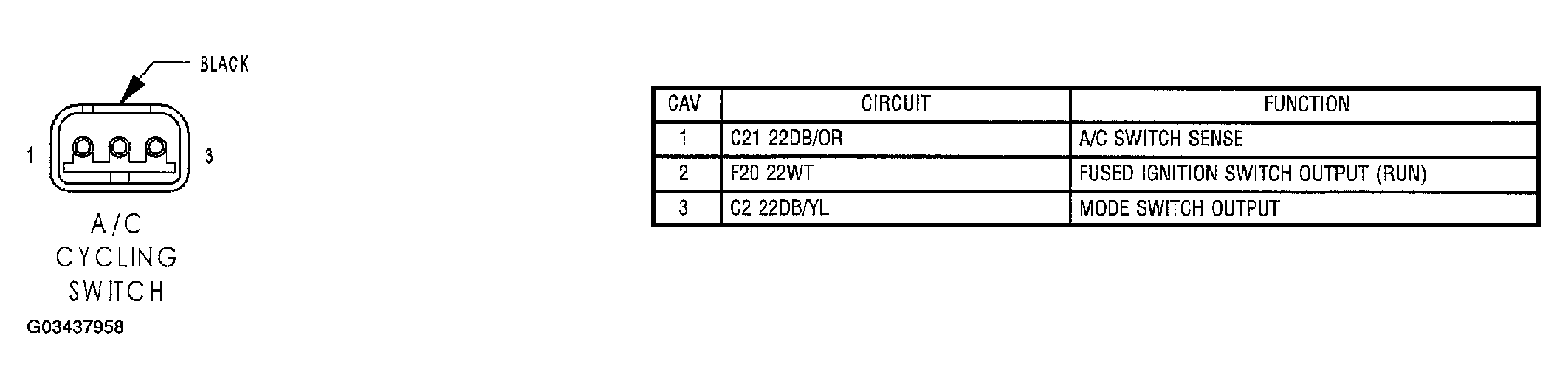

Fig 1: A/C Cycling Switch Connector End View

G03437958

Courtesy of CHRYSLER GROUP, LLC
