Engine Coolant Thermostat: Description

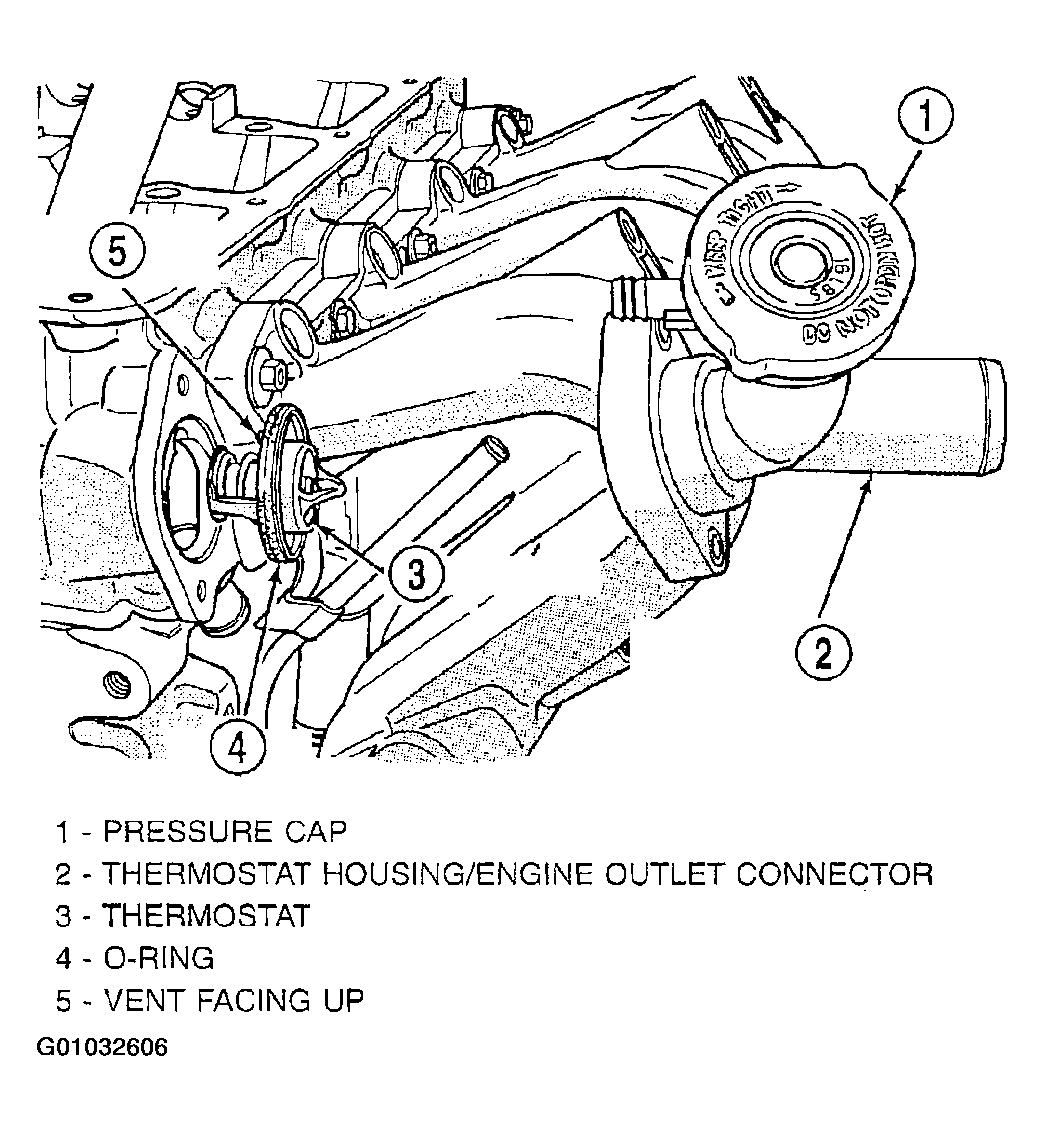

The engine thermostat is located on the left front side (radiator side) of the cylinder head in the thermostat housing/engine outlet connector. (Fig 1). The thermostat has an air bleed (vent) located in the flange and a "O"-ring for sealing incorporate on it. A relief in the thermostat housing/outlet connector is provided for the "O"- ring.
