Body Side Inline Connector End View (C301)

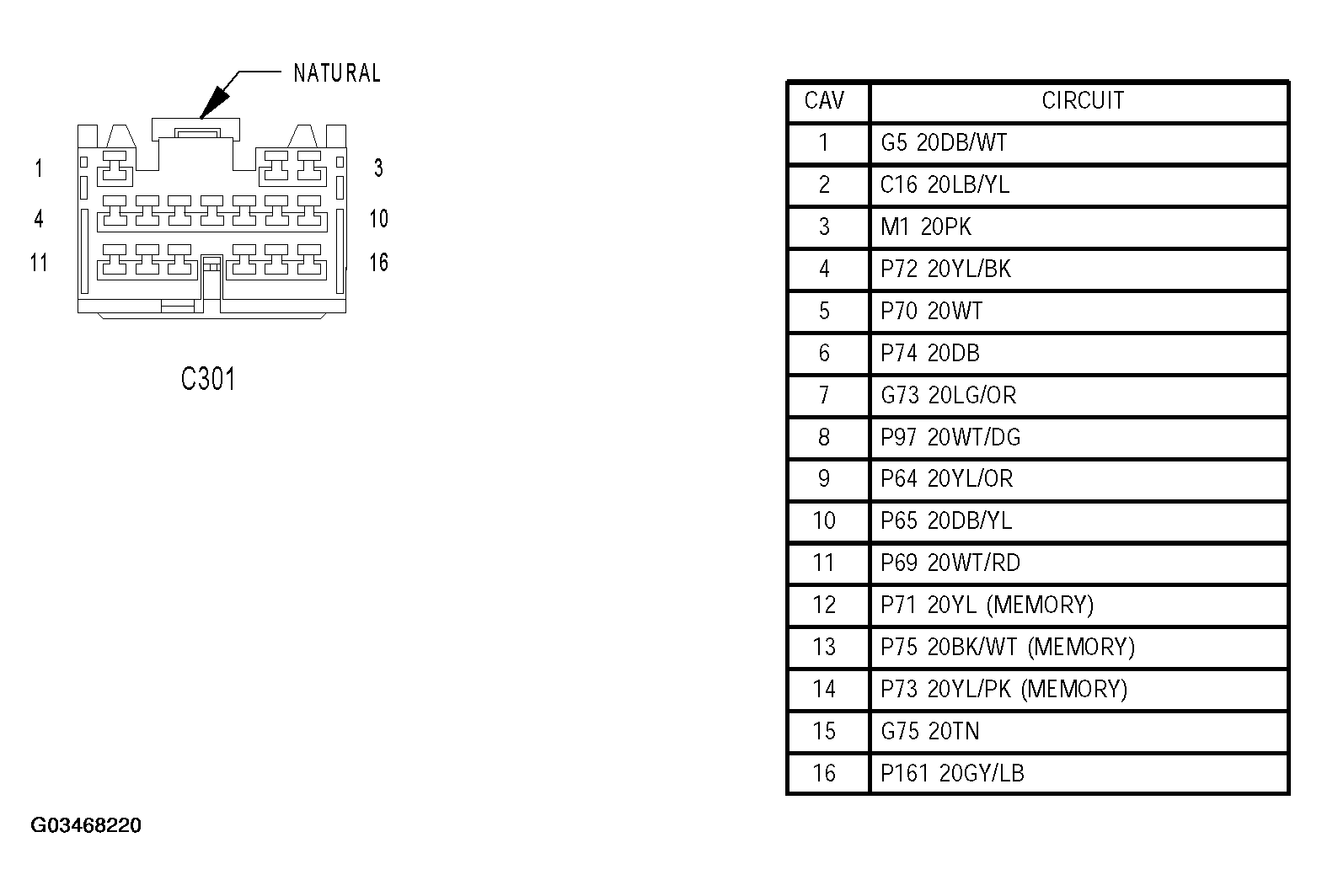

Fig 1: Body Side Inline Connector End View (C301)

G03468220

Courtesy of CHRYSLER GROUP, LLC
