Installation - Left Side

  1. Install converter.

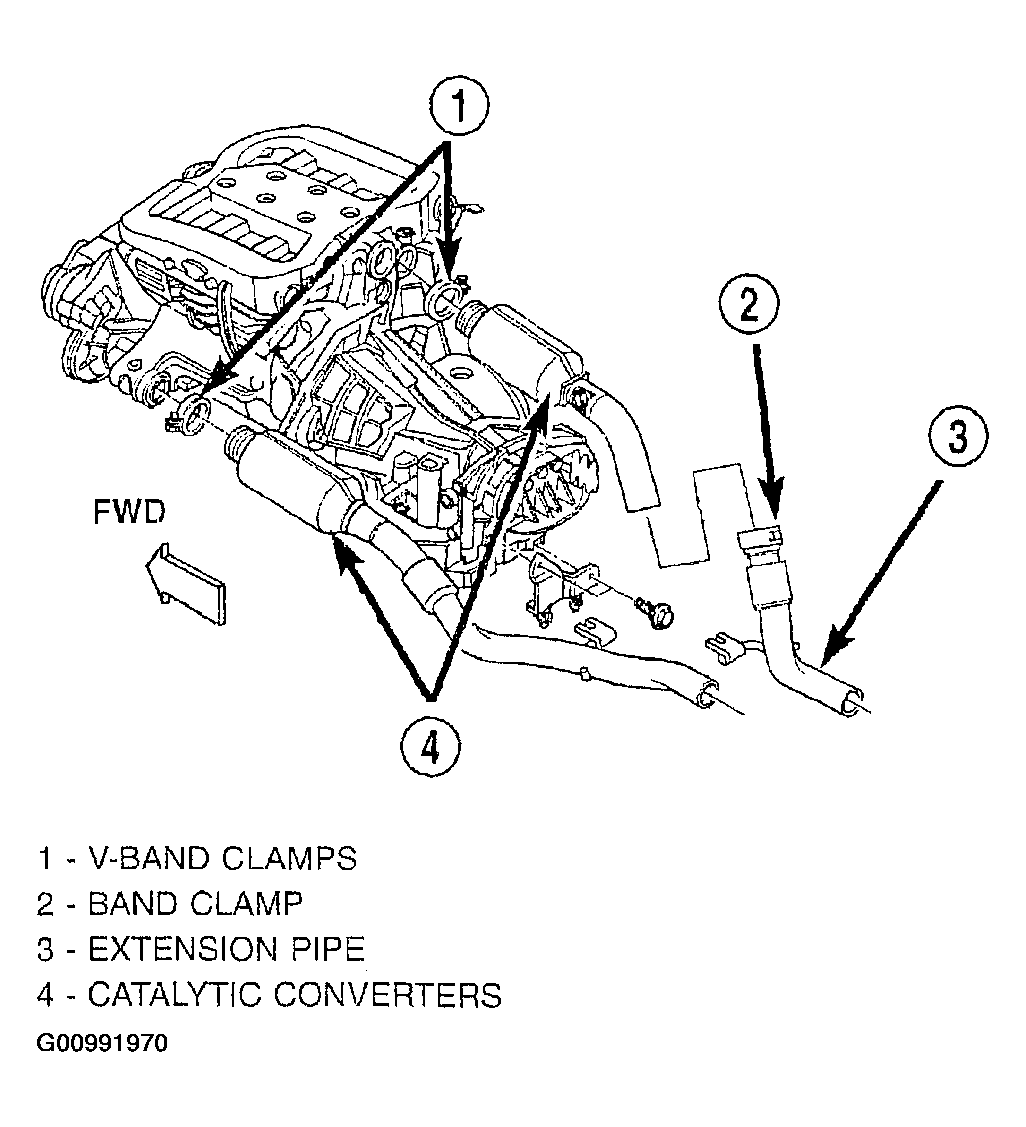

  2. Attach a NEW V-Band clamp and tighten to 11 N.m (100 in. lbs.) (Figure).
  3. Install and/or tighten nut attaching pipe to transaxle bracket to 47 N.m (35 ft. lbs.) (Figure).
  4. Install downstream oxygen sensor and connect electrical connector (Refer to DOWNSTREAM OXYGEN SENSOR ).
  5. Install exhaust system (Refer to INSTALLATION - EXHAUST SYSTEM ).
  6. Lower vehicle.
