Schematics And Diagrams

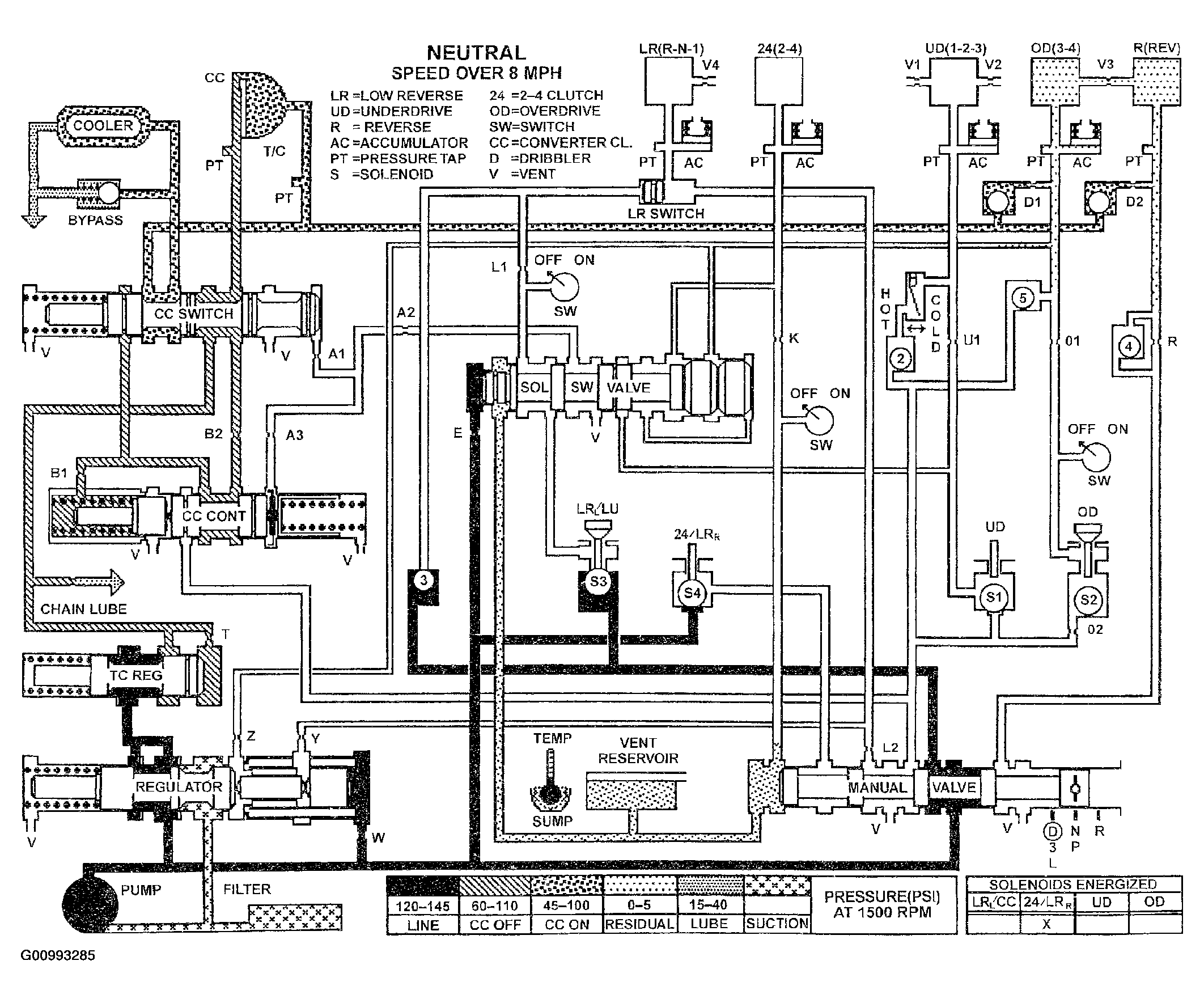

Fig 1: Neutral (Speed Over 8 mph)

Courtesy of DAIMLERCHRYSLER CORP.

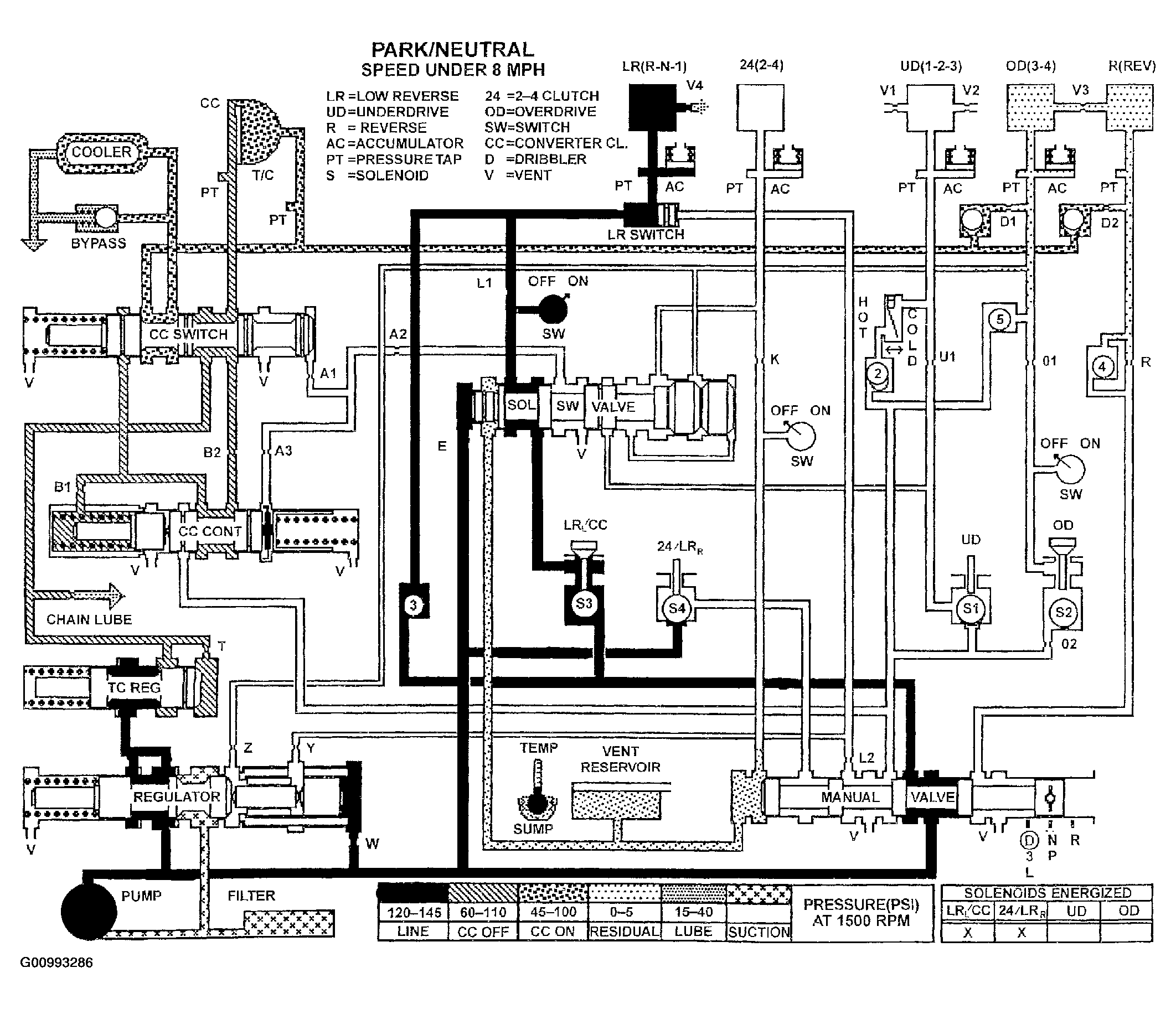

Fig 2: Park/Neutral (Speed Under 8 mph)

Courtesy of DAIMLERCHRYSLER CORP.

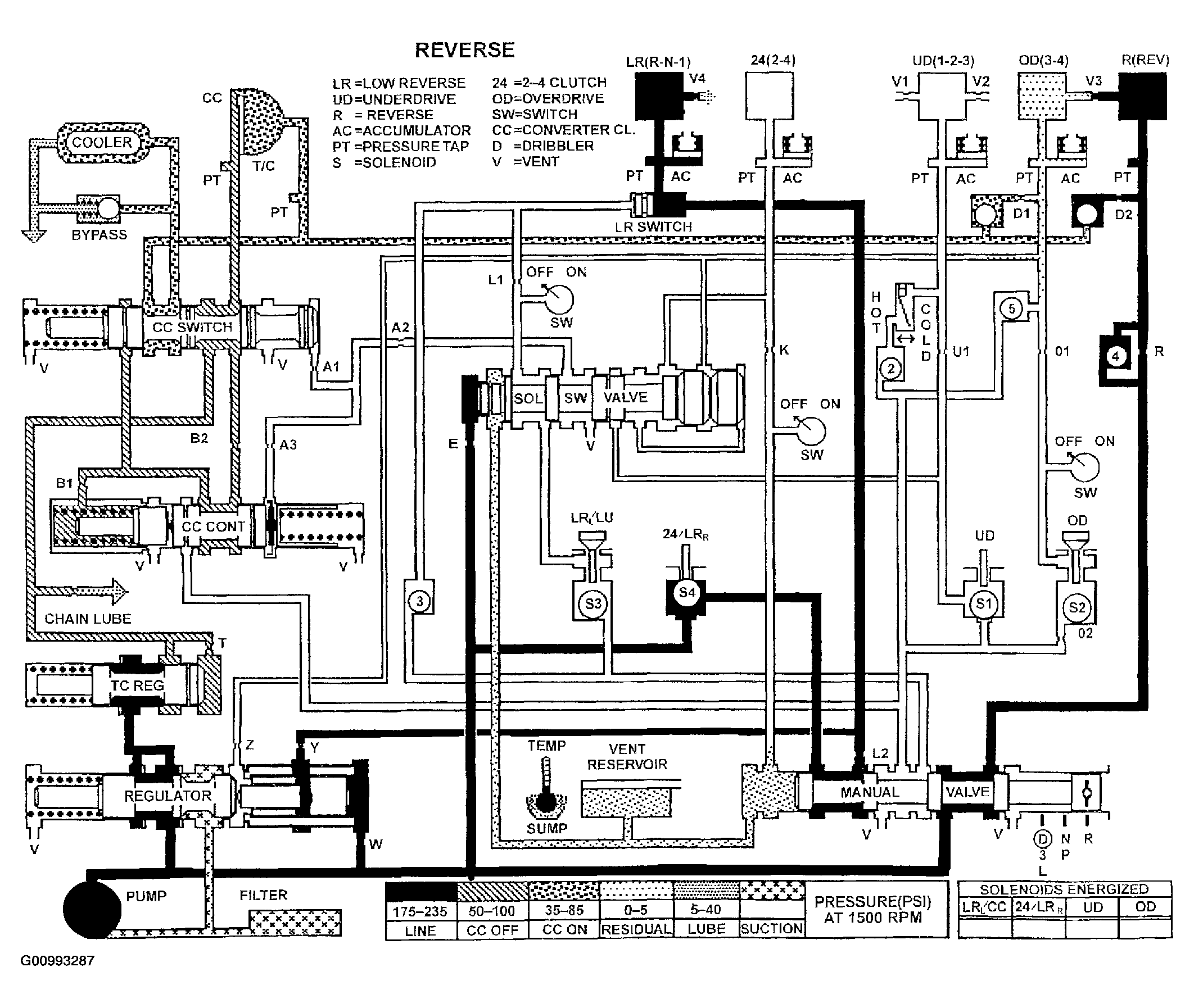

Fig 3: Reverse

Courtesy of DAIMLERCHRYSLER CORP.

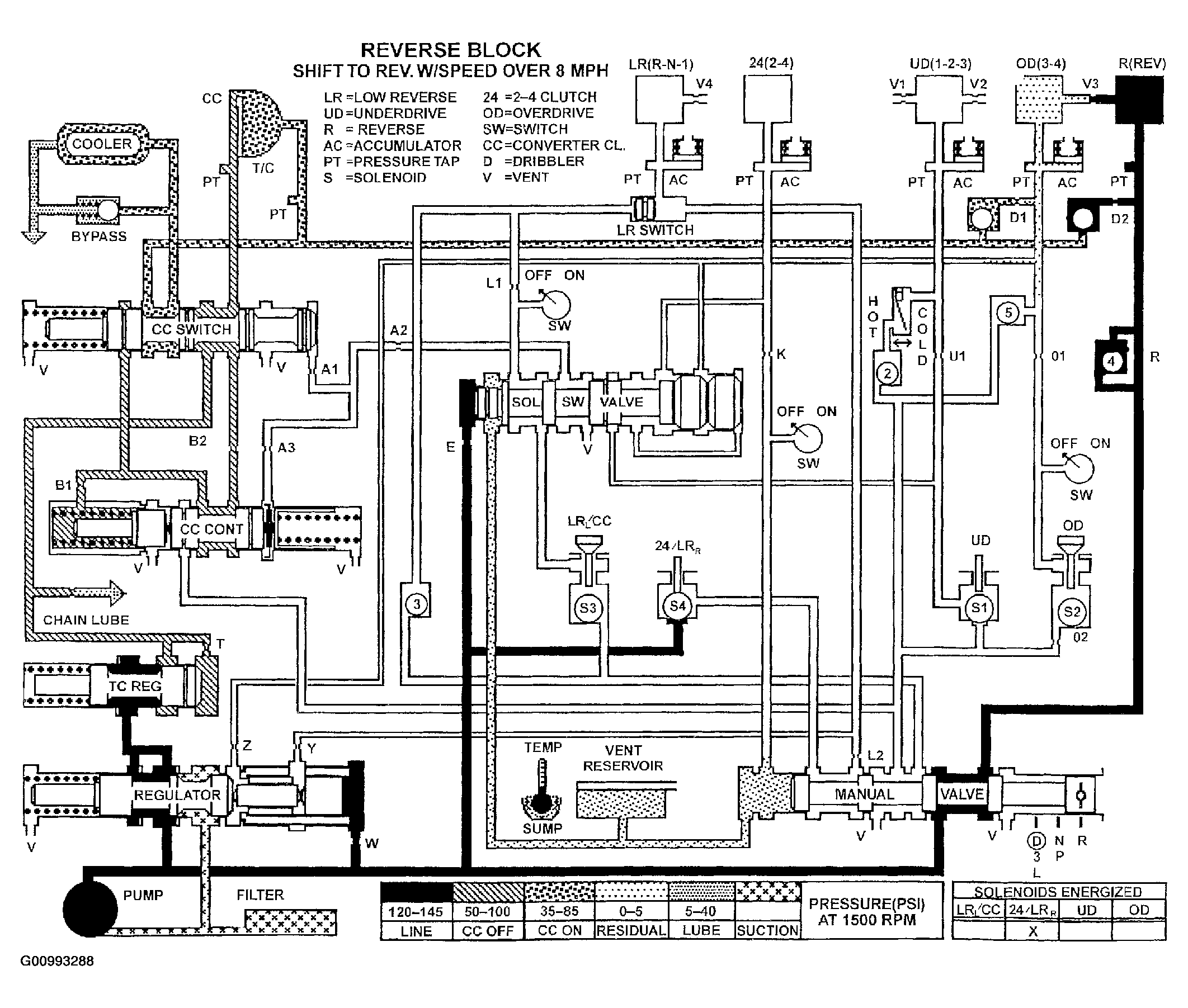

Fig 4: Reverse Block (Shift to Reverse W/Speed Over 8 mph)

Courtesy of DAIMLERCHRYSLER CORP.

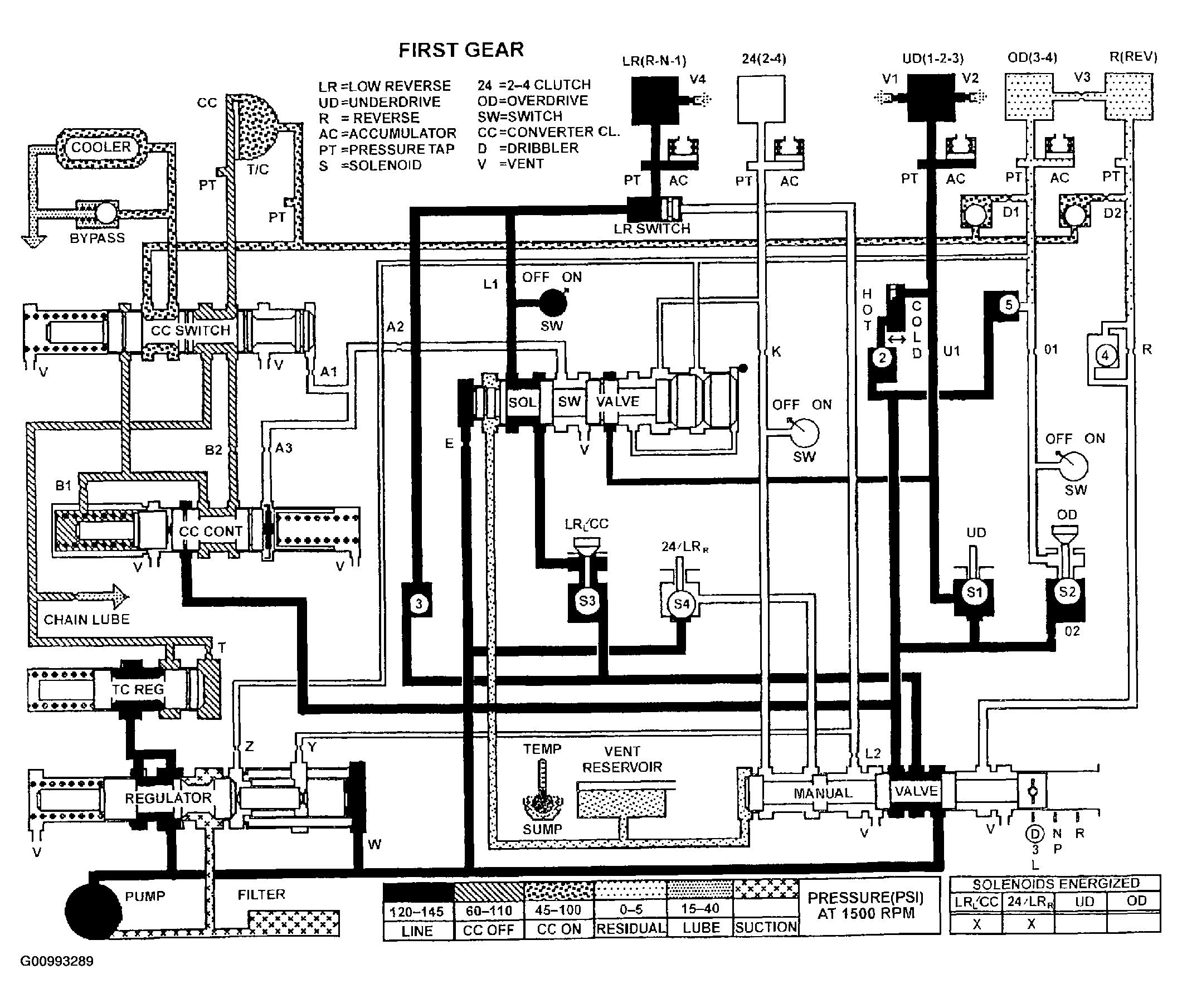

Fig 5: First Gear

Courtesy of DAIMLERCHRYSLER CORP.

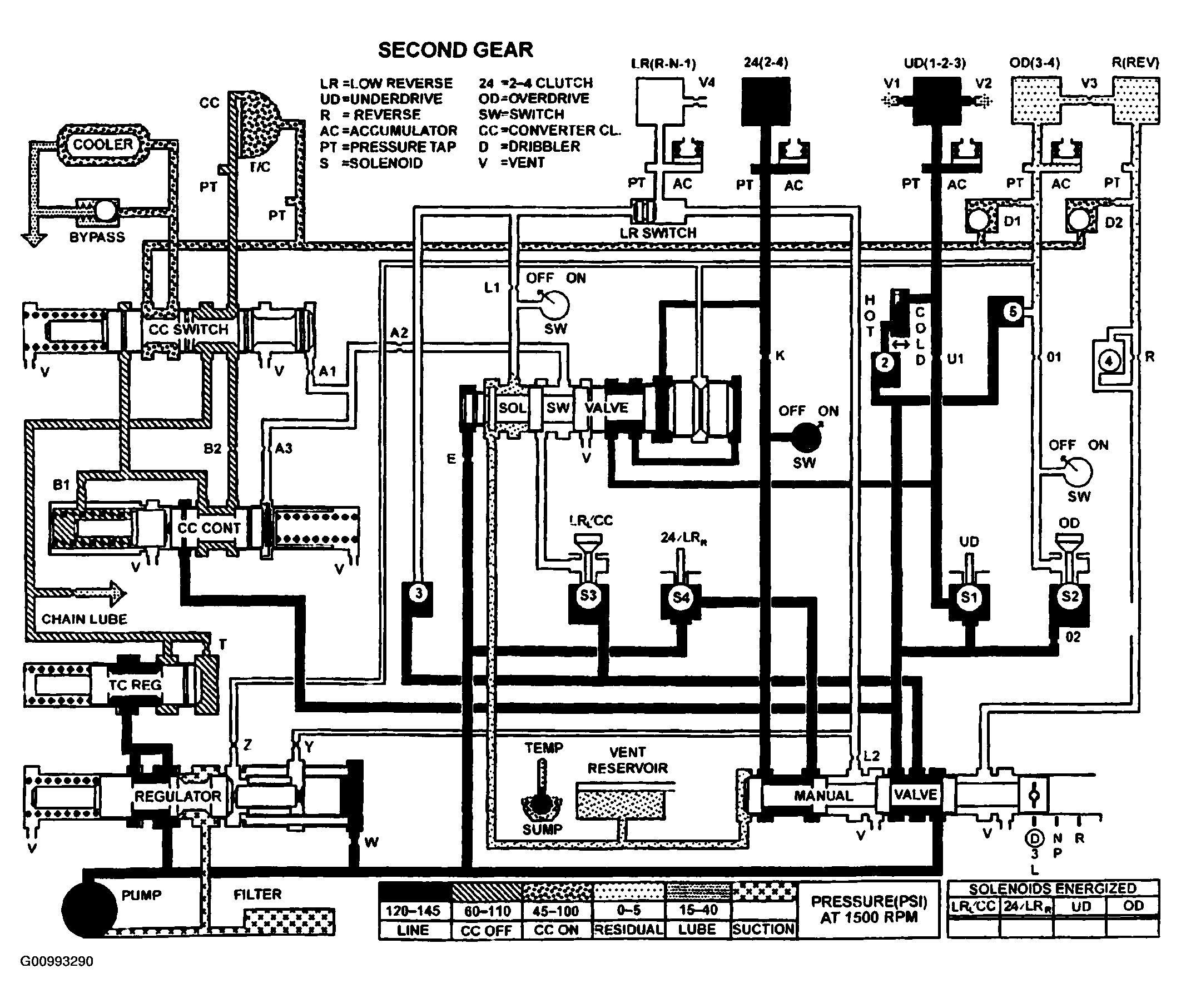

Fig 6: Second Gear

Courtesy of DAIMLERCHRYSLER CORP.

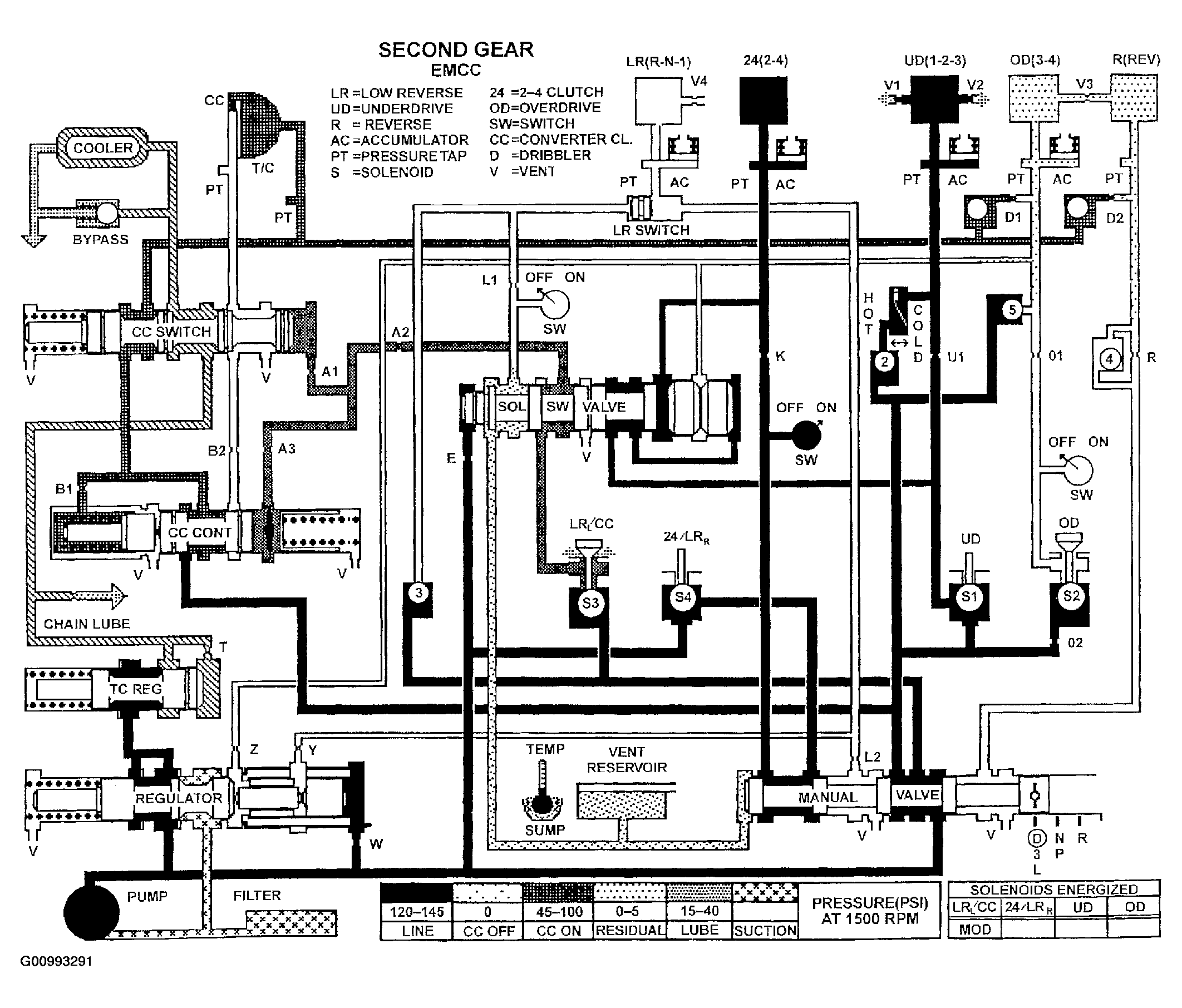

Fig 7: Second Gear (EMCC)

Courtesy of DAIMLERCHRYSLER CORP.

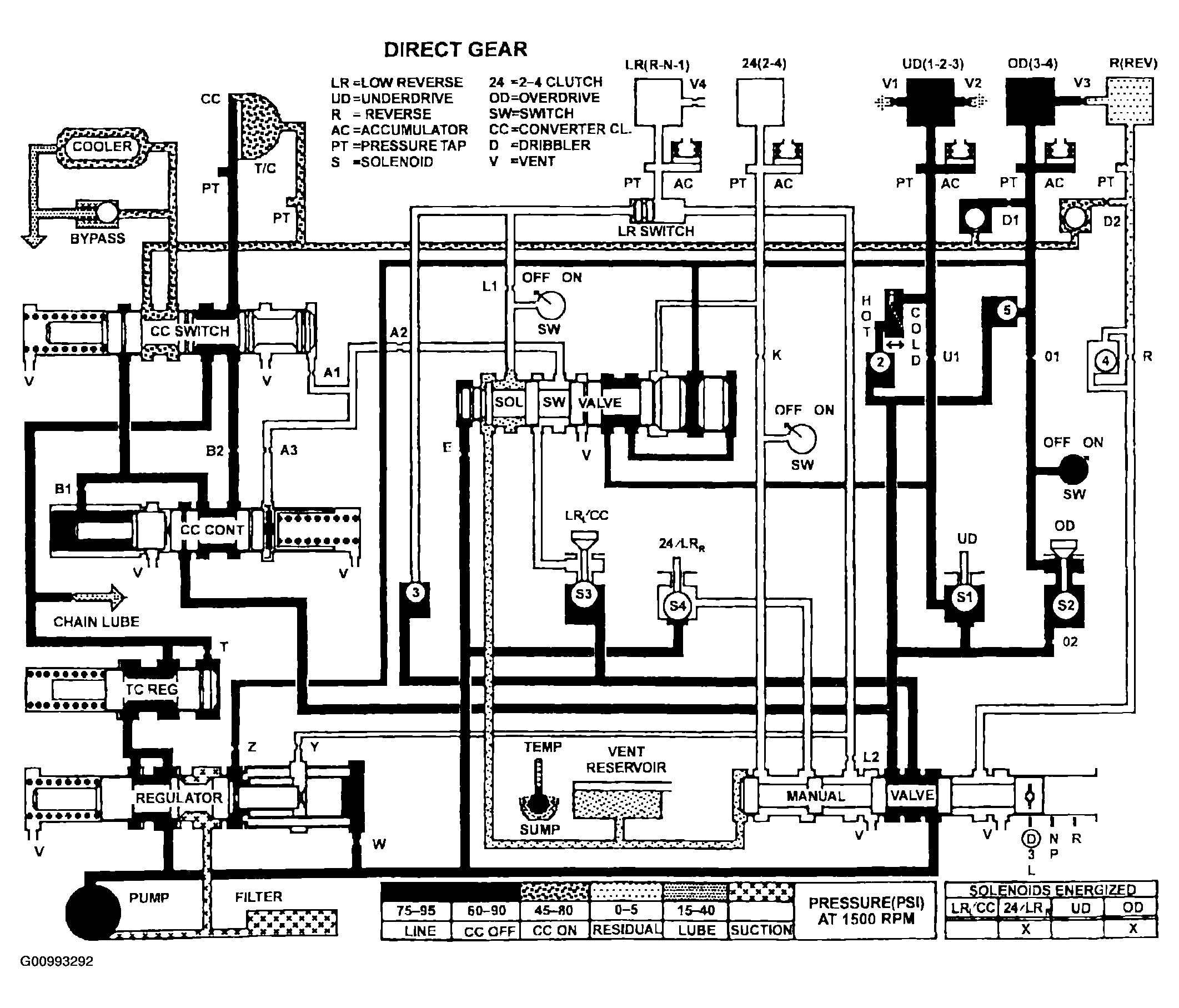

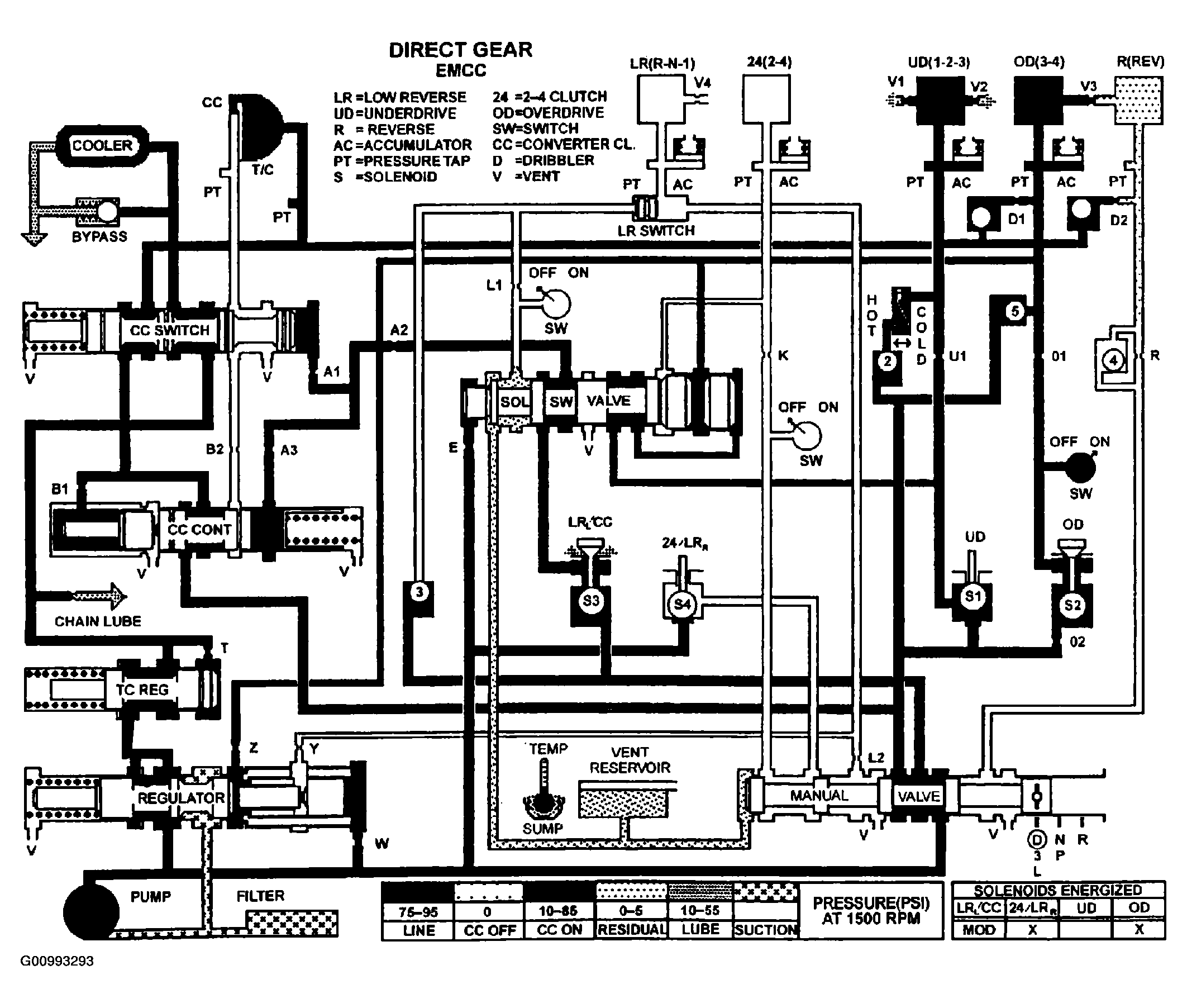

Fig 8: Direct Gear

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Direct Gear (EMCC)

Courtesy of DAIMLERCHRYSLER CORP.

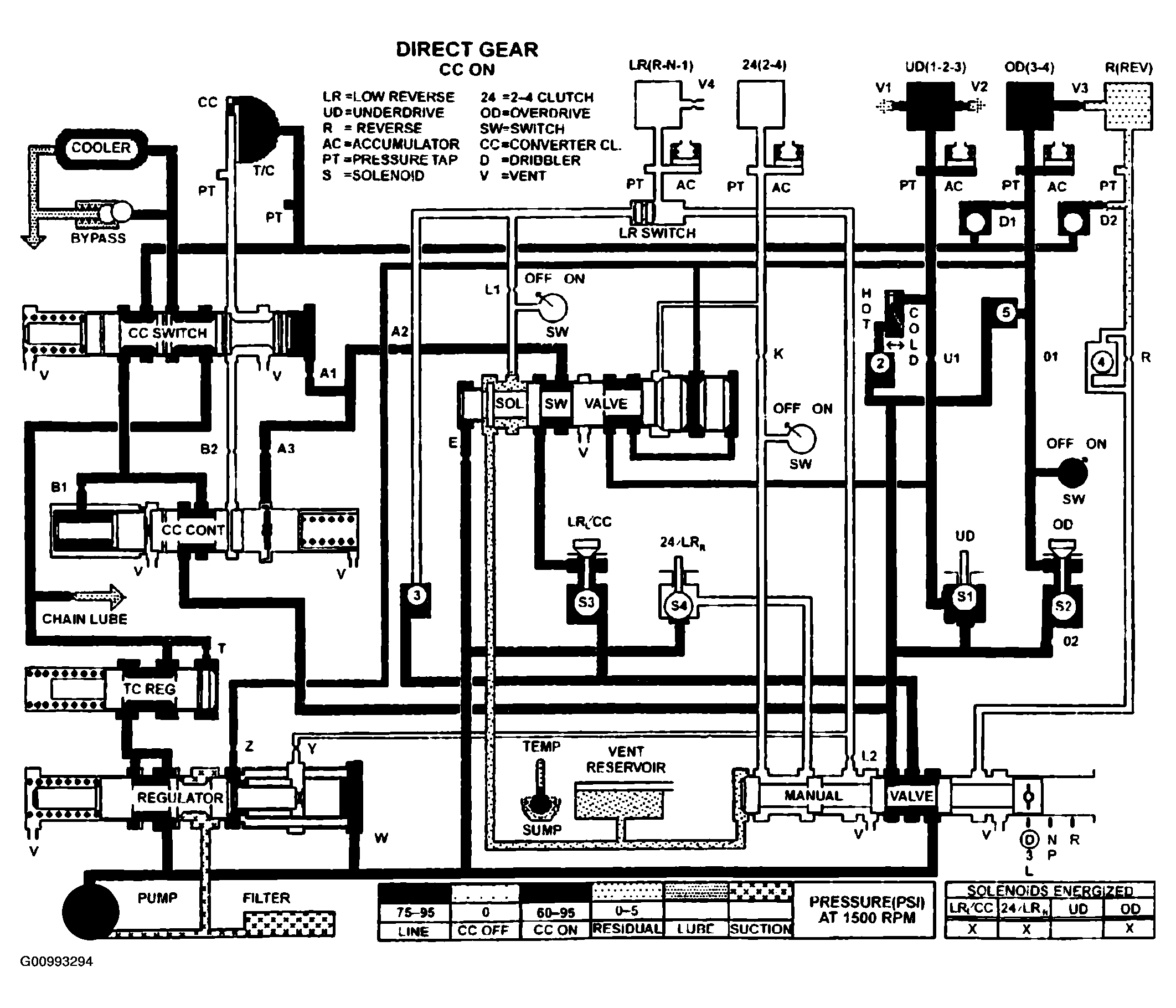

Fig 10: Direct Gear (CC On)

Courtesy of DAIMLERCHRYSLER CORP.

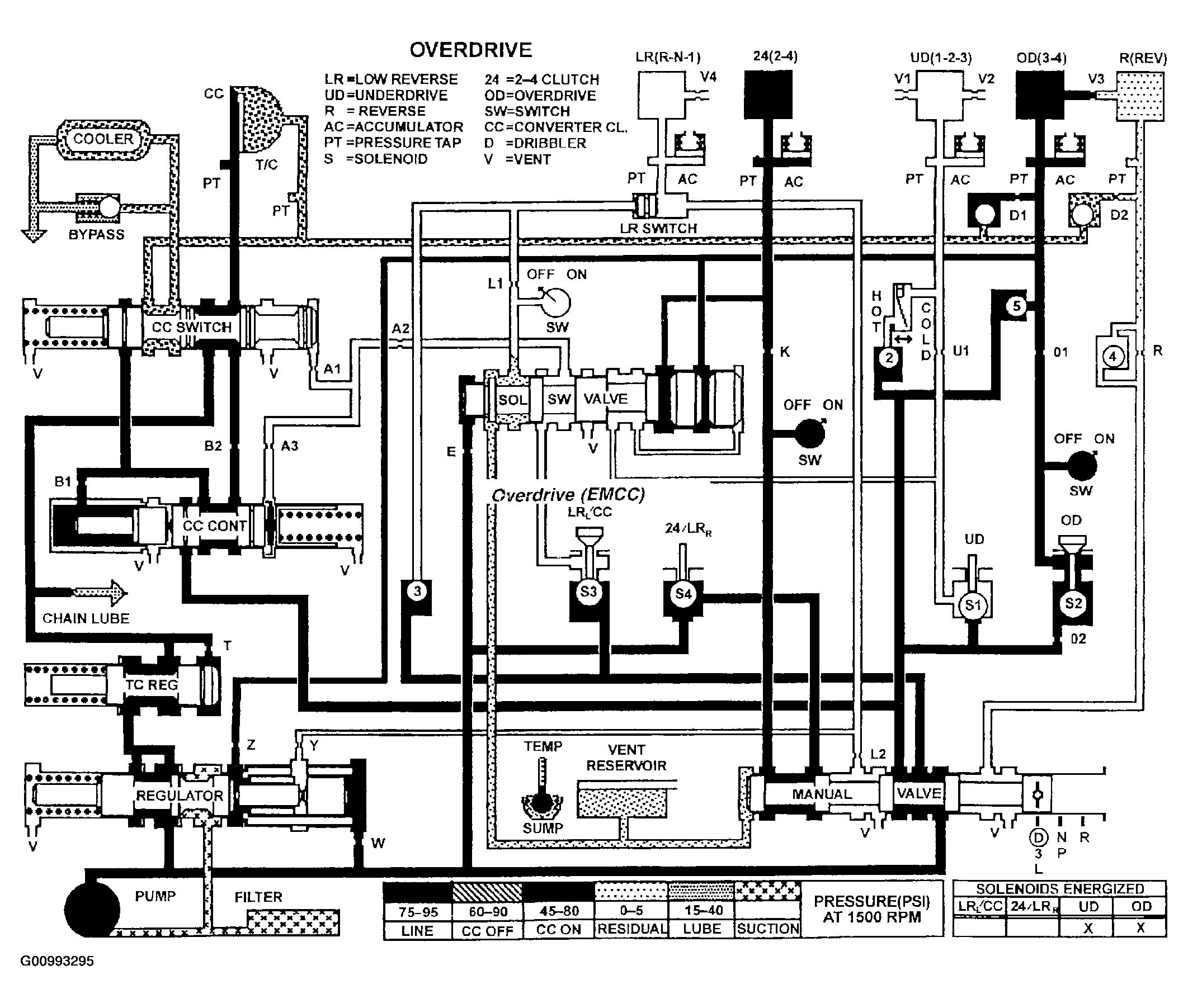

Fig 11: Overdrive

Courtesy of DAIMLERCHRYSLER CORP.

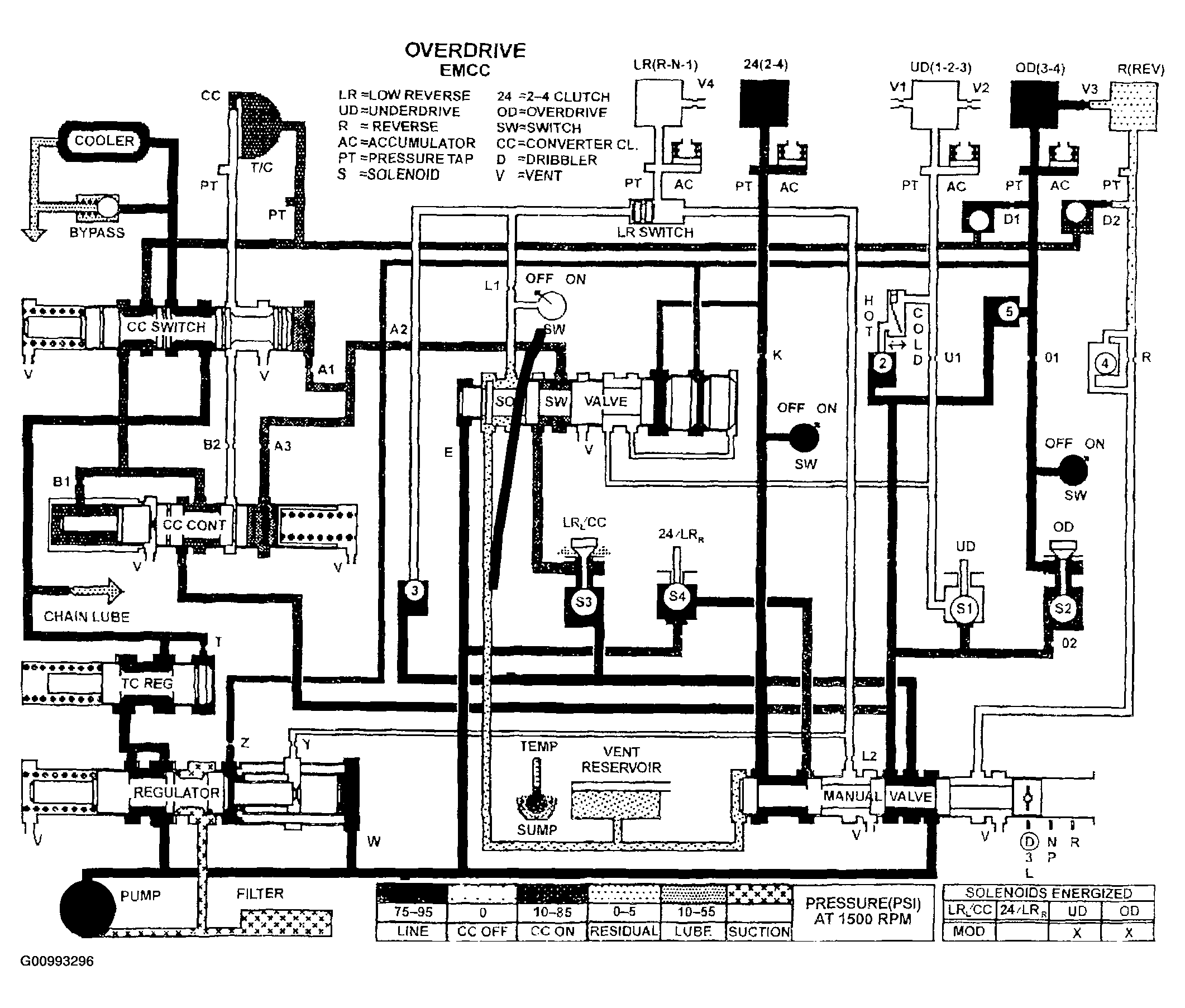

Fig 12: Overdrive (EMCC)

Courtesy of DAIMLERCHRYSLER CORP.

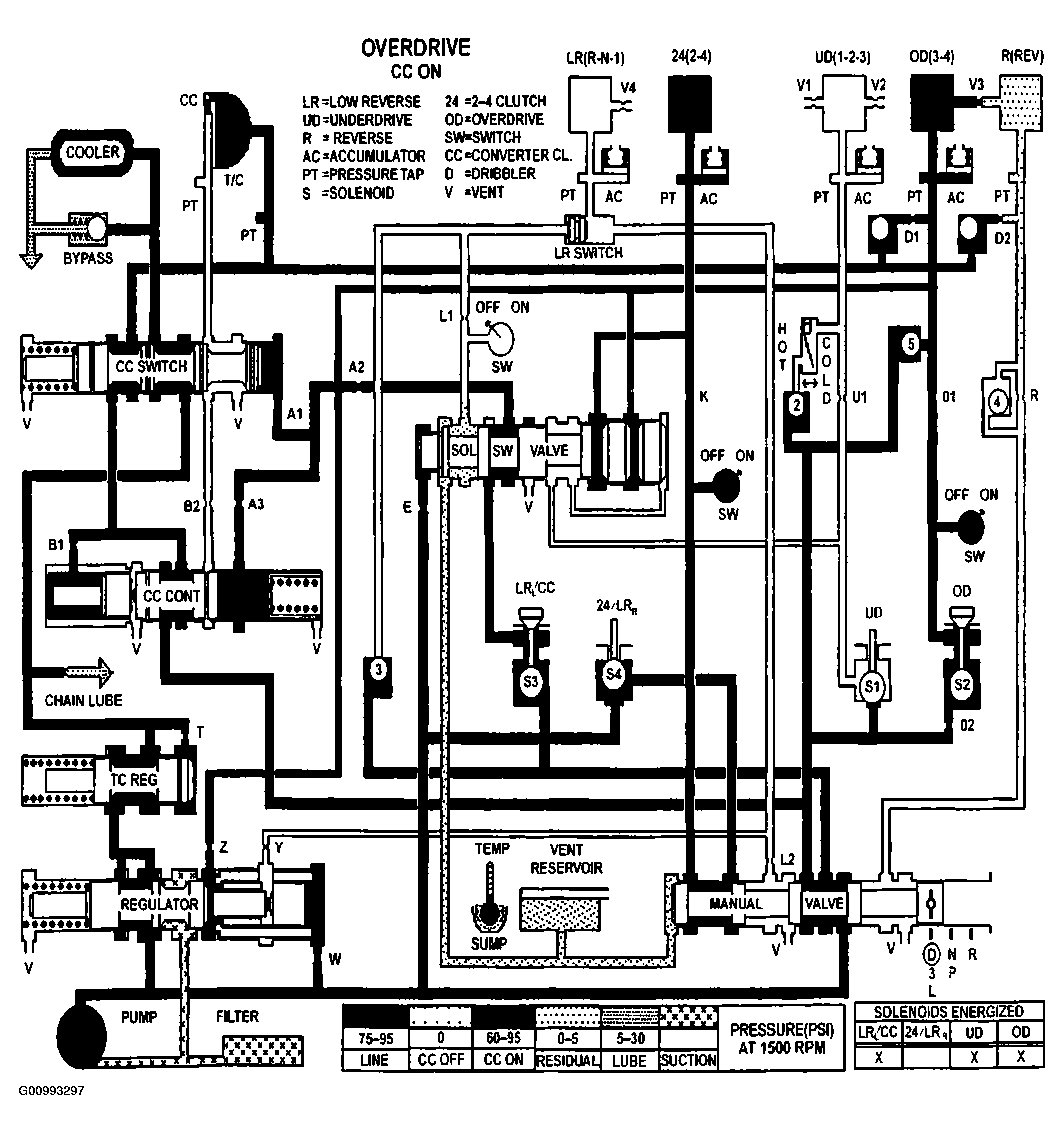

Fig 13: Overdrive (CC On)

Courtesy of DAIMLERCHRYSLER CORP.
