Low-Reverse Clutch Pressure Test

  1. Remove pressure tap plug and install pressure gauge in low-reverse clutch pressure tap. See Fig 1.
  2. Start engine and place gearshift lever in "L" position. Allowing front wheels to rotate, accelerate until vehicle speed indicates 20 MPH.
  3. Low-reverse clutch pressure should be 115-145 psi (8.0-10.1 kg/cm2 ). This pressure test checks oil pump output, pressure regulation and low-reverse clutch hydraulic circuit and shift schedule. Remove pressure gauge. Install and tighten pressure tap plug to 53 INCH lbs. (6.0 N.m).

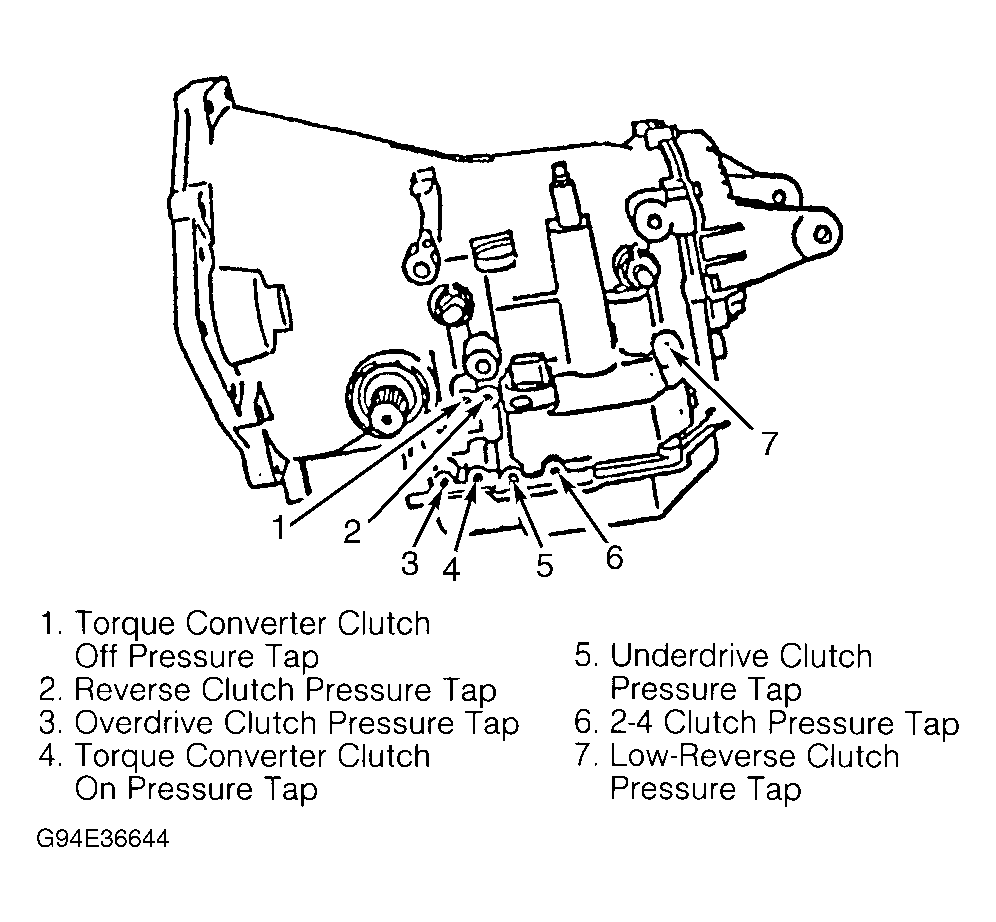

Fig 1: Identifying Pressure Tap Locations
G94E36644Courtesy of CHRYSLER CORP.
