Recirculation Door Actuator Connector End View

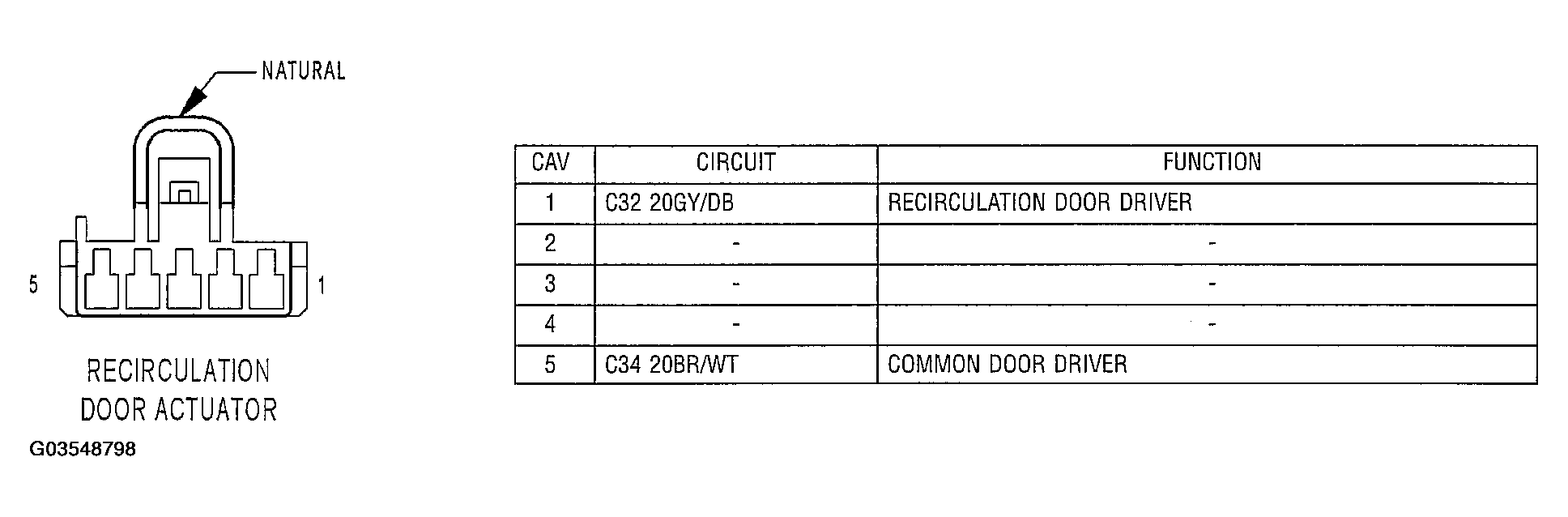

Fig 1: Recirculation Door Actuator

G03548798

Courtesy of CHRYSLER GROUP, LLC
