Power Amplifier Connector End View (C2)

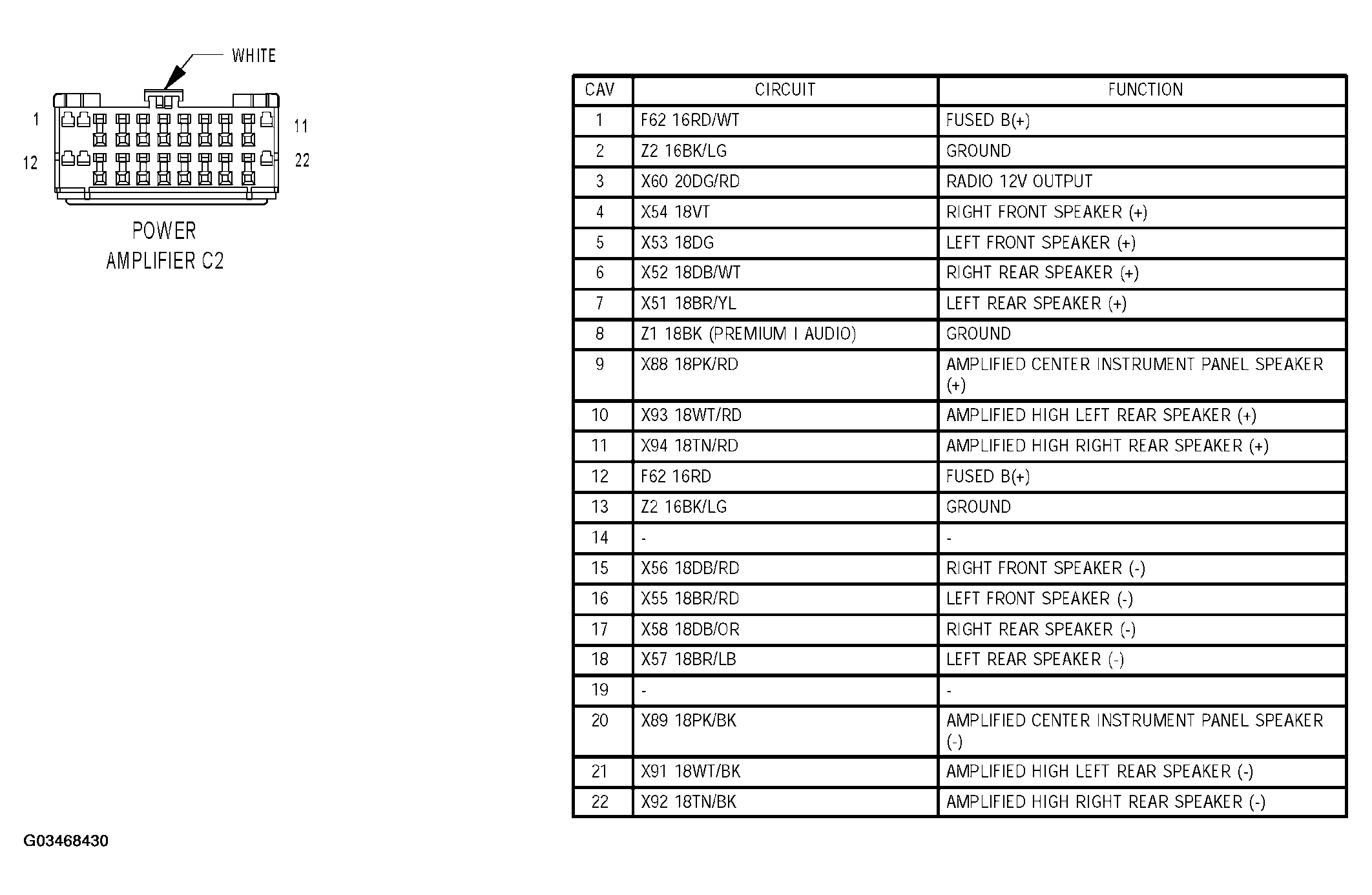

Fig 1: Power Amplifier Connector End View (C2)

G03468430

Courtesy of CHRYSLER GROUP, LLC
