Power Amplifier C2 Connector End View

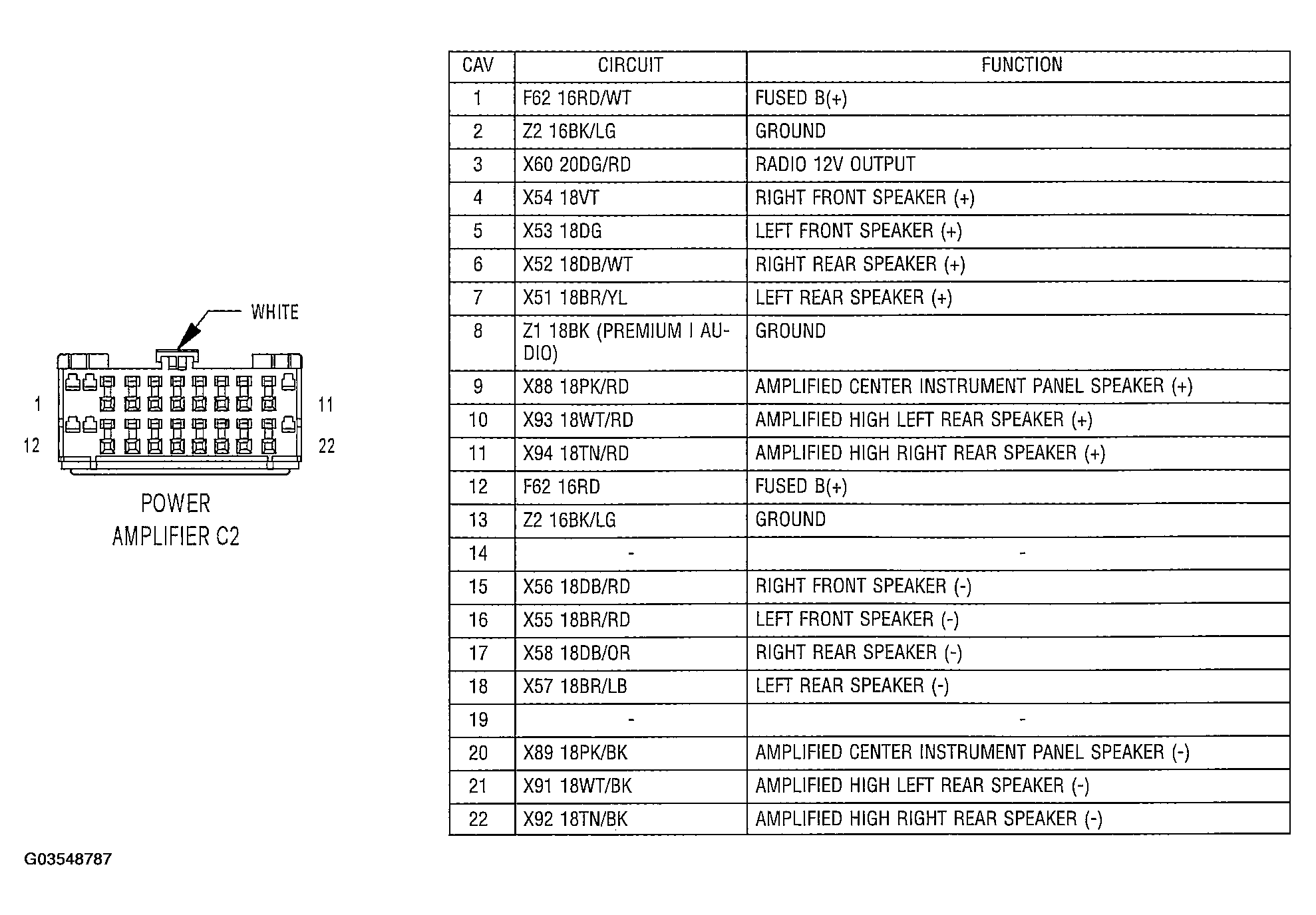

Fig 1: Power Amplifier C2

G03548787

Courtesy of CHRYSLER GROUP, LLC
