Power Amplifier C1 Connector End View

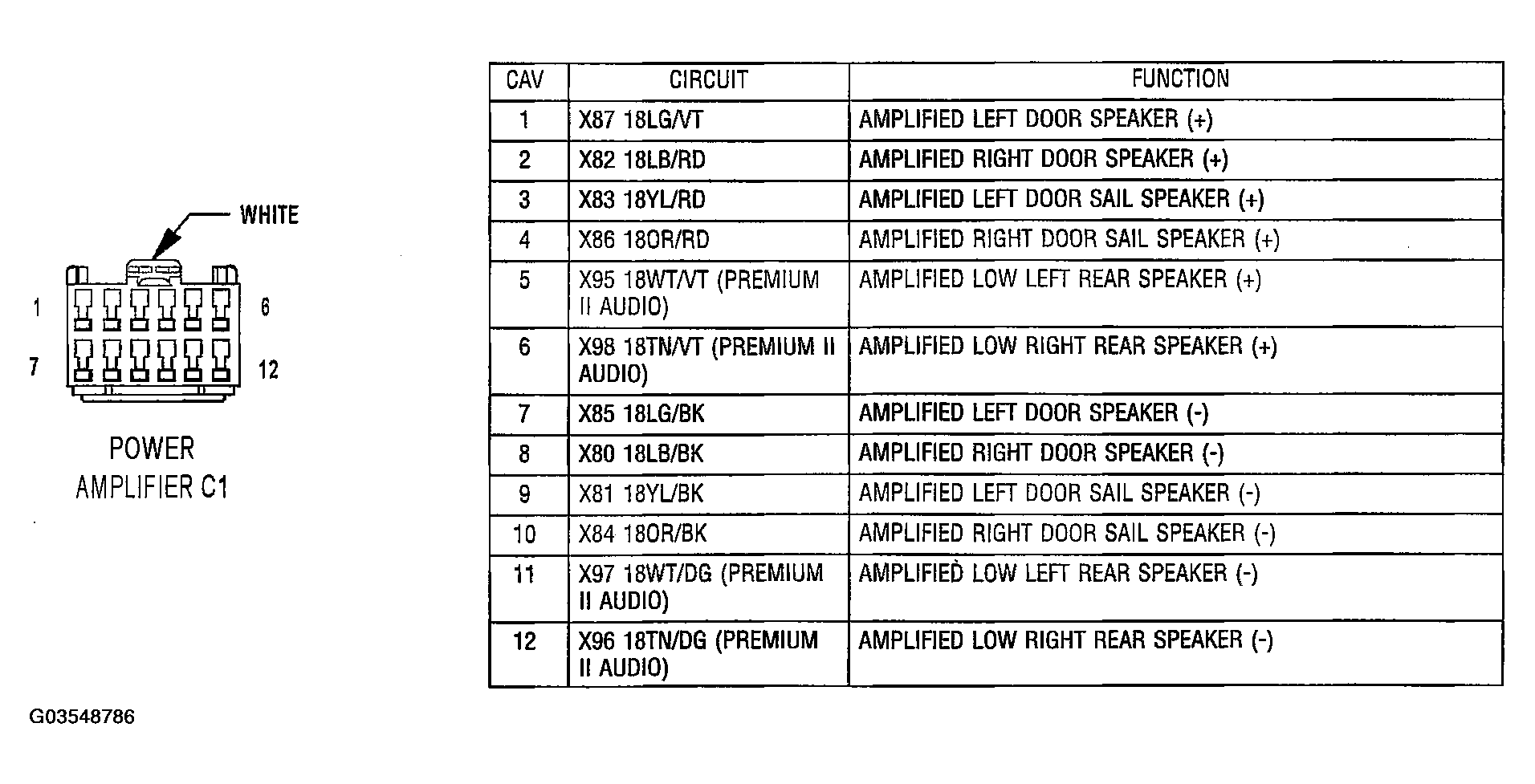

Fig 1: Power Amplifier C1

G03548786

Courtesy of CHRYSLER GROUP, LLC
